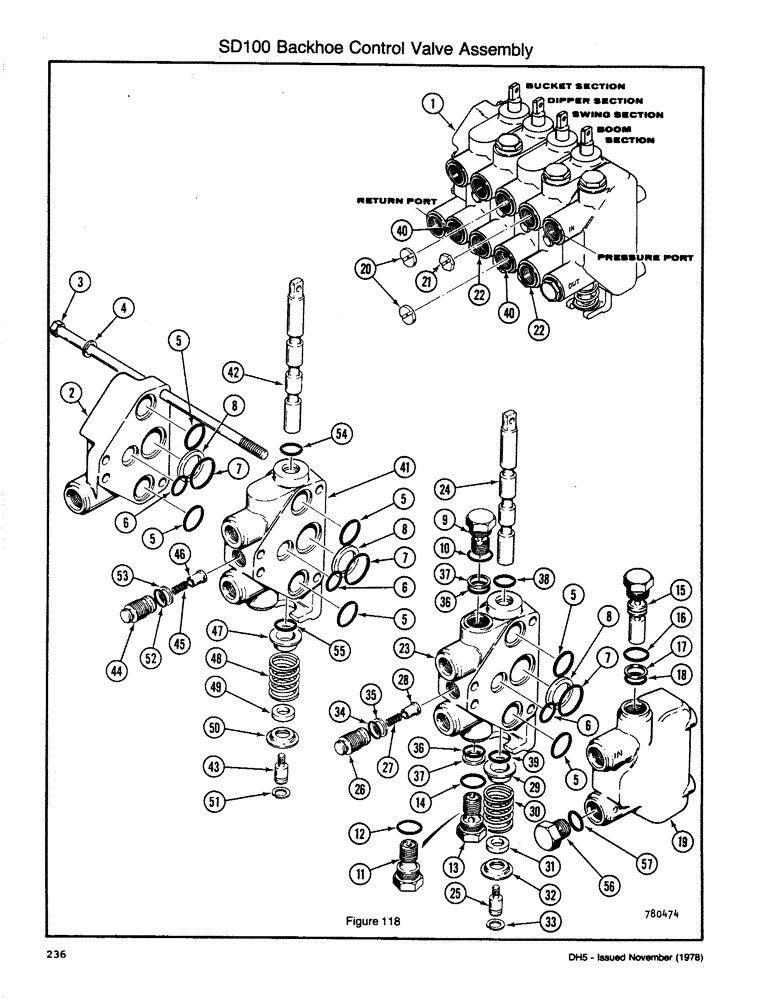

Запчасти Case DH5 (236) - SD100 BACKHOE CONTROL VALVE ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

H588566

VALVE

- Backhoe Control

1шт.

2

H52803

PLATE ASSY.

OUTLET SECTION - Valve

1шт.

3

H52811

BOLT

BOLT - Section Retaining

4шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

H52969

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

KIT - Seal Repair (Section to Section)

1шт.

5

H745752

O-RING

SEAL - O-Ring (Medium)

10шт.

6

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

SEAL - O-Ring (Small)

5шт.

7

A32180

O-RING,0.103" Thk x 1.174" ID, -123, Cl 5, 75 Duro

SEAL - O-Ring (Large)

5шт.

8

H210849

WASHER

- Backup

5шт.

H351791

VALVE

- Relief, 3000 PSI (Dipper and Boom Section - top)

2шт.

9

NSS

NOT SOLD SEPARAT

BODY - Relief Valve

1шт.

10

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - O-Ring

1шт.

11

H52837

PLUG

- Dipper Section

1шт.

12

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - O-Ring

1шт.

H351791

VALVE

- Relief, 3000 PSI (Boom Section - Bottom)

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - Relief

1шт.

14

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - O-Ring

1шт.

F88054

VALVE

- Relief, 2000 PSI (Inlet and Outlet Section)

1шт.

15

NSS

NOT SOLD SEPARAT

BODY - Relief

1шт.

H226415

SEAL ASSY.

KIT - Seal Repair

1шт.

16

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - O-Ring (Large)

1шт.

17

G32626

RING

WASHER - Backup

1шт.

18

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL - O-Ring (Small)

1шт.

19

H52852

PLATE ASSY.

INLET AND OUTLET SECTION

1шт.

20

H60178

PLATE ASSY.

ORIFICE - Swing Section

2шт.

21

H52878

FITTING

ORIFICE - Boom Section, Upper

1шт.

22

H513630

SECTOR

BOOM AND DIPPER ARM SECTION - Valve

2шт.

23

NSS

NOT SOLD SEPARAT

BODY - Valve Section

1шт.

24

NSS

NOT SOLD SEPARAT

SPOOL - Valve

1шт.

25

NSS

NOT SOLD SEPARAT

END - Spool

1шт.

26

H52886

BODY

CHECK - Lift

1шт.

27

H47514

SPRING

- Check

1шт.

28

H52894

PLUNGER

- Check

1шт.

29

H52902

CAP

RETAINER - Spring (Deep)

1шт.

30

H52928

VALVE SPRING

SPRING - Spool Return

1шт.

31

H47555

WASHER

SPACER - Spring

1шт.

32

F59117

RETAINER

- Spring (Shallow)

1шт.

33

A27804

CIRCLIP,#50, .392" Dia, E-Type

Ring, Retaining, #50, .392" Dia, E-Type

1шт.

H52985

GASKET KIT

KIT - Seal Repair

1шт.

34

16905

O-RING,0.551" ID x 0.07" Width

- O-Ring, Check

1шт.

35

H746883

WASHER

- Backup, Check

1шт.

36

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - O-Ring, Relief Valves and Plug

2шт.

37

A35698

BACK-UP RING

WASHER - Backup, Relief Valves and Plug

2шт.

38

F37887

O-RING

SEAL - O-Ring, Spool (Upper)

1шт.

39

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL - O-Ring, Spool (Lower)

1шт.

40

H513648

VALVE

BUCKET AND SWING SECTION

2шт.

41

NSS

NOT SOLD SEPARAT

BODY - Valve Section

1шт.

42

NSS

NOT SOLD SEPARAT

SPOOL - Valve Section

1шт.

43

NSS

NOT SOLD SEPARAT

END - Valve Spool

1шт.

44

H52886

BODY

CHECK - Lift

1шт.

45

H47514

SPRING

- Check

1шт.

46

H52894

PLUNGER

- Check

1шт.

47

H52902

CAP

RETAINER - Spring (Deep)

1шт.

48

H52928

VALVE SPRING

SPRING - Spool Return

1шт.

49

H47555

WASHER

SPACER - Spring

1шт.

50

F59117

RETAINER

- Spring (Shallow)

1шт.

51

A27804

CIRCLIP,#50, .392" Dia, E-Type

Ring, Retaining, #50, .392" Dia, E-Type

1шт.

H52977

GASKET KIT

KIT - Seal Repair

1шт.

52

16905

O-RING,0.551" ID x 0.07" Width

- O-Ring, Check

1шт.

53

H746883

WASHER

- Backup, Check

1шт.

54

F37887

O-RING

SEAL - O-Ring, Spool (Upper)

1шт.

55

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL - O-Ring, Spool (Lower)

1шт.

56

86512512

PLUG,7/8" - 14 ORB

1шт.

57

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - O-Ring

1шт.
