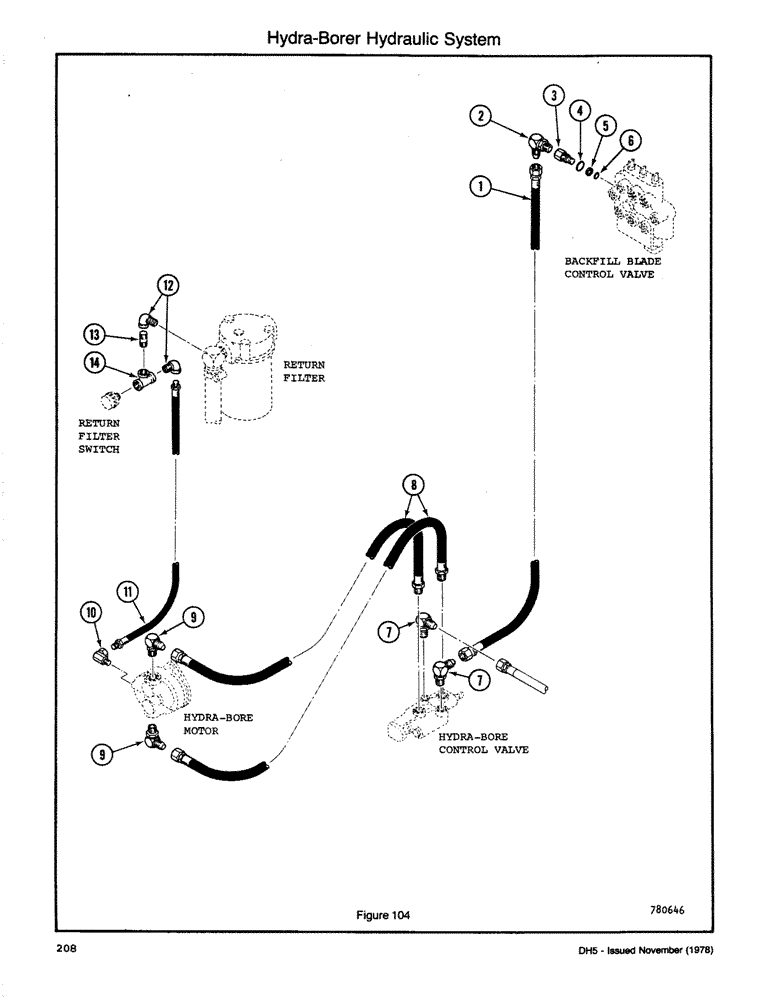

Запчасти Case DH5 (208) - HYDRA-BORER HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

H350918

HOSE

- 1/2 x 100 (7/8 ORB x 7/8 JIC M)

1шт.

2

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj 90º, 7/8"-14, 37º x 7/8"-14, O-Ring

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

(7/8)

1шт.

D61608

SLEEVE

ADAPTER - Pressure Beyond

1шт.

3

NSS

NOT SOLD SEPARAT

BODY

1шт.

4

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

5

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

WASHER - Backup

1шт.

6

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

7

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj 90º, 7/8"-14, 37º x 7/8"-14, O-Ring

2шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

(7/8)

1шт.

8

H257113

HYDRAULIC HOSE,12.70 mm ID x 1600.20 mm, SAE 100R1

(7/8 ORB x 7/8 JIC Fm Swv) 12.70 mm ID x 1600.20 mm, SAE 100R1

2шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

(7/8)

1шт.

9

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj 90º, 7/8"-14, 37º x 7/8"-14, O-Ring

2шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

(7/8)

1шт.

10

218-933

ELBOW,90 Degree, 1/8" NPTF Male x 1/8" NPSM Fem Sw

- 90 degree

1шт.

11

H88906

HOSE - 1/4 x 63 (1/8 NPSM Swv x 1/4 MP)

1шт.

12

221-412

ELBOW,90 Degree, 1/4"-27, NPT

- 90 degree Street

2шт.

13

221-130

PIPE,Nipple, 1/4" NPT x 7/8"

NIPPLE (1/4 x 7/8)

1шт.

14

221-422

TEE,Pipe, 1/4" NPT

(1/4)

1шт.
