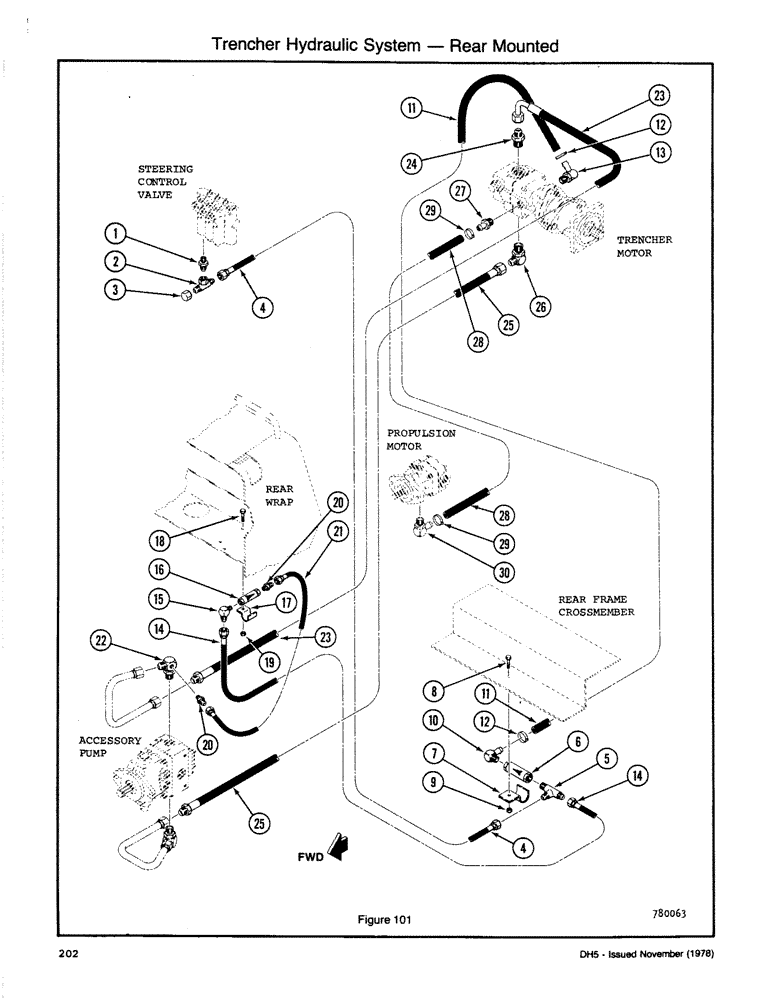

Запчасти Case DH5 (202) - TRENCHER HYDRAULIC SYSTEM - REAR MOUNTED (35) - HYDRAULIC SYSTEMS

1

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., 7/8"-14, 37º x 3/4"-16, O-Ring

1шт.

2

218-842

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Br

(7/8 JIC M & 7/8 JIC M & 7/8 JIC Fm Swv)

1шт.

3

218-756

CAP,37 Degree, 7/8"-14

Tube 37º, 7/8"-14

1шт.

4

H171009

HYDRAULIC HOSE,7.62 mm ID x 838.00 mm, SAE 100R1

7.62 mm ID x 838.00 mm, SAE 100R1

1шт.

5

218-1123

TEE,1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF Run

(3/4 MP & 7/8 JIC M & 7/8 JIC M)

1шт.

6

H637132

VALVE

- Check (180 PSI)

1шт.

7

H196907

CLAMP

1шт.

8

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

9

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT NC HH C/L (5/16)

1шт.

10

217-135

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

90 degree (3/4 MP & 3/4 Hose)

1шт.

11

H307769

HOSE ASSY.

HOSE (3/4 x 42)

1шт.

12

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - Hose (#12)

2шт.

13

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW 90 degree Adj (1 1/16 ORB & 3/4 Hose)

1шт.

14

H246066

HOSE ASSY.

HOSE (1/2 x 88) (7/8 JIC Fm Swv)

1шт.

15

218-1057

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/8"-18, NPTF

(3/8 MP & 7/8 JIC Fm Swv)

1шт.

16

H637124

VALVE, CHECK

VALVE - Check (6 PSI)

1шт.

17

H247965

CLAMP

1шт.

18

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

19

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT NC HH C/L (5/16)

1шт.

20

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

CONNECTOR (3/8 MP & 3/4 JIC M) machines may be equipped with either fitting

2шт.

218-848

TEE,37 Degree, 1 5/16"-12 x 1 5/8"-12 x1 5/16"-12 Fem Sw Br

ELBOW 90 degree (3/8 MP & 3/4 JIC M) machines may be equipped with either fitting

2шт.

21

H364497

HOSE,0.38" ID x 22.00", SAE 100R2A

1шт.

22

H364489

ELBOW

- Special

1шт.

23

H349704

HOSE (3/4 x 85) (1 1/16 JIC M & 90 degree 3/4 OD Bent Tube)

1шт.

24

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR (1 5/16 ORB & 1 1/16 JIC M)

1шт.

25

H349712

HOSE (3/4 x 75) (1 1/16 JIC M & JIC Fm Swv)

1шт.

26

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90 degree Adj (1 5/16 ORB & 1 1/16 JIC M)

1шт.

27

217-177

FITTING,3/4" Hose Barb x 1-1/16" - 12 Male ORB

CONNECTOR (1 1/16 ORB & 3/4 Hose)

1шт.

28

H316349

HOSE

(3/4 x 69)

1шт.

29

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - Hose (#12)

2шт.

30

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90 degree Adj (1 5/16 ORB & 1 1/16 JIC M)

1шт.
