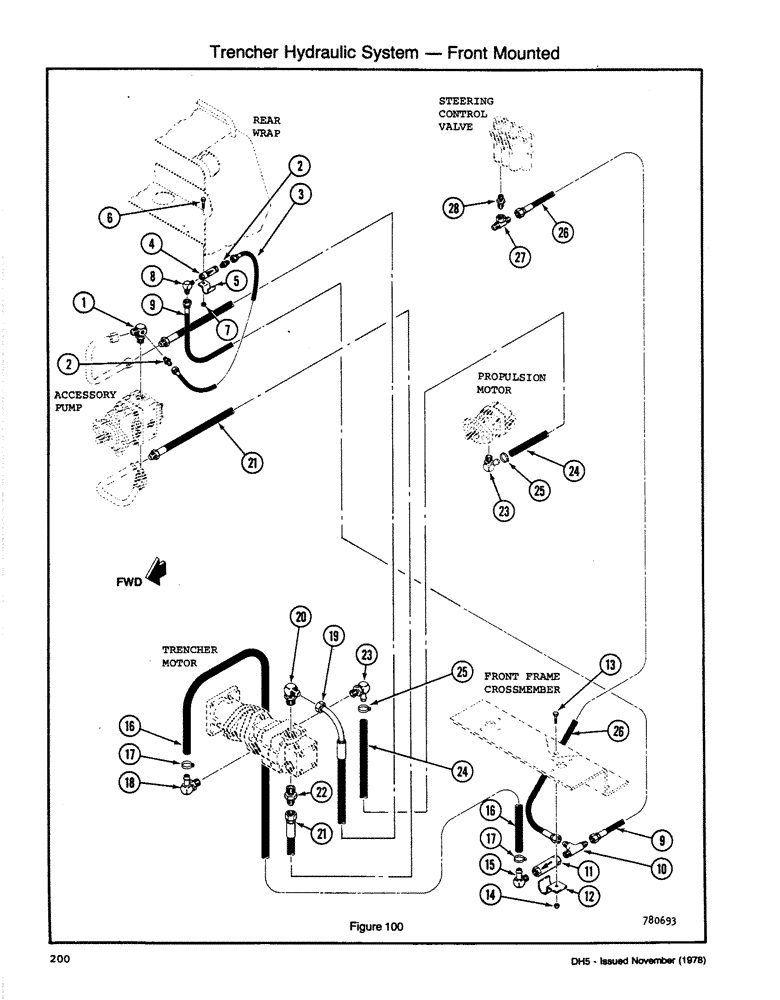

Запчасти Case DH5 (200) - TRENCHER HYDRAULIC SYSTEM - FRONT MOUNTED (35) - HYDRAULIC SYSTEMS

1

H364489

ELBOW

- Special

1шт.

2

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

CONNECTOR (3/8 MP & 3/4 JIC M) machines may be equipped with either fitting

2шт.

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

90 degree (3/8 MP & 3/4 JIC M)machines may be equipped with either fitting

2шт.

3

H364497

HOSE,0.38" ID x 22.00", SAE 100R2A

1шт.

4

H637124

VALVE, CHECK

VALVE - Check (6 PSI)

1шт.

5

H247965

CLAMP

1шт.

6

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

7

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT NC HH C/L (5/16)

1шт.

8

218-1057

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/8"-18, NPTF

(3/8 MP & 7/8 JIC M)

1шт.

9

H276105

HYDRAULIC HOSE,12.70 mm ID x 1473.20 mm, SAE 100R1

(7/8 JIC Fm Swv) 12.70 mm ID x 1473.20 mm, SAE 100R1

1шт.

10

218-1128

TEE,7/8"-14, 37 Degree x 3/4"-14, NPTF Run

(3/4 MP & 7/8 JIC M & 7/8 JIC M)

1шт.

11

H637132

VALVE

- Check (180 PSI)

1шт.

12

H196907

CLAMP

1шт.

13

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

14

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT NC HH C/L (5/16)

1шт.

15

218-135

ELBOW 90 degree (3/4 MP & 3/4 Hose)

1шт.

16

H309088

HOSE

(3/4 x 35)

1шт.

17

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - Hose (#12)

2шт.

18

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW 90 degree Adj (1 1/16 ORB & 3/4 Hose)

1шт.

19

H374140

HOSE (3/4 x 86.61[2200 mm]) (1 1/16 JIC Fm Swv & 90 degree 3/4 OD Tube)

1шт.

20

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90 degree Adj (1 5/16 ORB & 1 1/16 JIC M)

1шт.

21

H300723

HOSE (3/4 x 76) (1 1/16 JIC Fm Swv)

1шт.

22

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR (1 5/16 ORB & 1 1/16 JIC M)

1шт.

23

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW 90 degree Adj (1 1/16 ORB & 3/4 Hose)

2шт.

24

H361576

HOSE (3/4 x 140)

1шт.

25

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - Hose (#12)

2шт.

26

H203364

HOSE (1/2 x 120) (7/8 JIC Fm Swv)

1шт.

27

218-842

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Br

(7/8 JIC M & 7/8 JIC M & 7/8 JIC Fm Swv)

1шт.

28

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., 7/8"-14, 37º x 3/4"-16, O-Ring

1шт.
