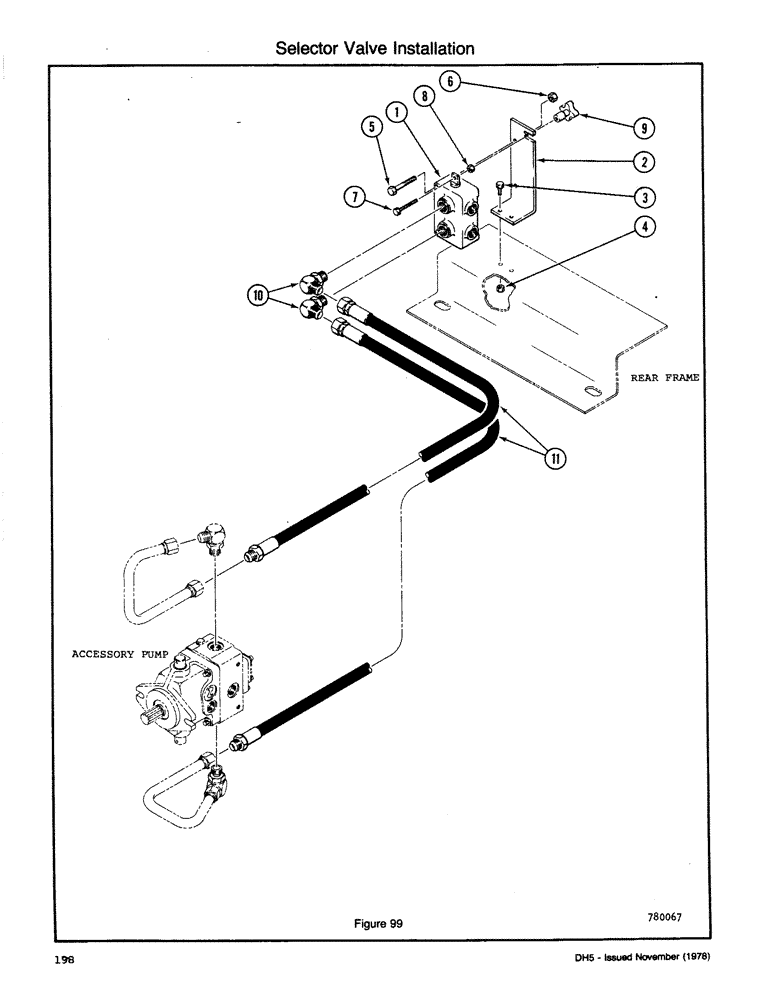

Запчасти Case DH5 (198) - SELECTOR VALVE INSTALLATION (35) - HYDRAULIC SYSTEMS

1

VALVE - Selector (See Fig. 120)

1шт.

2

H355917

BRACKET - Valve Mounting

1шт.

3

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

4

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT NC HH C/L (5/16)

2шт.

5

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

6

230-4216

LOCK NUT,3/8"-16, GA

NUT NC HH C/L (3/8)

2шт.

7

H355982

BOLT

- Special

1шт.

8

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

9

H355966

KNOB

1шт.

10

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º Adj (1 1/16 ORB & 1 1/16 JIC M)

2шт.

11

H259267

HOSE,0.75" ID x 67.00", SAE 100R1A

2шт.
