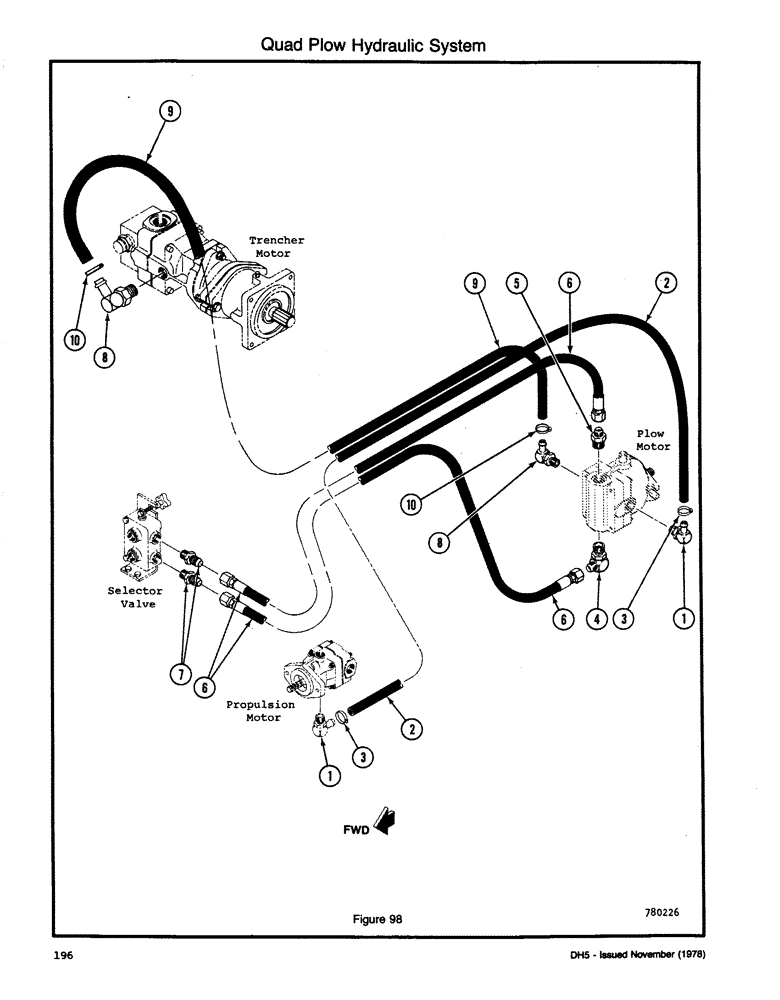

Запчасти Case DH5 (196) - QUAD PLOW HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW 90 degree Adj (1 1/16 ORB & 3/4 Hose)

2шт.

2

H337915

HOSE ASSY.

HOSE (3/4 x 103)

1шт.

3

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - Hose (#12)

2шт.

4

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90 degree Adj (1 5/16 ORB & 1 1/16 JIC M)

1шт.

5

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR (1 5/16 ORB & 1 1/16 JIC M)

1шт.

6

H361501

HOSE

(3/4 x 92) (1 1/16 JIC Fm Swv)

2шт.

7

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR (1 1/16 ORB & 1 1/16 JIC M)

2шт.

8

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW 90 degree Adj (1 1/16 ORB & 3/4 Hose)

2шт.

9

H337915

HOSE ASSY.

HOSE (3/4 x 103)

1шт.

10

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - Hose (#12)

2шт.
