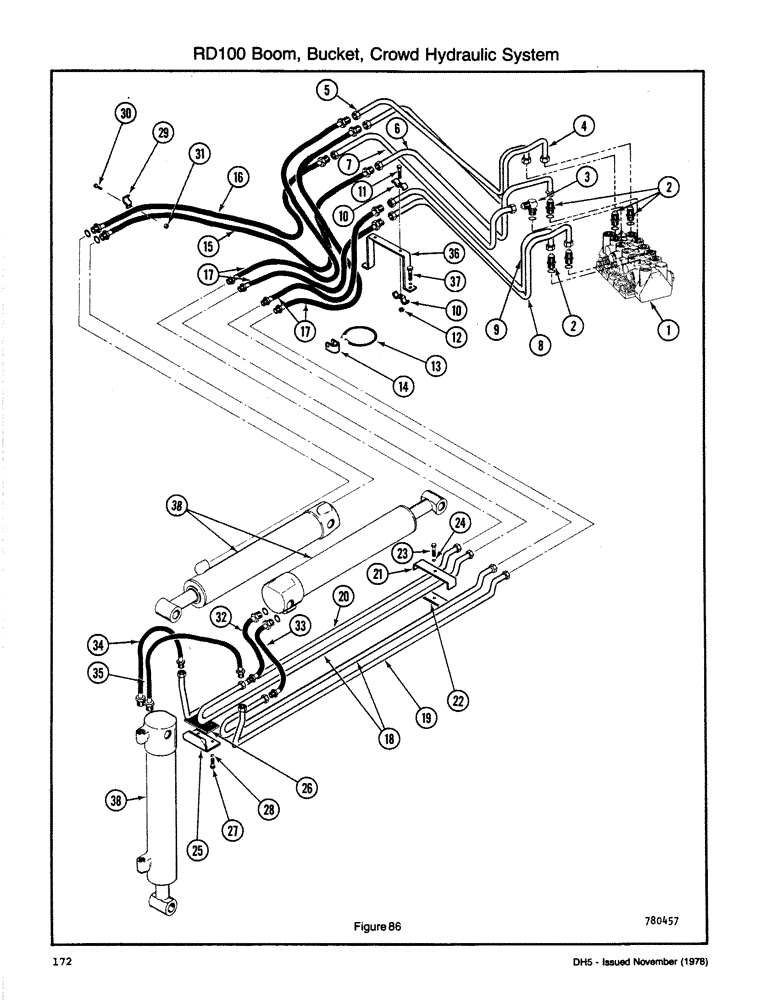

Запчасти Case DH5 (172) - RD100 BOOM, BUCKET, CROWD HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

VALVE - Backhoe Control (See Figure 118)

1шт.

2

218-5859

CONNECTOR

5шт.

3

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

1шт.

4

H582742

TUBE,0.5" OD

ASSEMBLY

1шт.

5

H582759

TUBE,0.5" OD

ASSEMBLY

1шт.

6

H582767

TUBE,0.5" OD

ASSEMBLY

1шт.

7

H582775

TUBE,0.5" OD

ASSEMBLY

1шт.

8

H582734

TUBE,0.5" OD

ASSEMBLY

1шт.

9

H582726

TUBE,0.5" OD

ASSEMBLY

1шт.

10

H59345

CLAMP

- Tube

4шт.

11

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

12

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC Hex C/L (5/16)

2шт.

13

H52548

SPRING

2шт.

14

H52571

CLAMP

- Hose

1шт.

15

H195826

HOSE,0.38" ID x 55.00", SAE 100R1

1шт.

Use H433078 hose and 218-5136 elbow.

1шт.

16

H360412

HOSE,0.38" ID x 75.00", SAE 100R1

with Case cylinders 0.38" ID x 75.00", SAE 100R1

1шт.

16

H195826

HOSE,0.38" ID x 55.00", SAE 100R1

- with Lantex Cylinders 0.38" ID x 55.00", SAE 100R1

1шт.

17

H278994

HYDRAULIC HOSE,9.52 mm ID x 889.00 mm

(3/4 JIC M Both Ends) 9.52 mm ID x 889.00 mm

4шт.

18

H593392

TUBE,0.5" OD

ASSEMBLY - Boom Cylinder

2шт.

19

H593376

TUBE,0.5" OD

ASSEMBLY - Bucket Cylinder (L/H)

1шт.

20

H593384

TUBE,12.7 mm OD

ASSEMBLY - Bucket Cylinder (R/H)

1шт.

21

H52589

CLAMP

- Tube

1шт.

22

H51748

CLAMP

SPACER - Clamp

1шт.

23

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

24

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

25

H51748

CLAMP

- Tube

1шт.

26

H61069

FLAP

CUSHION - Anti-Wear

1шт.

27

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

28

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

29

H51763

CLAMP

- Hose

2шт.

30

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

31

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

32

H244921

HYDRAULIC HOSE,9.52 mm ID x 381.00 mm, SAE 100R1

9.52 mm ID x 381.00 mm, SAE 100R1

1шт.

33

H268540

HYDRAULIC HOSE,9.52 mm ID x 889.00 mm, SAE 100R1

(3/4 JIC M x 3/4 ORB) with Case cylinders 9.52 mm ID x 889.00 mm, SAE 100R1

1шт.

33

H244921

HYDRAULIC HOSE,9.52 mm ID x 381.00 mm, SAE 100R1

HHYDRAULIC HOSE , With Lantex Cylinders 9.52 mm ID x 381.00 mm, SAE 100R1

1шт.

34

H268565

HYDRAULIC HOSE,9.52 mm ID x 1066.80 mm, SAE 100R1

(3/4 JIC M x 3/4 ORB) 9.52 mm ID x 1066.80 mm, SAE 100R1

1шт.

35

H357863

HOSE,9.65mm ID x 1549.4mm L, SAE 100R1

with Case Cylinders 0.38" ID x 61.00", SAE 100R1

1шт.

35

H268565

HYDRAULIC HOSE,9.52 mm ID x 1066.80 mm, SAE 100R1

(3/4 JIC M x 3/4 ORB) with Lantex cylinders 9.52 mm ID x 1066.80 mm, SAE 100R1

1шт.

36

H246538

BRACKET - Hose

1шт.

37

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

38

CYLINDER ASSEMBLY - Boom, Dipperstick, Bucket (See Figure 122 & 124)

3шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

(3/4)

1шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

(3/4)

1шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

(3/4)

1шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

(3/4)

1шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

(3/4)

1шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

(3/4)

1шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

(3/4)

1шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

(3/4)

1шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

(3/4)

1шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

(3/4)

1шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

(3/4)

1шт.
