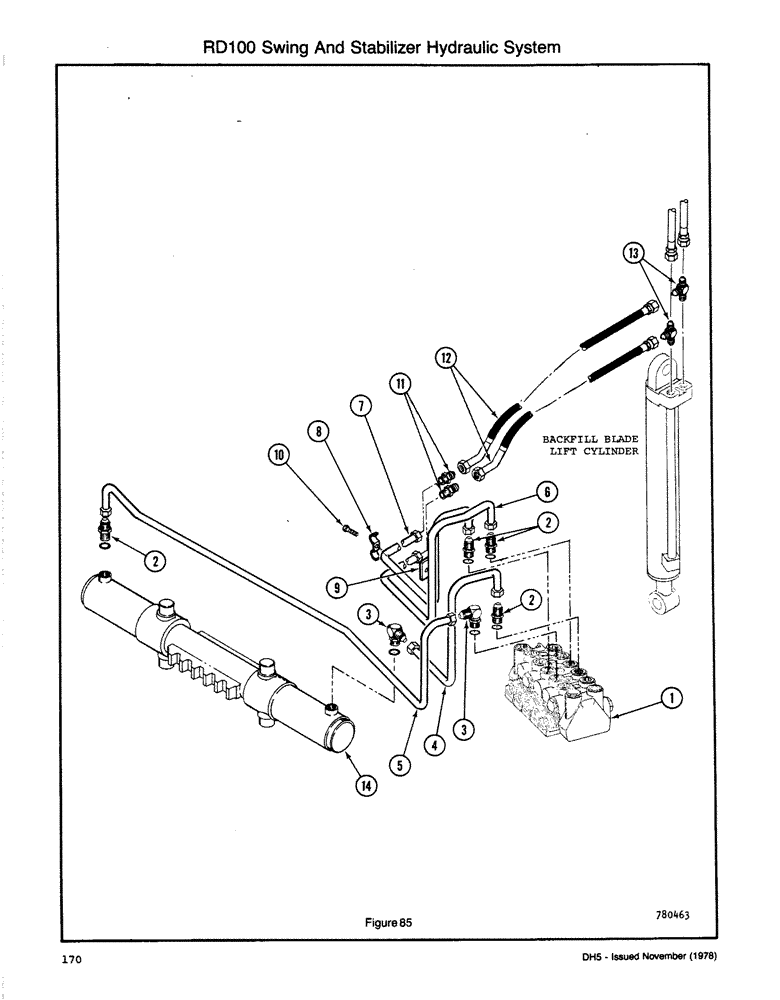

Запчасти Case DH5 (170) - RD100 SWING AND STABILIZER HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

VALVE - Backhoe Control (See Figure 118)

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, HYD., 3/4"-16, 37º x 3/4"-16, O-Ring

4шт.

3

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

2шт.

4

H582684

TUBE ASSEMBLY 1.5" OD

1шт.

5

H582692

TUBE ASSEMBLY 0.5" OD

1шт.

6

H582700

TUBE ASSEMBLY 0.5" OD

1шт.

7

H582718

TUBE ASSEMBLY 0.5" OD

1шт.

8

H59345

CLAMP

- Tube

1шт.

9

H248013

SPACER - Clamp

1шт.

10

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC Hex C/L (5/16)

1шт.

11

218-851

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, 37 Degree

CONNECTOR

1шт.

12

H248294

HOSE - 1/4 x 21 (9/16 JIC Fm Swv x 9/16 JIC M)

2шт.

13

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

2шт.

14

CYLINDER - Backhoe Swing (See Fig.)

1шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
