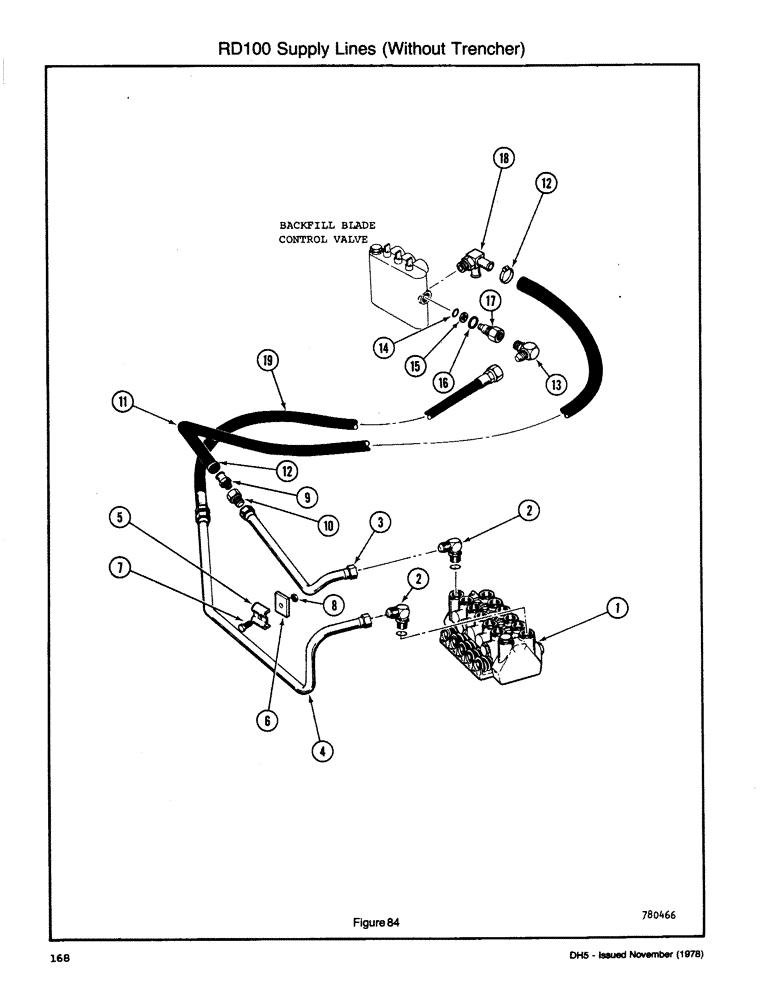

Запчасти Case DH5 (168) - RD100 SUPPLY LINES (WITHOUT TRENCHER) (35) - HYDRAULIC SYSTEMS

1

VALVE - Backhoe Control (See Figure 118)

1шт.

2

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

2шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

3

H598383

TUBE ASSEMBLY 0.625" OD

1шт.

4

H598391

TUBE ASSEMBLY 0.625" OD

1шт.

5

H59345

CLAMP

- Tube

1шт.

6

H248013

SPACER - Clamp

1шт.

7

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

- NC HH (5/16 x 1 3/4)

1шт.

8

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC Hex C/L (5/16)

1шт.

9

217-160

FITTING,3/4" Hose Barb x 1/2" Male NPTF

CONNECTOR

1шт.

10

218-465

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Female NPTF

CONNECTOR

1шт.

11

H361576

HOSE - 3/4 x 140

1шт.

12

H214254

CLAMP - Hose

2шт.

13

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

(7/8)

1шт.

D61608

SLEEVE

ADAPTER - Pressure Beyond

1шт.

14

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

15

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

WASHER - Backup

1шт.

16

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

17

NSS

NOT SOLD SEPARAT

BODY

1шт.

18

H351742

TEE

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

(7/8)

1шт.

19

H361568

HOSE - 1/2 x 140 (7/8 JIC M x 7/8 Fm Swv)

1шт.
