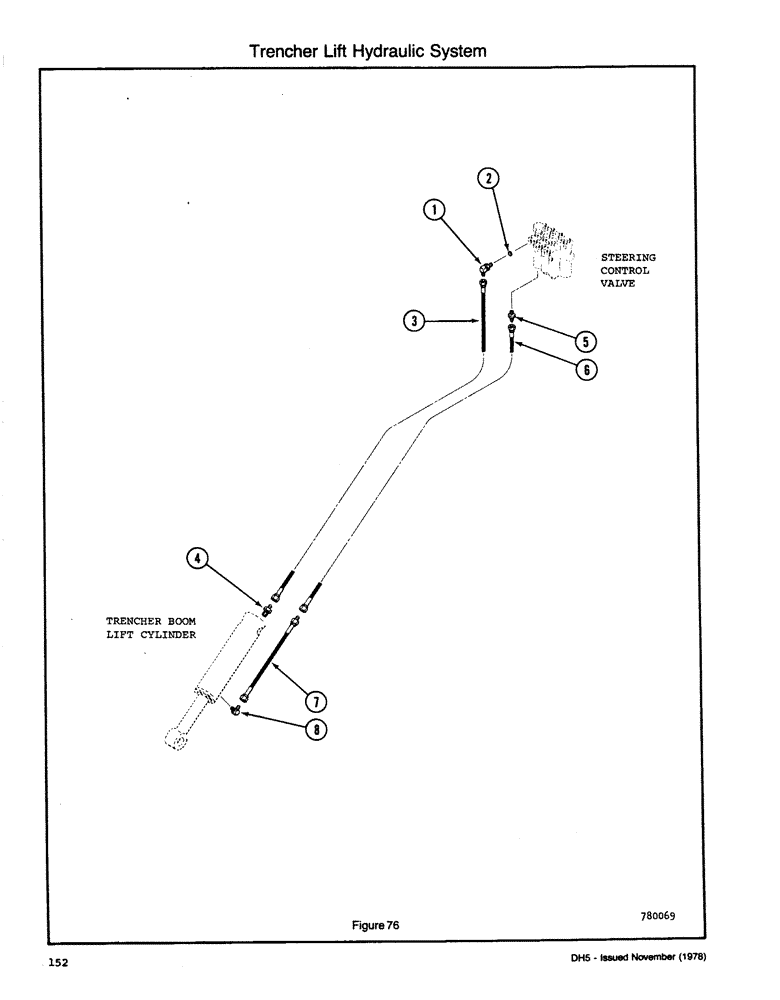

Запчасти Case DH5 (152) - TRENCHER LIFT HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree Adj O-RING (9/16)

1шт.

2

H165654

ORIFICE

PLATE - Orifice (.055)

1шт.

3

H350942

HOSE,0.25" ID x 140.00", SAE 100R1

Front Mounted Trencher Attachment 0.25" ID x 140.00", SAE 100R1

1шт.

3

H249615

HYDRAULIC HOSE,6.35 mm ID x 1574.80 mm, SAE 100R1

Rear Mounted Trencher Attachment 6.35 mm ID x 1574.80 mm, SAE 100R1

1шт.

3

H234724

HOSE

- 1/4 x 72 (9/16 JIC Fm Swv Ends) quad trencher attachment

1шт.

4

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

CONNECTOR O RING (3/4)

1шт.

5

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR O RING (9/16)

1шт.

6

H373647

HOSE

- 1/4 x 129.92 (9/16 JIC Fm Swv Ends) front mounted trencher attachment

1шт.

6

H246322

HYDRAULIC HOSE,6.35 mm ID x 1524.00 mm, SAE 100R1

Rear Mounted Trencher Attachment 6.35 mm ID x 1524.00 mm, SAE 100R1

1шт.

6

H243790

HYDRAULIC HOSE,6.35 mm ID x 1473.20 mm, SAE 100R1

Quad Trencher Attachment 6.35 mm ID x 1473.20 mm, SAE 100R1

1шт.

7

H168625

HYDRAULIC HOSE,6.35 mm ID x 381.00 mm, SAE 100R1

6.35 mm ID x 381.00 mm

1шт.

8

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

- 90 degree

1шт.
