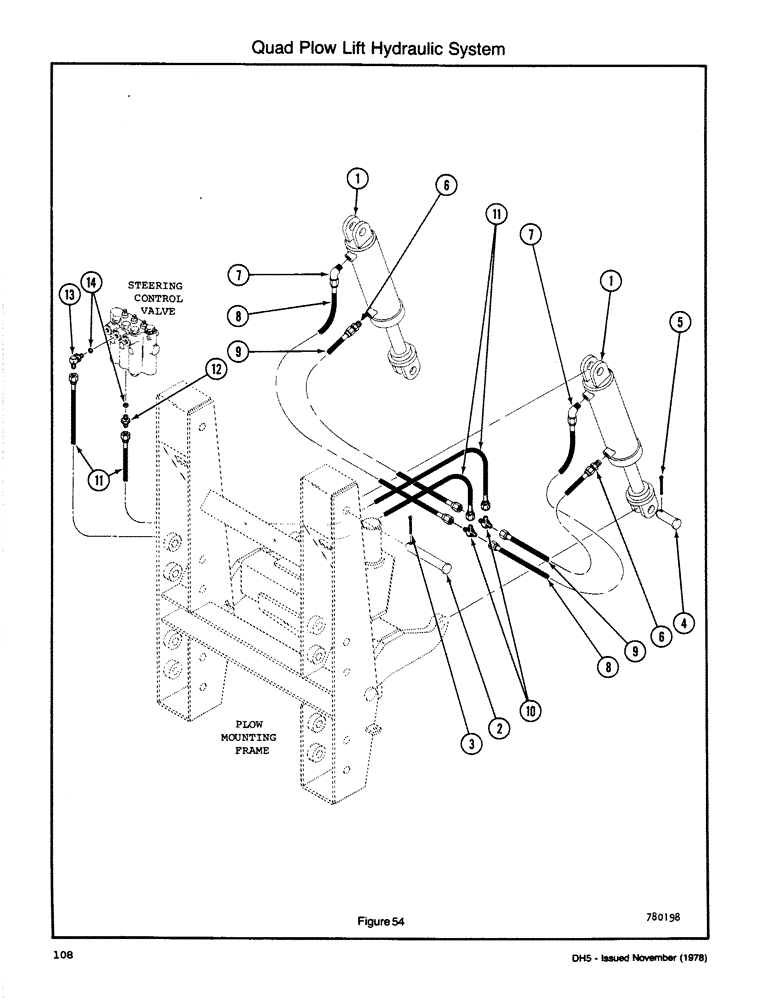

Запчасти Case DH5 (108) - QUAD PLOW LIFT HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

CYLINDER - Plow Lift (See Figure 126)

2шт.

2

H56606

AXLE PIN,30.16mm OD x 142.08mm L

PIN - Clevis (1 x 5 1/4)

2шт.

3

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

2шт.

4

H65011

AXLE PIN,25.3mm OD x 75.41mm L

PIN - Clevis (1 x 2 5/8)

2шт.

5

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

2шт.

6

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

CONNECTOR (3/4 ORB & 9/16 JIC M)

2шт.

7

218-5148

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

45 degree (3/4 ORB & 9/16 JIC M)

2шт.

8

D81836

HOSE

(1/4 x 16) (9/16 JIC Fm Swv)

2шт.

9

H171629

HYDRAULIC HOSE,304.80 mm, SAE 100R1

304.80 mm, SAE 100R1

2шт.

10

218-593

TEE,9/16"-18, 37 Degree

(9/16 JIC M)

2шт.

11

H246322

HYDRAULIC HOSE,6.35 mm ID x 1524.00 mm, SAE 100R1

6.35 mm ID x 1524.00 mm, SAE 100R1

2шт.

12

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR (9/16 ORB & 9/16 JIC M)

1шт.

13

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree Adj (9/16 ORB & 9/16 JIC M)

1шт.

14

H165654

ORIFICE

(Install in "C" & "D" ports of control valve)

2шт.
