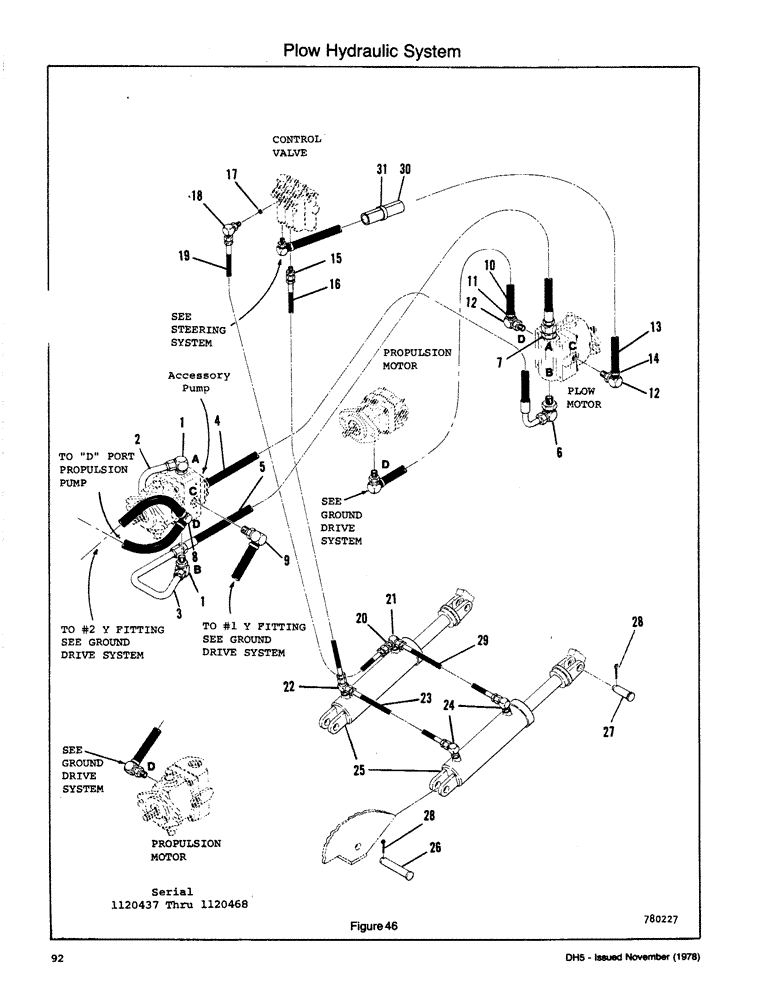

Запчасти Case DH5 (092) - PLOW HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree Adj (1 5/16 ORB & 1 1/16 JIC M)

2шт.

2

H626218

TUBE,0.75" OD

Assy

1шт.

3

H626333

TUBE,0.75" OD

Assy

1шт.

4

H337931

HOSE ASSY.

Hose (3/4 x 130) (1 1/16 JIC M & 90 degree 3/4 bent tube)

1шт.

5

H337923

HOSE ASSY.

Hose (3/4 x 120) (1 1/16 JIC M & 1 1/16 JIC Fm Swv)

1шт.

6

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree Adj (1 5/16 ORB & 1 1/16 JIC M)

1шт.

7

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Connector (1 5/16 ORB & 1 1/16 JIC M)

1шт.

8

H339762

TEE

(1 1/16 ORB & 3/4 & 3/4 Hose)

1шт.

9

217-352

FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/16" - 12 Male ORB

Elbow - 90 degree Adj (1 5/16 ORB & 1 Hose)

1шт.

10

H337915

HOSE ASSY.

Hose (3/4 x 103)

1шт.

11

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

Clamp - Hose (#12)

2шт.

12

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

Elbow - 90 degree Adj (1 1/16 ORB & 3/4 Hose)

2шт.

13

H337899

HOSE ASSY.

Hose (3/4 x 84)

1шт.

14

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

Clamp - Hose (#12)

2шт.

15

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Connector (9/16 ORB & 9/16 JIC M)

1шт.

16

H185736

HYDRAULIC HOSE,6.35 mm ID x 1066.80 mm, SAE 100R1

6.35 mm ID x 1066.80 mm, SAE 100R1

1шт.

17

H165654

ORIFICE

(Install in "C" port of control valve)

1шт.

18

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree Adj (9/16 ORB & 9/16 JIC M)

1шт.

19

H218453

HYDRAULIC HOSE,6.35 mm ID x 838.20 mm, SAE 100R1

6.35 mm ID x 838.20 mm, SAE 100R1

1шт.

20

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

Connector (1/4 MP & 9/16 JIC M)

1шт.

21

H314351

Elbow - Special

1шт.

22

218-5581

TEE,9/16"-18, 37 Degree, 3/4"-16, O-Ring Run, 9/16"-18, 37 Degree

(9/16 JIC M & 3/4 ORB & 9/16 JIC M)

1шт.

23

H169151

HYDRAULIC HOSE,6.35 mm ID x 609.60 mm, SAE 100R1

6.35 mm ID x 609.60 mm, SAE 100R1

2шт.

24

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree Adj (3/4 ORB & 9/16 JIC M)

2шт.

25

Cylinder - Lift (See Figure 126)

2шт.

26

H56606

AXLE PIN,30.16mm OD x 142.08mm L

Pin - Clevis (1 x 5 1/4)

2шт.

27

H65011

AXLE PIN,25.3mm OD x 75.41mm L

Pin - Clevis (1 x 2 5/8)

2шт.

28

H32367

PIN

- Klik

4шт.

29

H248989

HYDRAULIC HOSE,6.35 mm ID x 685.40 mm, SAE 100R1

6.35 mm ID x 685.40 mm, SAE 100R1

1шт.

30

H355198

COVER

- Hose

1шт.

31

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

Clamp - Hose (#20)

1шт.
