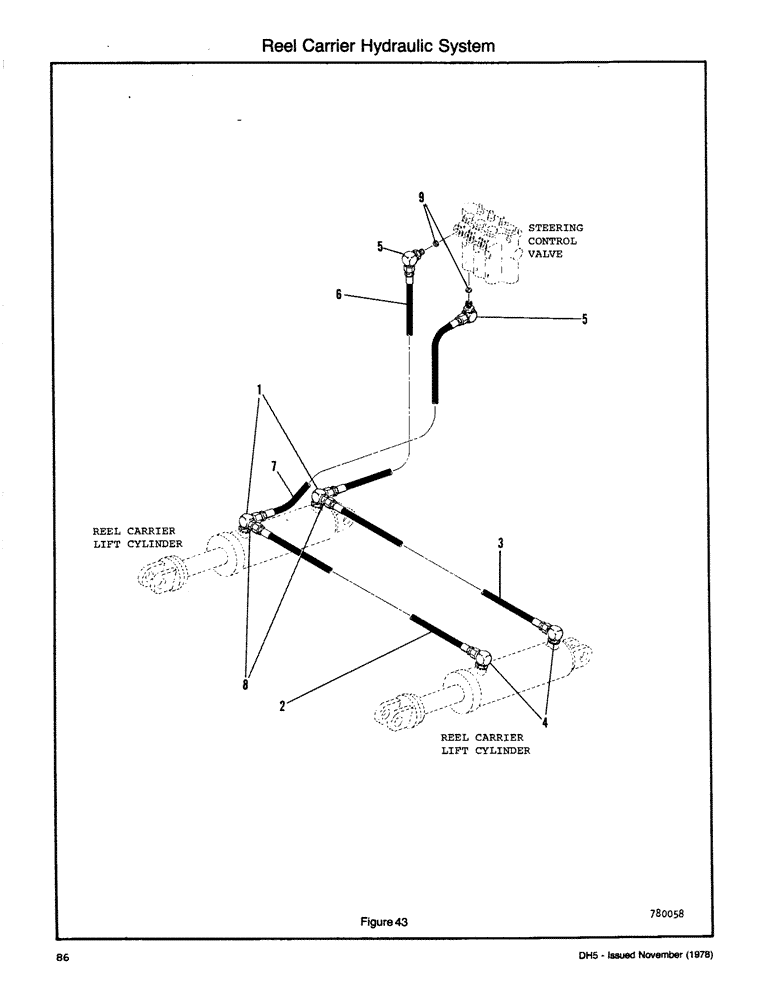

Запчасти Case DH5 (086) - REEL CARRIER HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

H314351

Elbow - Special

2шт.

2

H168658

HYDRAULIC HOSE,6.35 mm ID x 508.00 mm, SAE 100R1

6.35 mm ID x 508.00 mm

1шт.

3

H169151

HYDRAULIC HOSE,6.35 mm ID x 609.60 mm, SAE 100R1

6.35 mm ID x 609.60 mm, SAE 100R1

1шт.

4

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree Adj. (3/4" ORB x 9/16" JIC M)

2шт.

5

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree Adj. (9/16" ORB x 9/16" JIC M)

2шт.

6

H253674

HOSE ASSY.

Hose - 1/4" x 90" (1 Wire) w/ 9/16" JIC Fm Swv Ends

1шт.

7

H348359

Hose - 1/4" x 110? (1 Wire) w/ 9/16" JIC Fm Swv Ends

1шт.

Ref #7 - Replaced by H350926 06/21/96

1шт.

8

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

Conn - 1/4" M P x 9/16" JIC M

2шт.

9

H165654

ORIFICE

- .055 Dia

2шт.
