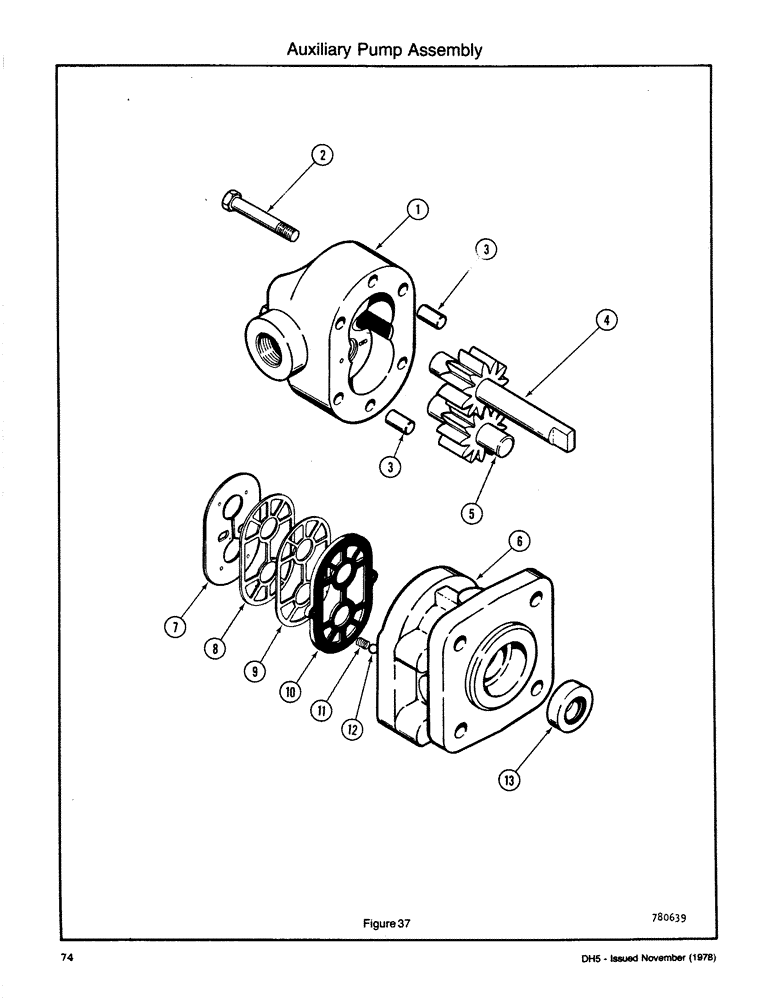

Запчасти Case DH5 (074) - AUXILIARY PUMP ASSEMBLY (35) - HYDRAULIC SYSTEMS

H588418

PUMP

ASSEMBLY - Auxiliary

2шт.

1

H591586

HOUSING

- Back

1шт.

2

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Hex, 1/4"- 20 x 2", G5

4шт.

3

H75480

PIN - Dowel

2шт.

4

H591594

GEAR

- Drive

1шт.

5

H591602

GEAR

- Idler

1шт.

6

H591578

LARGE PLATE

PLATE - Front

1шт.

H591503

SEAL ASSY.

KIT - Seal Repair

1шт.

7

H286286

DIAPHRAGM

1шт.

8

H138404

GASKET

- Backup

1шт.

9

H138396

GASKET

- Protector

1шт.

10

H138388

SEAL

- Diaphragm

1шт.

11

H138420

SPRING

1шт.

12

211-305

BALL,3/16" Dia

- Steel

1шт.
