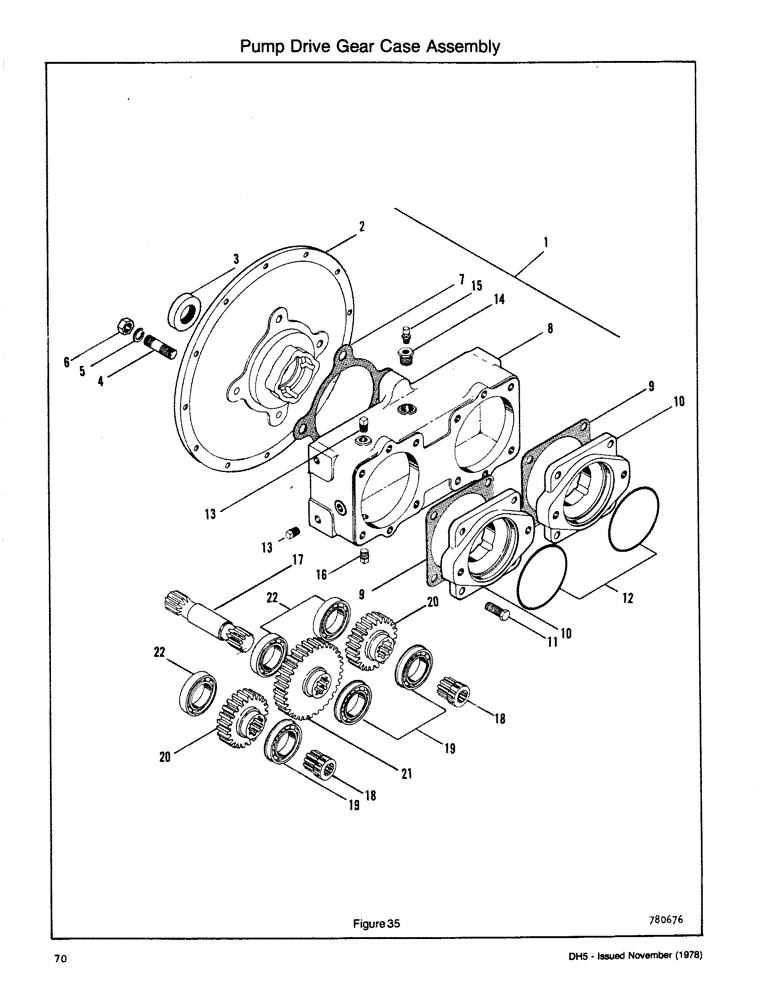

Запчасти Case DH5 (070) - PUMP DRIVE GEAR CASE ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

H627521

GEARBOX ASSY

Gear Case Assy

1шт.

2

H344390

Housing - Flywheel

1шт.

3

H757765

SEAL ASSY.

Seal Oil

1шт.

4

H344515

STUD

- 5/8-11

4шт.

5

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

6

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

7

H344408

GASKET

1шт.

8

H344374

HOUSING

1шт.

9

H344457

GASKET

2шт.

10

H344424

ADAPTER

- Pump

2шт.

11

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

12

S93507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

O Ring

2шт.

13

H76422

PLUG

(1/4-18 Sq. HD - Pipe)

3шт.

14

221-87

REDUCER,1/2" NPT x 1/8" NPT

Bushing (1/2 to 1/8 - Pipe)

1шт.

15

T42477

FITTING

Breather - Air

1шт.

16

221-670

PLUG

(1/4-18 Magnetic)

1шт.

17

H344440

DRIVE SHAFT

Shaft - Drive

1шт.

18

H344432

ADAPTER

- Sleeve

2шт.

19

757732

Bearing

3шт.

20

H344416

PINION

Gear - Driven

2шт.

21

H344382

PINION

Gear - Pinion

1шт.

22

A75193

BALL BEARING,1.5748" ID x 2.6882" OD x 0.5906" Thk

Bearing

3шт.
