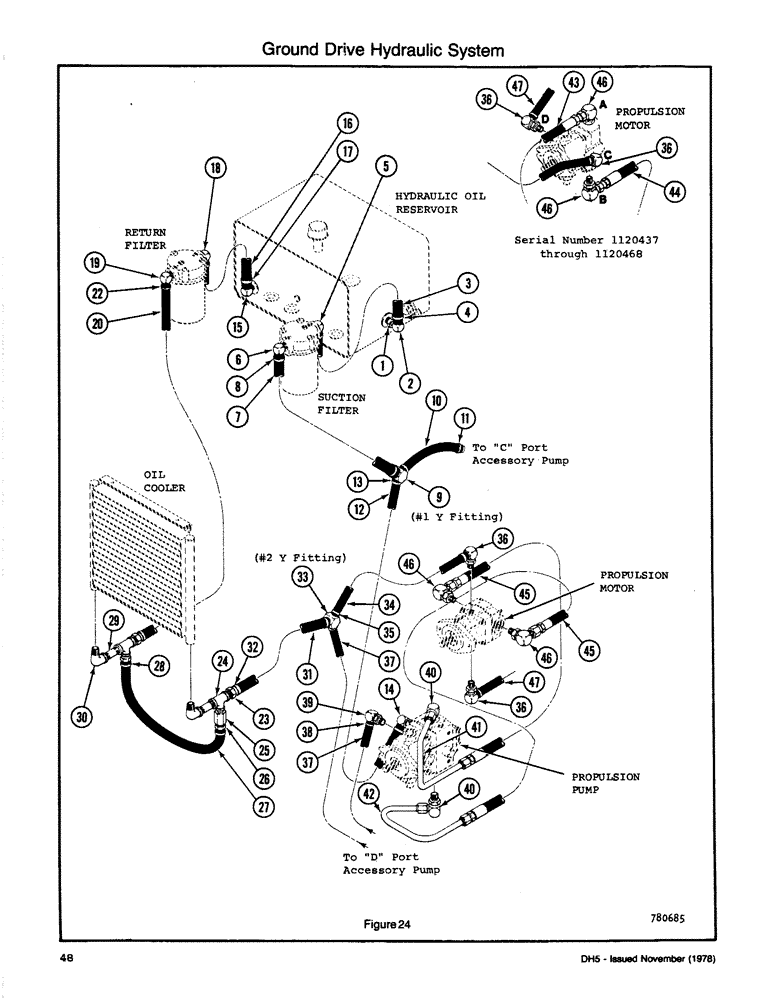

Запчасти Case DH5 (048) - GROUND DRIVE HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

H151399

FILTER STRAINER

SCREEN - Suction

1шт.

2

217-166

STEM,90 Degree Elbow, 1-1/4" Hose Barb x 1" Male NPTF

90 degree (1 MP & 1 1/4 Hose)

1шт.

3

H347823

HOSE

(1 1/4 x 8)

1шт.

4

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

5

217-358

FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/16" - 12 Male ORB

ELBOW 90 degree Adj (1 5/16 ORB & 1 1/4 Hose)

1шт.

6

H346908

ELBOW UNION

ELBOW - Special

1шт.

7

H347831

HOSE

(1 1/4 x 23)

1шт.

8

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

9

H339739

FITTING

- #1 Y (1 1/4 & 1 & 1 Hose)

1шт.

10

H337907

HOSE ASSY.

HOSE (1 x 10)

1шт.

11

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - Hose (#20)

2шт.

12

H347849

HOSE

(1 x 30)

1шт.

13

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - Hose (#20)

2шт.

14

217-352

FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/16" - 12 Male ORB

ELBOW 90 degree Adj (1 5/16 ORB & 1 Hose)

1шт.

15

87029969

HYD CONNECTOR

ELBOW 90 degree (1 1/4 MP & 1 1/4 Hose); Replaces 217-137 Fitting

1шт.

16

H347823

HOSE

(1 1/4 x 8)

1шт.

17

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

18

217-358

FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/16" - 12 Male ORB

ELBOW 90 degree Adj (1 5/16 ORB & 1 1/4 Hose)

1шт.

19

H346890

ELBOW UNION

ELBOW - Special

1шт.

20

H118026

HOSE ASSY.

HOSE (1 x 28)

1шт.

21

H355198

COVER

- Hose (not shown)

1шт.

22

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - Hose (#20)

4шт.

23

217-156

FITTING,1" Hose Barb x 1" Male NPTF

CONNECTOR (1 MP & 1 Hose)

2шт.

24

221-457

TEE,Pipe, 1" NPT x 3/4" NPT Br

- Pipe (1 & 1 & 3/4)

2шт.

25

H627513

VALVE

- By Pass

1шт.

26

217-375

FITTING,1" Hose Barb x 3/4" Male NPTF

CONNECTOR (3/4 MP & 1 Hose)

2шт.

27

H169417

HOSE ASSY.

HOSE (1 x 24)

1шт.

28

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - Hose (#20)

2шт.

29

221-243

PIPE,Nipple, 1" NPT x 4"

NIPPLE - Pipe (1 x 4)

2шт.

30

221-416

ELBOW,90 Degree, 1"-11 1/2, NPT

90 degree Street (1)

2шт.

31

H309096

HOSE

(1 x 17)

1шт.

32

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - Hose (#20)

2шт.

33

H339747

FITTING

- #2 Y (1 & 3/4 & 3/4 Hose)

1шт.

34

H307769

HOSE ASSY.

HOSE (3/4 x 42)

1шт.

35

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - Hose (#12)

2шт.

36

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW 90 degree Adj (1 1/16 ORB & 3/4 Hose)

2шт.

37

H119495

HYDRAULIC HOSE,0.75" ID x 27.00", SAE 30R2 Type 2

0.75" ID x 27.00", SAE 30R2 Type 2

2шт.

38

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - Hose (#12)

4шт.

39

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW 90 degree Adj (1 1/16 ORB & 3/4 Hose)

1шт.

40

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90 degree Adj (1 5/16 ORB & 1 1/16 JIC M)

2шт.

41

H626200

TEE,0.75" OD

TUBE ASSY

1шт.

42

H626333

TUBE,0.75" OD

ASSY

1шт.

43

H265421

HOSE ASSY.

HOSE ASSY (3/4 x 17)(1 1/16 JIC M & JIC Fm Swv), Serial Range: 1120432-1120468

1шт.

44

H276907

HOSE ASSY.

HOSE ASSY (3/4 x 30)(1 1/16 JIC M & JIC Fm Swv), Serial Range: 1120432-1120468

1шт.

45

H276923

FLEXIBLE HOSE

HOSE ASSY (3/4 x 42)(1 1/16 JIC M & JIC Fm Swv), Start Serial: 1120469

2шт.

46

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90 degree Adj (1 5/16 ORB & 1 1/16 JIC M)

2шт.

47

Hose (See Figure 46)

1шт.

No attachments installed, this hose goes to "out" port of control valve. With plow only installed, this hose is replaced with one from "D" port of plow motor.

1шт.
