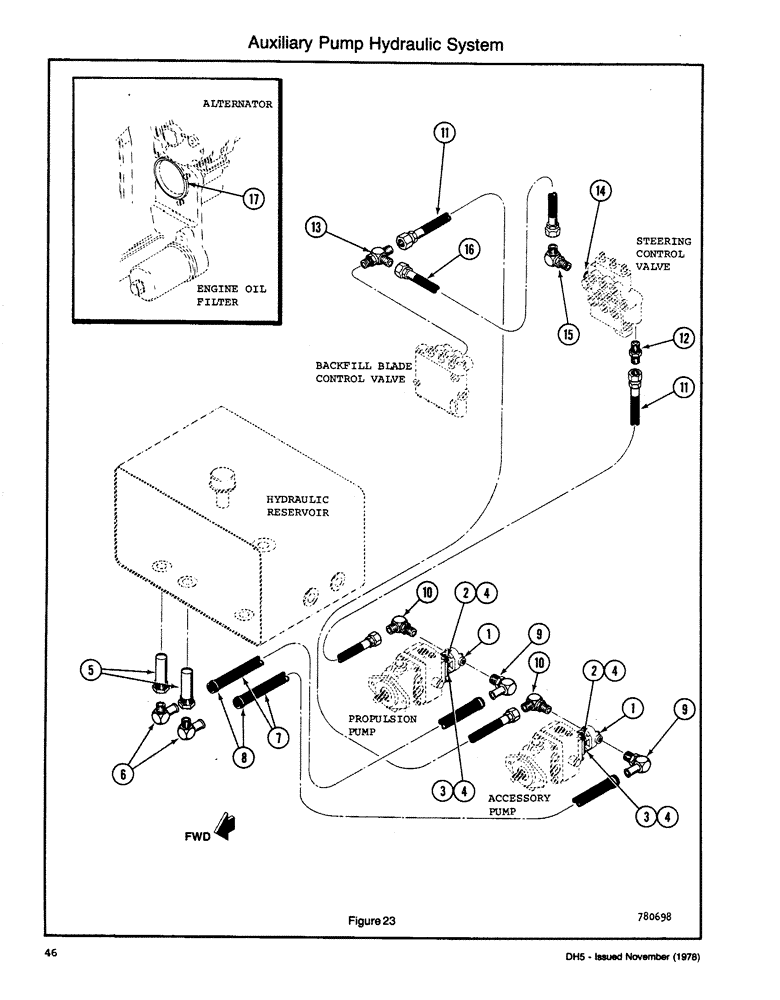

Запчасти Case DH5 (046) - AUXILIARY PUMP HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

AUXILIARY PUMP (See Figure 36)

2шт.

2

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd (Top holes)

4шт.

3

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(Bottom holes) Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

4

193-95

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

8шт.

5

H151399

FILTER STRAINER

SCREEN - Suction

2шт.

6

217-364

FITTING,90 Degree Elbow, 3/4" Hose Barb x 3/4" - 16 Male ORB

ELBOW 90 degree Adj (3/4 ORB & 3/4 Hose)

2шт.

7

H212951

HOSE

(3/4 x 24)

2шт.

8

214-2551

CLAMP - Hose (#16)

4шт.

9

217-364

FITTING,90 Degree Elbow, 3/4" Hose Barb x 3/4" - 16 Male ORB

ELBOW 90 degree Adj (3/4 ORB & 3/4 Hose)

2шт.

10

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

90 degree Adj (9/16 ORB & 3/4 JIC M)

2шт.

11

H323881

HYDRAULIC HOSE,9.52 mm ID x 2032.00 mm, SAE 100R1

(3/4 JIC Fm Swv & 3/4 JIC Fm Swv) 9.52 mm ID x 2032.00 mm, SAE 100R1

2шт.

12

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR (3/4 ORB & 3/4 JIM M)

1шт.

13

218-5292

TEE,37 Degree, 3/4"-16, 7/8"-14 O-Ring Run, 3/4"-16

(3/4 JIC M & 3/4 JIC M & 7/8 ORB)

1шт.

14

D61608

SLEEVE

ADAPTER - Pressure Beyond

1шт.

15

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

90 degree Adj (3/4 JIC M & 7/8 ORB)

1шт.

16

H202150

HOSE ASSY.

HOSE ASSY (3/8 x 10 1/2)(3/4 JIC Fm Swv & 3/4 JIC Fm Swv)

1шт.

345-70

SEALER Used in place of gaskets (not shown)

1шт.

17

41-1052

PLUG,Cup, 3 1/4"

- Cover (3 1/4) used if Case steering pump is removed

1шт.
