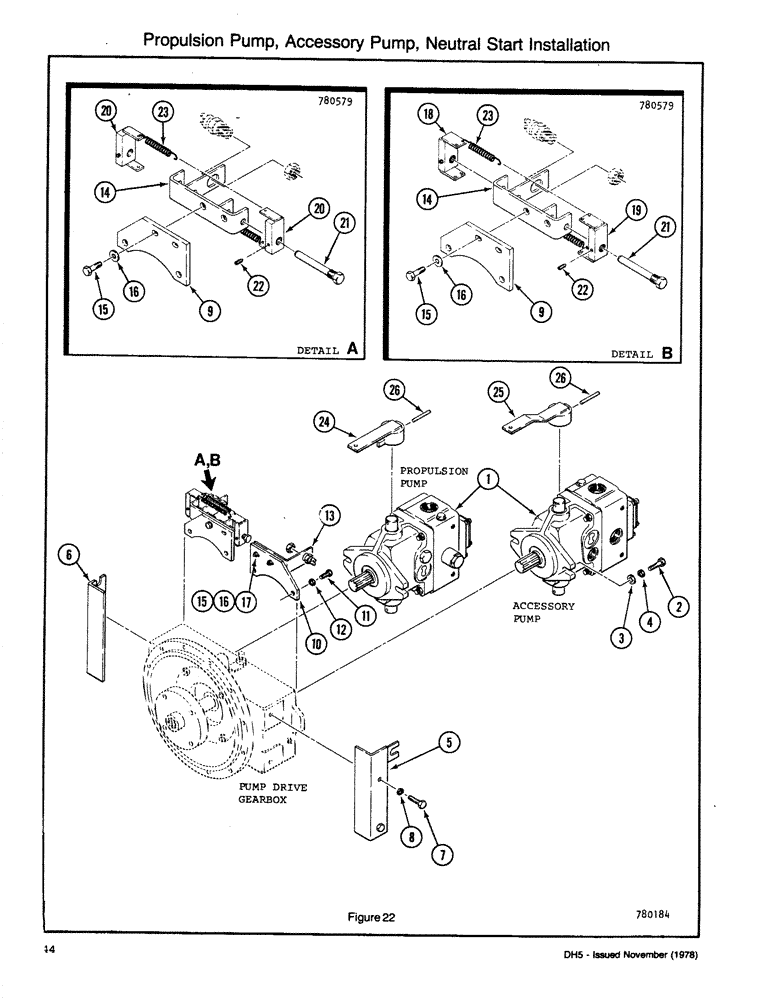

Запчасти Case DH5 (044) - PROPULSION PUMP, ACCESSORY PUMP, NEUTRAL START INSTALLATION (35) - HYDRAULIC SYSTEMS

1

PUMP PROPULSION & ACCESSORY (See Figure 107)

2шт.

2

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

3

195-533

WASHER,1/2", SAE

- Flat (1/2)

4шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

345-70

SEALER Used in place of gaskets (not shown)

1шт.

5

H626341

ANGLE ASSY - Pump Control

1шт.

6

H338996

ANGLE - Pump Control

1шт.

7

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

9

H338871

BRACKET

- Neutral Start Mounting RH

1шт.

10

H632729

BRACKET

ASSY - Neutral Start Mounting LH

1шт.

11

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

12

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

13

H338830

ANGLE

- Neutral Start LH

1шт.

14

H631192

BRACKET ASSY - Neutral Start RH

1шт.

15

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

16

195-525

WASHER,3/8", SAE

4шт.

17

230-4216

LOCK NUT,3/8"-16, GA

NUT NC HH C/L (3/8)

2шт.

18

ADJUST ASSY - Neutral R.H., order: P/N H639880 (2) required

1шт.

When replacing a neutral adjust assembly (either left or right), the other one must also be replaced.

1шт.

19

ADJUST ASSY - Neutral L.H., order: P/N H639880 (2) required

1шт.

When replacing a neutral adjust assembly (either left or right), the other one must also be replaced.

1шт.

20

H639880

ADJUST ASSY - Neutral

2шт.

21

H289124

ADJUSTMENT SCREW,5/8" - 13 x 3 3/8"

- Adjust

2шт.

22

178-881

SET SCREW,Hex Soc, 1/4"-20 x 1/2"

SCREW - Set (1/4-20 x 1/2)

2шт.

23

H339432

VALVE SPRING

SPRING (when used with #18 & #19, 4 are required)

2шт.

24

H626184

CONTROL BLOCK

CONTROL ASSY - Propulsion Pump

1шт.

25

H626192

CONTROL BLOCK

CONTROL ASSY - Accessory Pump

1шт.

26

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

2шт.
