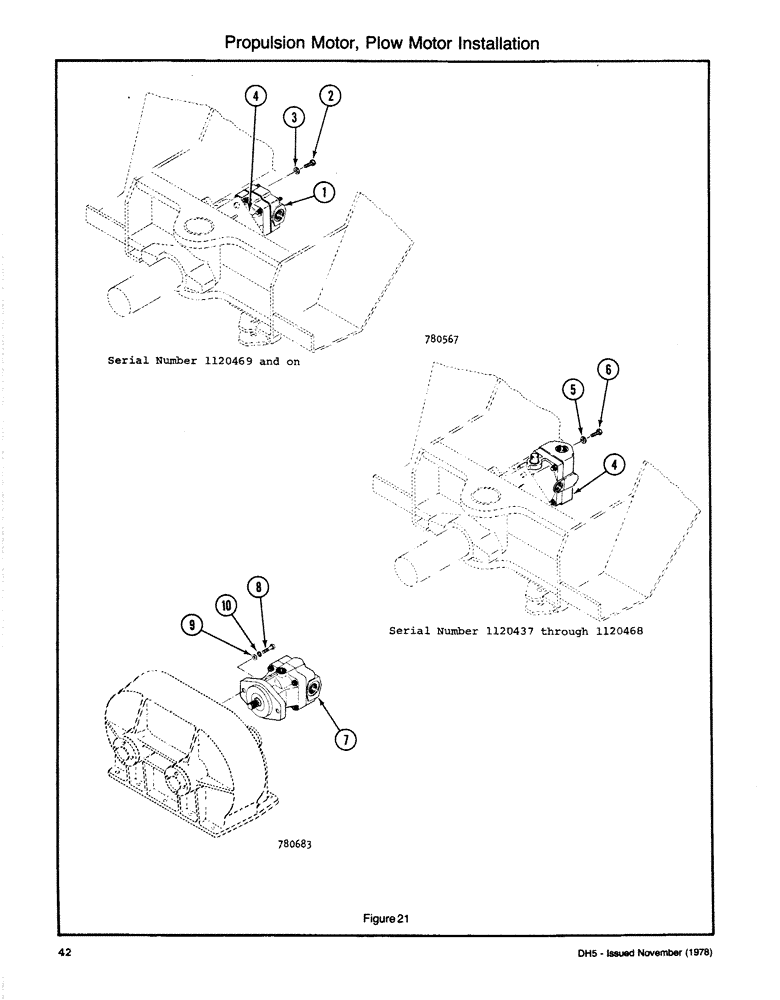

Запчасти Case DH5 (042) - PROPULSION MOTOR, PLOW MOTOR INSTALLATION (35) - HYDRAULIC SYSTEMS

1

MOTOR ASSEMBLY - Propulsion (See Figure 108)

1шт.

2

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

- NC Socket Head (1/2 x 1 1/4)

2шт.

3

195-533

WASHER,1/2", SAE

- Flat (1/2)

2шт.

4

H44727

GASKET

- Shim

3шт.

4

MOTOR ASSEMBLY - Propulsion (See Figure 108)

1шт.

5

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

- NC Socket Head (1/2 x 1 1/4)

2шт.

6

195-533

WASHER,1/2", SAE

- Flat (1/2)

2шт.

7

MOTOR ASSEMBLY - Plow (See Figure 110)

1шт.

8

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

9

195-533

WASHER,1/2", SAE

- Flat (1/2)

2шт.

10

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.
