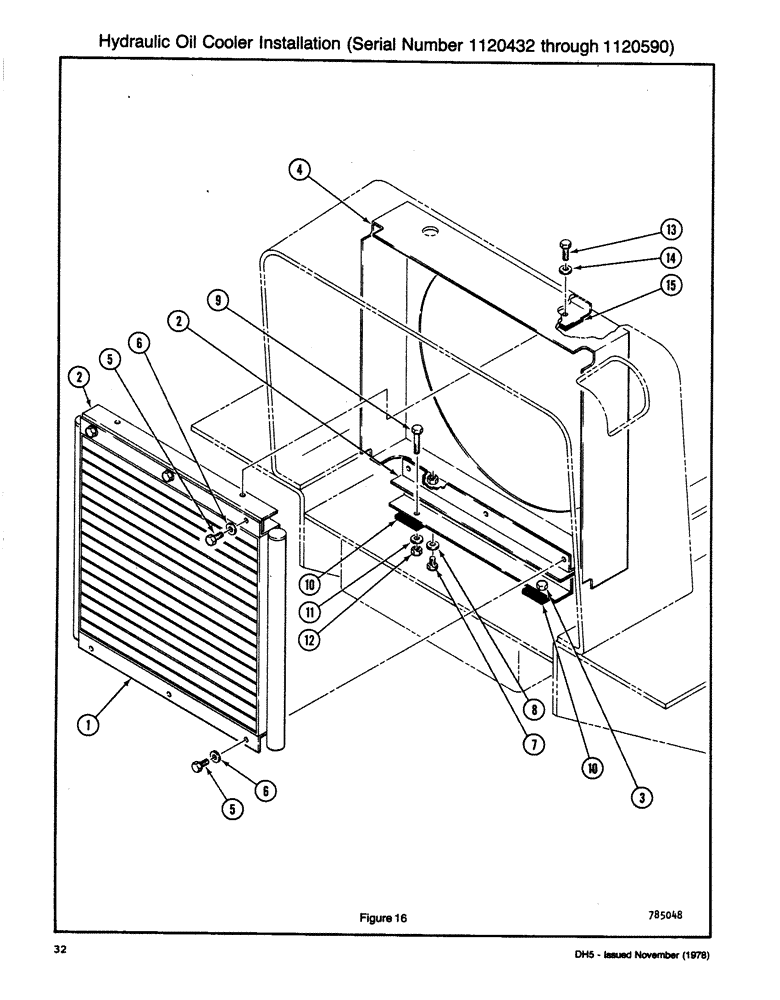

Запчасти Case DH5 (032) - HYDRAULIC OIL COOLER INSTALLATION, (SERIAL NUMBER 1120432 THROUGH 1120590) (35) - HYDRAULIC SYSTEMS

1

H624791

COOLER, OIL

COOLER - Hydraulic Oil

1шт.

2

H625939

BRACKET

ASSY - Cooler

2шт.

3

H332791

SUPPORT

1шт.

4

H332809

SHROUD

1шт.

5

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

6

195-525

WASHER,3/8", SAE

6шт.

7

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

8

195-521

WASHER,5/16", SAE

- Flat (5/16)

2шт.

9

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

10

H351700

BUSHING

2шт.

11

195-525

WASHER,3/8", SAE

2шт.

12

230-4216

LOCK NUT,3/8"-16, GA

NUT NC HH C/L (3/8)

2шт.

13

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

14

195-521

WASHER,5/16", SAE

- Flat (5/16)

2шт.

15

H351700

BUSHING

2шт.
