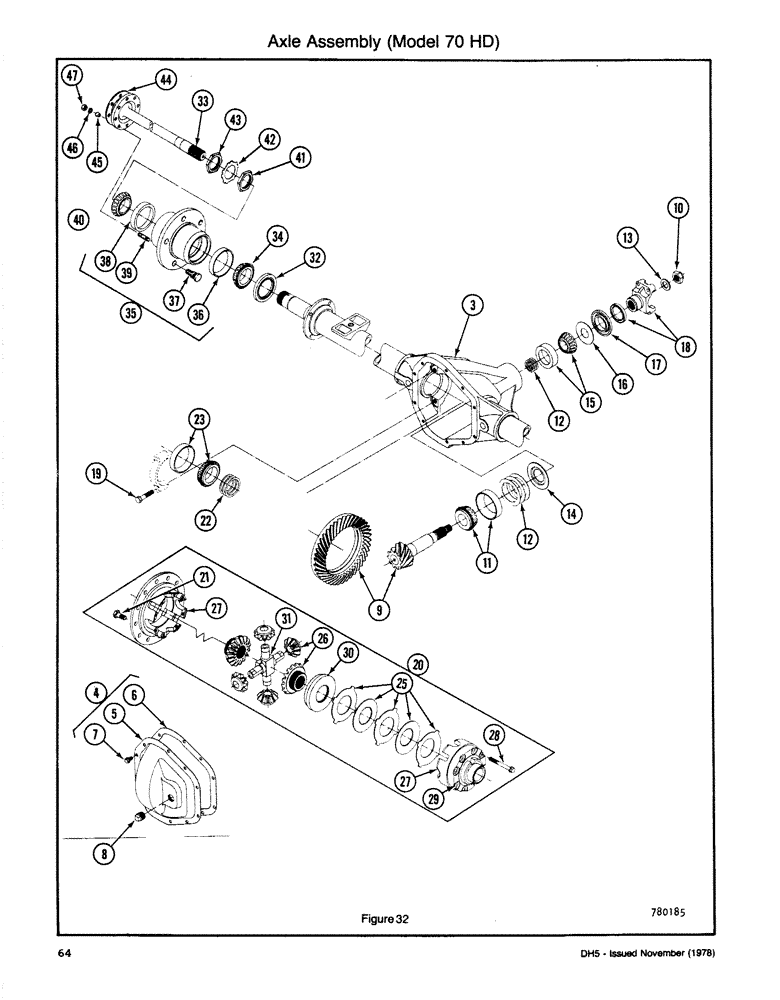

Запчасти Case DH5 (064) - AXLE ASSEMBLY (MODEL 70 HD) (23) - FOUR WHEEL DRIVE SYSTEM

1

H637017

CENTER AXLE

AXLE ASSEMBLY - Front & Rear

2шт.

Ref #1 - ( 7 : 1 Ratio ) 06/21/96

1шт.

2

H637009

AXLE

ASSEMBLY (less hubs)

1шт.

3

H367110

HOUSING - Axle

1шт.

4

H637959

KIT

- Carrier Cover

1шт.

5

H224717

COVER ASSY

COVER ASSEMBLY - Carrier

1шт.

6

H224725

GASKET

- Cover

1шт.

Ref #6 - M20704 Liquid Gasket may be used. If used, be sure ribs on cover are filled smooth to insure proper fit. 06/21/96

1шт.

7

H227132

FLANGE BOLT

BOLT - Carrier Cover

10шт.

8

221-48

PLUG

- Cover

1шт.

9

H644799

SET

PINION & GEAR ASSEMBLY

1шт.

10

H224642

NUT

- Pinion

1шт.

11

H637967

BEARING

KIT - Bearing (inner pinion)

1шт.

12

H637983

SHIM KIT

KIT - Pinion & Bearing Adjust Shims, Also includes #6 & #10

1шт.

13

H224501

WASHER

- Pinion Nut, 7/8 inch

1шт.

14

H224592

BAFFLE

- Pinion Bearing Oil

1шт.

15

H630434

BEARING

KIT - Bearing (outer pinion)

1шт.

16

H224535

SHIELD

SLINGER - Pinion Bearing Outer

1шт.

17

H755157

SEAL

SEAL - Oil

1шт.

18

H224519

YOKE

ASSEMBLY - End

1шт.

19

H226548

SCREW

BOLT - Differential Bearing Cap

4шт.

20

H637934

KIT

- Differential Case Assembly

1шт.

21

H136416

FLANGE BOLT,Serr, 1/2" - 20 x 1.125", Gr 8

BOLT - Drive Gear

12шт.

22

H638007

KIT

- Differential Adjust Shims

1шт.

23

H637975

KIT

- Differential Bearing

1шт.

24

H596486

CASE

ASSEMBLY - Differential

1шт.

25

H224675

DISC

KIT - Differential Disc & Plate

1шт.

26

H604132

GEAR WHEEL

KIT - Differential Gear & Pinion

1шт.

27

H596494

CARRIER

SUB ASSEMBLY - Differential Case

1шт.

28

H275172

BOLT

- Differential Case

8шт.

29

H275164

STUD

ADAPTER - Stud

8шт.

30

H224683

RING

- Differential

2шт.

31

H224709

AXLE PIN

SHAFT - Differential

2шт.

32

H754556

SEAL

GREASE SEAL - Hub

2шт.

33

H224584

SHAFT

- Axle Flanged Drive

2шт.

34

A7891

ROLLER BEARING

BEARING - Inner

2шт.

35

H568170

HUB ASSY.

HUB ASSEMBLY

2шт.

36

A7890

BEARING CUP,112.738 mm OD x 23.81 mm

- Inner

1шт.

37

H214908

BOLT

BOLT - Lug

5шт.

38

H754549

CUP ASSY.

BEARING CUP - Outer

1шт.

39

H214882

STUD

6шт.

40

A10001

ROLLER BEARING,2.0625" ID x 1.193"

BEARING - Outer

2шт.

41

H216283

NUT

- Inner

2шт.

42

H216309

WASHER

- Nut Lock

2шт.

43

H216317

NUT

- Outer

2шт.

44

H217018

GASKET

- Wheel Hub

2шт.

45

H214890

ADAPTER

- Stud Nut

12шт.

46

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

12шт.

47

192-125

X

NUT NF HH (1/2)

12шт.
