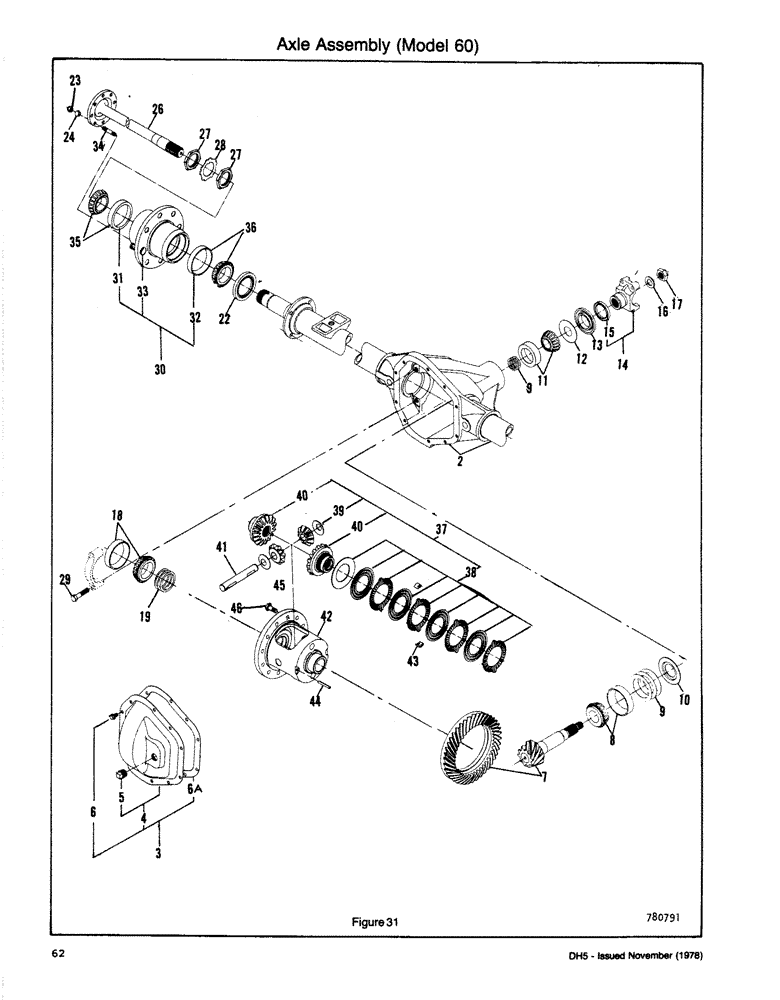

Запчасти Case DH5 (062) - AXLE ASSEMBLY (MODEL 60) (23) - FOUR WHEEL DRIVE SYSTEM
№
Артикул
Название
Примечание
Количество
1
H629410
CENTER AXLE
Front and Rear Axle Asms
2шт.
Ref #1 - ( 7.17 : 1 Ratio) 06/21/96
1шт.
2
H630368
Housing-Axle
1шт.
3
H630483
COVER
Kit-Carrier Cover
1шт.
4
H136283
COVER
Asm-Carrier
1шт.
5
221-48
PLUG
-Cover
1шт.
6
H227132
FLANGE BOLT
Bolt-Carrier Cover
10шт.
6a
H263095
GASKET
-Cover
1шт.
7
H630376
GEAR
Pinion and Gear Asm (Includes item 17)
1шт.
8
H630426
BEARING
Kit-Bearing (Inner Pinion)
1шт.
9
H630459
SHIM
Kit-Pinion and Bearing Adj. Shim (Includes item 16, 17 and 6A)
1шт.
10
H349647
BAFFLE
-Pinion Bearing Oil
1шт.
11
H630434
BEARING
Kit-Bearing (Outer Pinion)
1шт.
12
H224535
SHIELD
Slinger-Pinion Bearing (Outer Pinion)
1шт.
13
H755157
SEAL
Seal Pinion
1шт.
14
H224519
YOKE
Asm
1шт.
15
H224527
SHIELD
Slinger-Oil
1шт.
17
H224642
NUT
-Pinion
1шт.
18
H630442
BEARING
Kit-Bearing (Differential)
2шт.
19
H630467
KIT
-Diff Bearing Adj Shim
1шт.
22
H757880
SEAL
-Hub
2шт.
23
131-1217
LOCK NUT,7/16"-14, GC
Nut-Stud
16шт.
24
H275164
STUD
Adapter-Stud Nut
16шт.
26
H348003
AXLE
Shaft-Axle Flanged Drive
2шт.
27
H136176
NUT
-Wheel Bearing Adj
4шт.
28
H350561
LOCK WASHER
Lockwasher-Wheel Bearing Nut
2шт.
29
H226548
SCREW
Bolt-Bearing Cap
4шт.
30
H630350
HUB ASSY.
Hub Asm
2шт.
31
A28168
CUP
Bearing Cap
1шт.
32
A27138
BEARING CUP,85 mm OD x 17.462 mm
Bearing Cap
1шт.
33
H350553
WHEEL
Bolt-Wheel
8шт.
34
S61932
STUD
-Hub
8шт.
35
H631002
BEARING
Kit-Outer Wheel Bearing
2шт.
36
H630491
BEARING SET
Kit-Inner Wheel Bearing
2шт.
37
H631853
CASE
Asm-Differential
1шт.
38
H632257
DISC
Stack-Diff Disc and Plate Asm
2шт.
39
H136374
WASHER
Thrust Washer-Diff Pinion
2шт.
40
H349662
PINION
-Diff
2шт.
41
H136366
SHAFT
1шт.
42
H631861
CASE
1шт.
43
H226753
CLIP
2шт.
44
H263129
LOCK PIN
1шт.
45
H349670
PINION
Gear-Diff
2шт.
46
H136416
FLANGE BOLT,Serr, 1/2" - 20 x 1.125", Gr 8
Bolt-Drive Gear
12шт.
Выбрано товаров: 45
