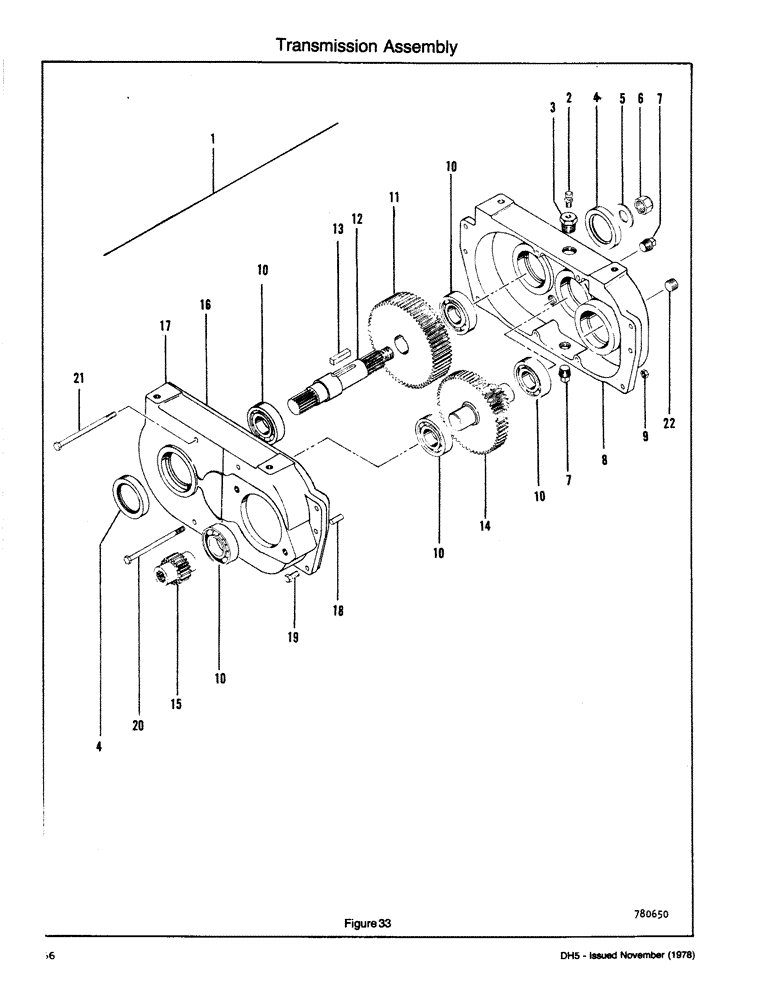

Запчасти Case DH5 (066) - TRANSMISSION ASSEMBLY (21) - TRANSMISSION

1

H586560

TRANSMISSION

Asm

1шт.

2

L33264

BREATHER

Air Breather

1шт.

3

221-90

REDUCER,3/4" NPT x 1/8" NPT

Bushing (3/4 to 1/8 Pipe)

1шт.

4

H754226

OIL SEAL

Oil Seal

2шт.

5

H208496

WASHER

(7/8 Flat)

1шт.

6

131-465

LOCK NUT,7/8"-14, G8

Nut-NF Hex c/1 (7/8)

1шт.

7

221-47

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

Plug (1/2 Pipe)

2шт.

8

H252973

HOUSING

Gear Case

1шт.

9

230-4216

LOCK NUT,3/8"-16, GA

Nut-NC Hex c/1 (3/8)

8шт.

10

A26581

BALL BEARING,1.378" ID x 2.8346" OD x 0.6693"

BEARING

5шт.

11

H253146

GEAR

Reduction Gear

1шт.

12

H253138

SHAFT

Output Shaft

1шт.

13

H70045

KEY

1шт.

14

H253153

GEAR

Cluster Gear

1шт.

15

H253112

GEAR

Motor Gear

1шт.

16

H253120

GASKET

1шт.

17

H252999

HOUSING

Gear Case

1шт.

18

H755272

DOWEL

Pin (3/8 x 1)

2шт.

19

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

20

H710020

BOLT (MACHINE)

HHCS (3/8 x 5 1/4 NC)

2шт.

21

113-253

BOLT,Hex, 3/8" - 16 x 5", Gr 5

2шт.

22

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

Flush Plug (1/2 Pipe)

1шт.
