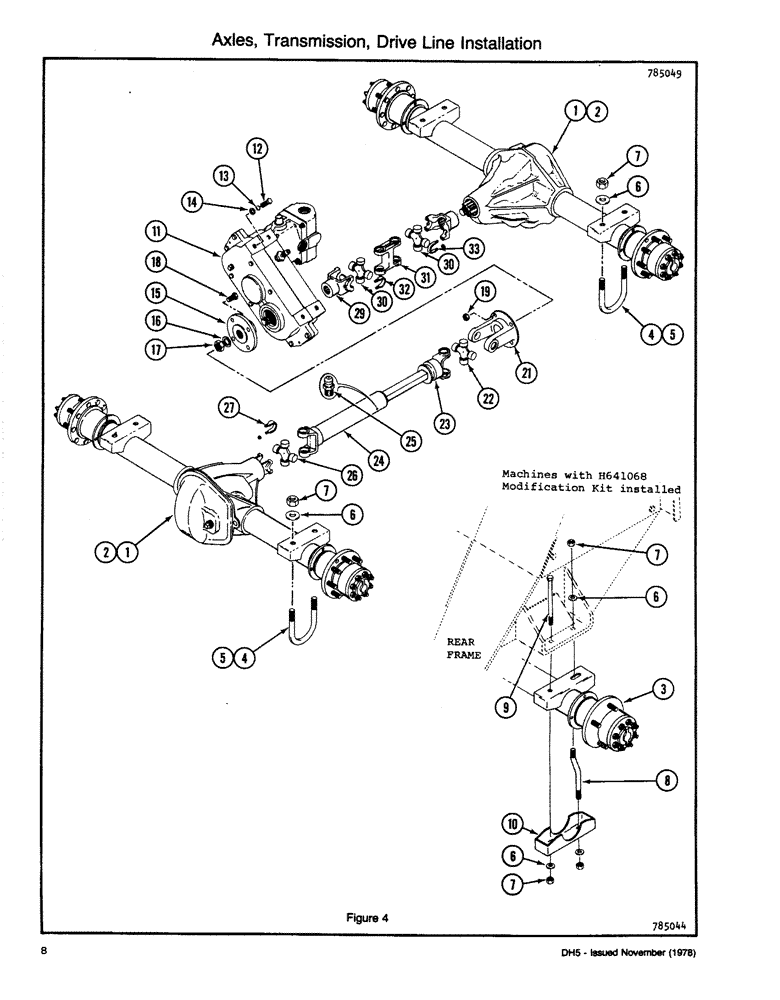

Запчасти Case DH5 (008) - AXLES, TRANSMISSION, DRIVE LINE INSTALLATION (14) - MAIN GEARBOX & DRIVE

1

AXLE ASSY - 60 Series (See Figure 31)

1шт.

2

AXLE ASSY - 70 Series HD (See Figure 32)

1шт.

3

AXLE ASSY - 70 Series HD (See Figure 32)

1шт.

Machines with H641068 axle kit installed.

1шт.

4

H340240

BOLT (SPREADER)

BOLT - "U" (60 series)

4шт.

5

H212720

U-BOLT

BOLT - "U" (70 series)

4шт.

6

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- Flat HT (3/4)

8шт.

Machines with H641068 axle kit installed only need six each.

1шт.

7

131-1152

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

8шт.

Machines with H641068 axle kit installed only need six each.

1шт.

8

H373266

ROD - Threaded, per axle

2шт.

Machines with H641068 axle kit installed.

1шт.

9

H720847

BOLT

NC HH (3/4 x 6 1/2) (Gr 8) per axle

2шт.

Machines with H641068 axle kit installed.

1шт.

10

H567537

HANGER ASSY, per axle

2шт.

Machines with H641068 axle kit installed.

1шт.

11

TRANSMISSION ASSY (See Fig.)

1шт.

12

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

13

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

14

195-533

WASHER,1/2", SAE

- Flat (1/2)

4шт.

15

H627547

FLANGE ASSY - Companion

1шт.

16

H208496

WASHER

- Flat (7/8) part of trans assy

1шт.

17

131-465

LOCK NUT,7/8"-14, G8

NUT NF HH (7/8) part of trans assy

1шт.

18

H339598

BOLT

NC HH (7/16 x 1 11/32) (AN7-12A)

4шт.

19

131-1119

LOCK NUT,7/16"-24, GA

NUT NF HH T/L (7/16)

4шт.

20

H624726

SHAFT

ASSY - Drive

1шт.

21

H333310

YOKE

- Flange

1шт.

22

H146431

U-JOINT SPIDER

CROSS

1шт.

23

H339127

SHAFT

STUB HALF

1шт.

24

H339135

TUBE

HALF

1шт.

25

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - Grease (1/4 straight)

2шт.

26

D70629

U-JOINT SPIDER

CROSS

1шт.

27

H183566

BOLT

ASSY - "U" (includes washers & nuts)

2шт.

28

H568360

U-JOINT SPIDER

JOINT ASSY - Drive

1шт.

29

H208488

YOKE

- Splined

1шт.

30

D70629

U-JOINT SPIDER

CROSS

2шт.

31

H212415

YOKE

- Center

1шт.

32

H183566

BOLT

ASSY - "U" (includes washers & nuts)

2шт.

33

H183566

BOLT

ASSY - "U" (includes washers & nuts)

2шт.
