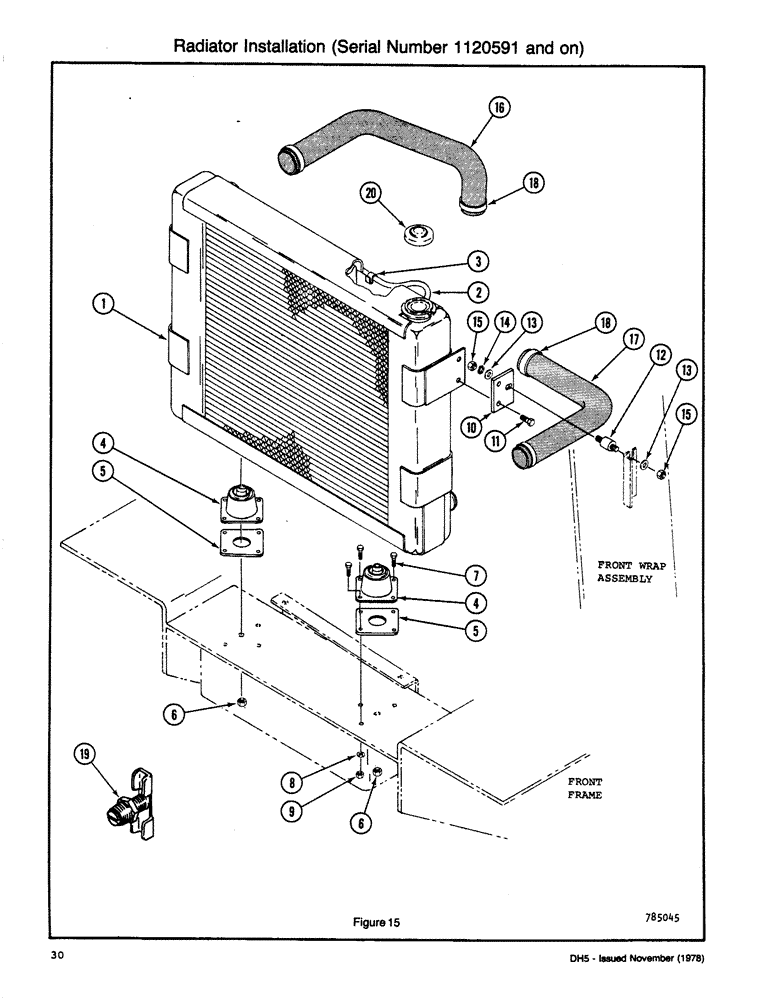

Запчасти Case DH5 (030) - RADIATOR INSTALLATION (SERIAL NUMBER 1120591 AND ON) (10) - ENGINE

1

H634832

RADIATOR

- Engine

1шт.

2

H381822

HOSE

- Overflow

1шт.

3

A45691

CLIP

- Overflow Hose

2шт.

4

H359224

MOUNTING PARTS

MOUNT - Radiator Lower

2шт.

5

H359117

SPACER

- Lower Mount

2шт.

6

230-4216

LOCK NUT,3/8"-16, GA

NUT NC HH C/L (3/8)

2шт.

7

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

6шт.

8

195-518

WASHER,1/4", SAE

- Flat (1/4)

6шт.

9

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

6шт.

10

H359075

PLATE

- Radiator Upper Mount

2шт.

11

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

12

H359216

MOUNTING PARTS

MOUNT - Radiator Upper

2шт.

13

195-521

WASHER,5/16", SAE

- Flat (5/16)

4шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

15

129-578

NUT,5/16"-18, G5

NC HH (5/16)

4шт.

16

H361386

RADIATOR HOSE,2.00" ID x 11.40", SAE 20R4

Upper 2.00" ID x 11.40", SAE 20R4

1шт.

17

H361394

RADIATOR HOSE,2.00" ID, SAE 20R4

Lower 2.00" ID, SAE 20R4

1шт.

18

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

19

217-103

COCK, DRAIN

COCK - Drain

1шт.

20

H339374

CYLINDER END CAP

CAP - Radiator

1шт.
