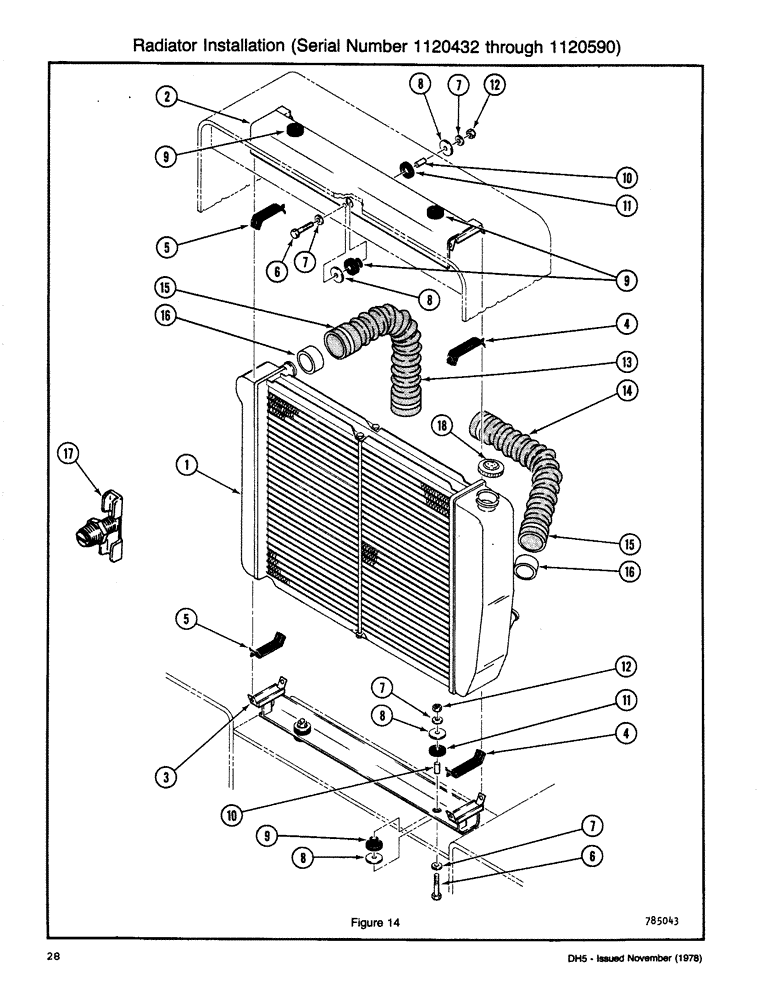

Запчасти Case DH5 (028) - RADIATOR INSTALLATION (SERIAL NUMBER 1120432 THROUGH 1120590 (10) - ENGINE

1

H624783

RADIATOR - Engine

1шт.

2

H632661

MOUNT - Radiator Upper

1шт.

3

H632679

MOUNT - Radiator Lower

1шт.

4

H353433

PAD - Mounting LH

2шт.

5

H353425

PAD - Mounting RH

2шт.

6

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

3шт.

7

195-521

WASHER,5/16", SAE

- Flat (5/16)

6шт.

8

H353383

WASHER

6шт.

9

H353409

BUSHING

5шт.

10

H353326

SPACER

3шт.

11

H353417

WASHER - Bushing

3шт.

12

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT NC HH C/L (5/16)

3шт.

13

H361394

RADIATOR HOSE,2.00" ID, SAE 20R4

Upper 2.00" ID, SAE 20R4

1шт.

14

H361386

RADIATOR HOSE,2.00" ID x 11.40", SAE 20R4

Lower 2.00" ID x 11.40", SAE 20R4

1шт.

15

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

4шт.

16

H343772

LARGE HOSE

BUSHING - Radiator Hose

2шт.

17

217-103

COCK, DRAIN

COCK - Drain

1шт.

18

H339374

CYLINDER END CAP

CAP - Radiator

1шт.
