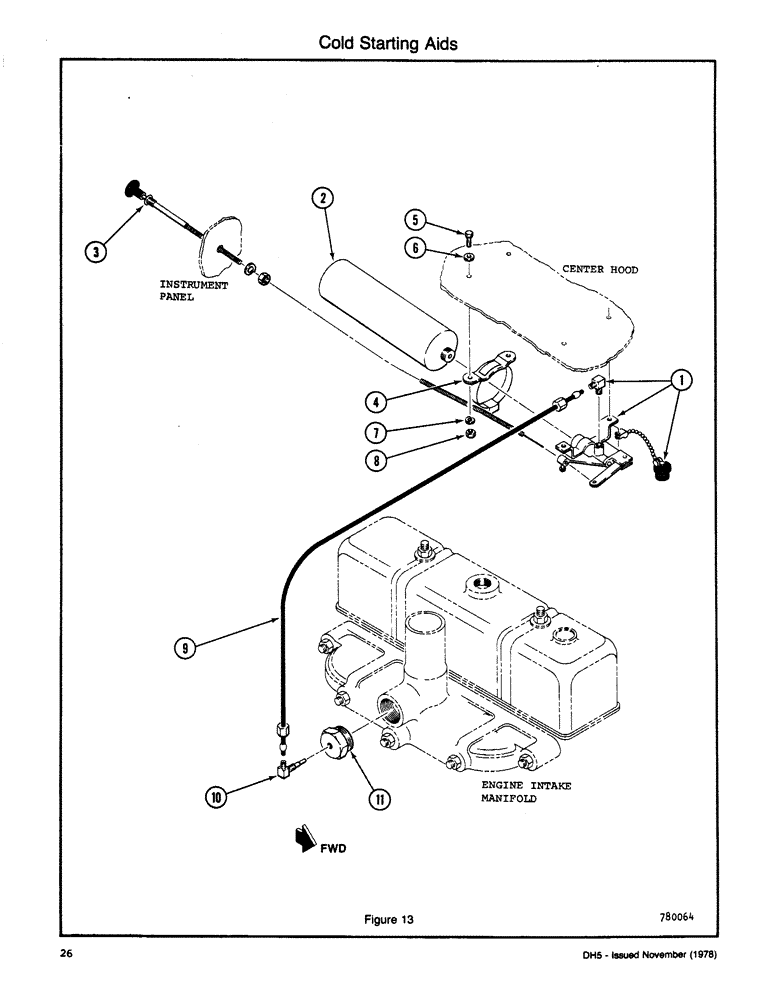

Запчасти Case DH5 (026) - COLD STARTING AIDS (10) - ENGINE

1

D55948

VALVE

ASSY - Actuator

1шт.

2

D55767

CYLINDER

- Ether

1шт.

3

D71332

CABLE

ASSY - Control

1шт.

4

D55949

BRACKET

CLAMP AND BRACKET - Cylinder

1шт.

5

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

6

195-102

WASHER,1/4"

- Flat (1/4)

4шт.

7

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

8

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

9

D55947

TUBE

ASSY

1шт.

10

D55946

JET

ASSY - Cold Start

1шт.

11

D54833

PLUG

- Manifold

1шт.
