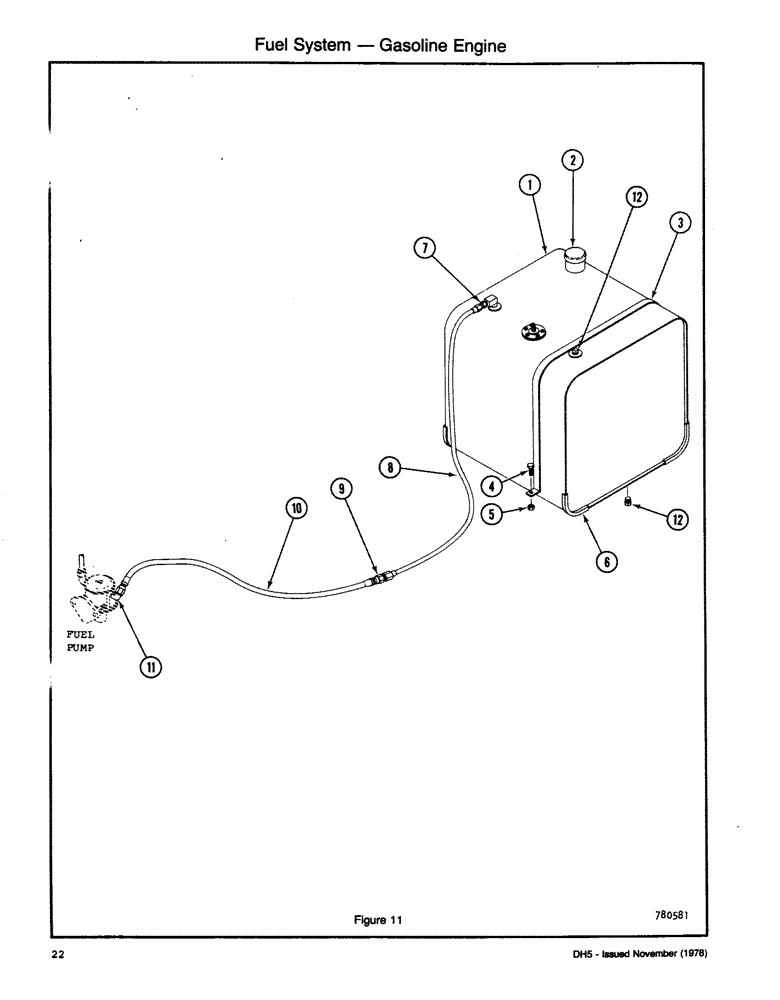

Запчасти Case DH5 (022) - FUEL SYSTEM - GASOLINE ENGINE (10) - ENGINE

1

H624676

FUEL TANK

TANK ASSY - Fuel

1шт.

For fuel sender, see Electrical System Figure 19.

1шт.

2

H151274

CYLINDER END CAP

CAP - Fuel

1шт.

3

H337063

STRAP - Fuel Tank

2шт.

4

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

5

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT NC HH C/L (5/16)

4шт.

6

D33500

LINING

TRIM - Fuel Tank

4шт.

7

222-803

HYD CONNECTOR,7/16"-20, 45º Fl x 1/4" NPT

CONNECTOR (1/4 MP & 7/16)

1шт.

8

H50302

LINE

HOSE - Fuel

1шт.

9

222-741

HYD CONNECTOR,7/16"-20 45 Degree Fl x 1/8" NPT Fem

CONNECTOR (1/8 Fm P & 7/16)

1шт.

10

H546002

LINE

HOSE - Fuel

1шт.

11

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

1шт.

12

221-843

PLUG,Hex Soc, 3/8"-18

- Pipe (3/8)

2шт.

H119628

MOUNTING CLIP

STRAP - Plastic Banding (not shown)

3шт.
