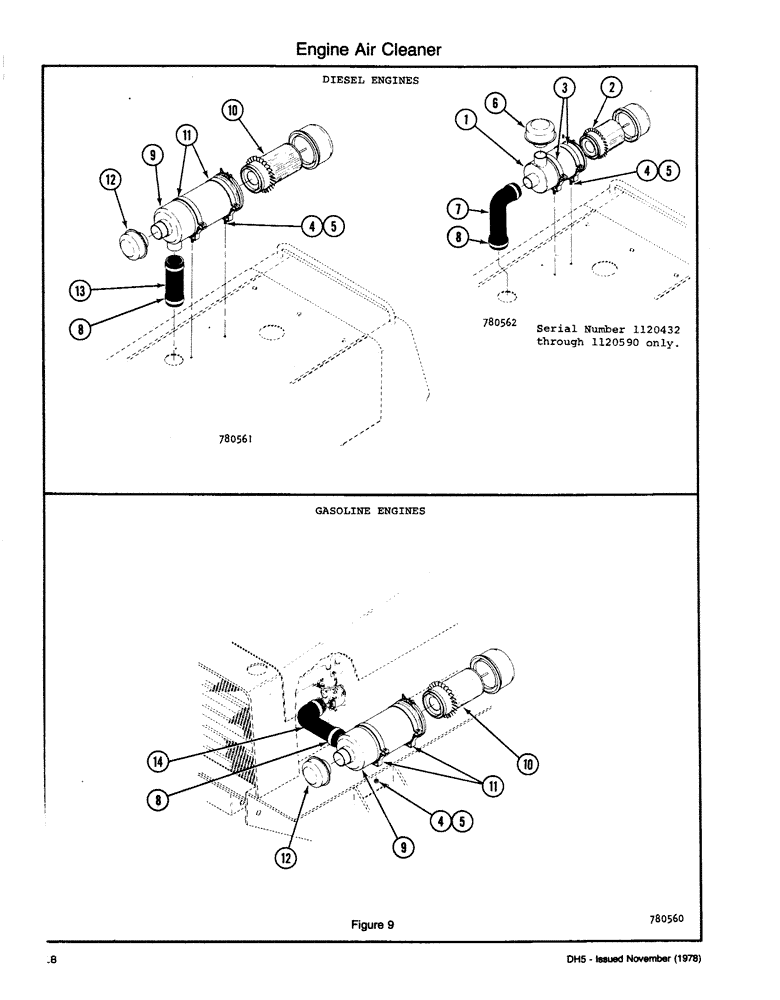

Запчасти Case DH5 (018) - ENGINE AIR CLEANER (10) - ENGINE

1

H152553

AIR CLEANER

1шт.

2

D48198

AIR CLEANER

ELEMENT

1шт.

3

D43713

BAND

- Mounting

2шт.

4

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

5

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT NC HH C/L (5/16)

4шт.

6

D22685

CAP

- Air Stack

1шт.

7

H339754

HOSE ASSY.

HOSE - Air Cleaner

1шт.

8

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

9

H129536

CLEANER

Air Cleaner

1шт.

10

F84998

FILTER, ELEMENT

ELEMENT

1шт.

11

L11247

BAND

- Mounting

2шт.

12

A61276

AIR CLEANER

CAP - Air Stack

1шт.

13

H367326

INTAKE AIR HOSE,57.20 mm ID x 203.20 mm, SAE 20R1

- Air Cleaner (Diesel) 57.20 mm ID x 203.20 mm, SAE 20R1

1шт.

14

H339754

HOSE ASSY.

HOSE - Air Cleaner (Gas)

1шт.
