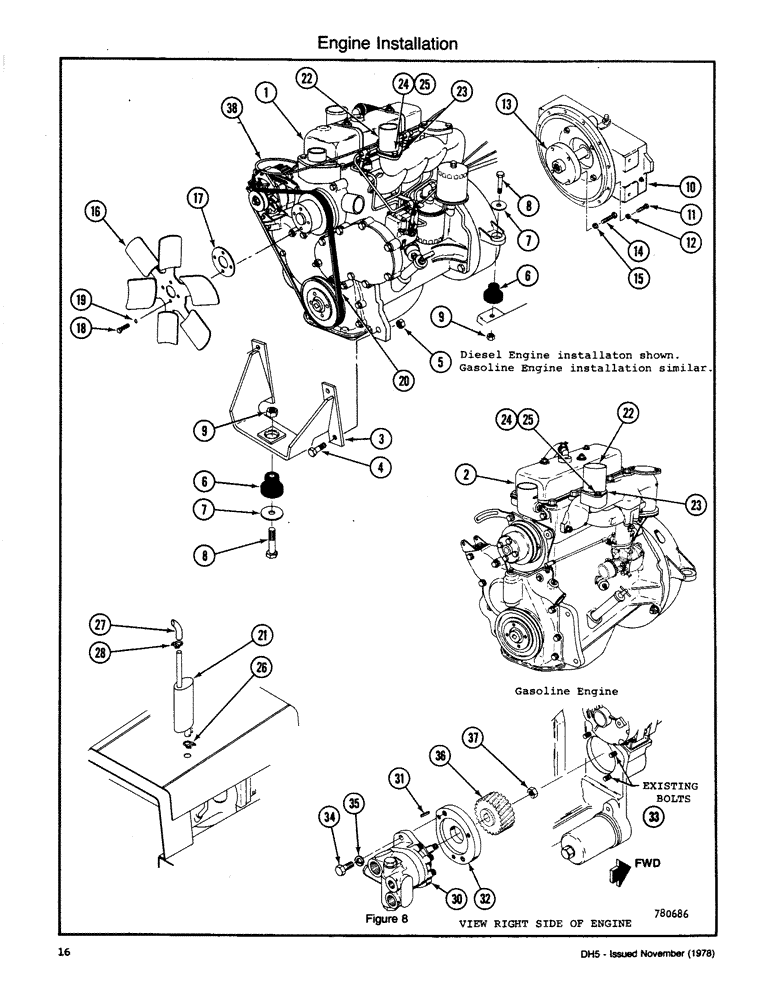

Запчасти Case DH5 (016) - ENGINE INSTALLATION (10) - ENGINE

1

ENGINE - Case 188 D, See 188 D catalog

1шт.

2

ENGINE - Case 188 G, See 188 G catalog

1шт.

3

D63930

BRACKET

ASSY - Front Engine Mount

1шт.

Ref #3A - D63931 Bracket w/Mount 06/20/96

1шт.

4

131-620

SPRING NUT,J, 1/4" - 20, 0.025" Thk

BOLT NC HH (5/8 x 2 1/4)

4шт.

5

131-1130

LOCK NUT,5/8"-11, GA

NUT NC HH C/L (5/8)

4шт.

6

A59516

RUBBER MOUNTING,63.5mm OD x 50.8mm L

MOUNT - Engine (rubber)

3шт.

7

D35009

WASHER

- Engine Mount

3шт.

8

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

3шт.

9

131-1130

LOCK NUT,5/8"-11, GA

NUT NC HH C/L (5/8)

3шт.

10

CASE ASSY - Gear Pump Drive (See Figure 34)

1шт.

11

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

12шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

13

H625582

PLATE ASSY.

PLATE ASSY - Drive

1шт.

14

114-330

BOLT,Hex, 7/16" - 20 x 1-3/4", Gr 8

NC HH (7/16 x 1 3/4) (Gr 8)

4шт.

15

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

16

D72215

FAN

- Pusher

1шт.

17

H337121

SPACER

- Fan

1шт.

18

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

19

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

20

H339341

BELT,47.00" L

Fan 47.00" L

1шт.

21

A39561

MUFFLER

1шт.

22

H625970

FLANGE

ASSY - Exhaust

1шт.

23

G46853

MANIFOLD GASKET

1шт.

24

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

25

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

2шт.

26

A27115

CLAMP

- Muffler

1шт.

27

A39571

PIPE, EXHAUST SYSTEM

EXTENSION - Muffler

1шт.

28

G45410

CLAMP

- Muffler

1шт.

29

187-1016

SCREW,Cross Truss Hd, #8 x 5/8"

- Self Tap (#8-18 x 1/2)(drain hole)

1шт.

30

PUMP - Steering (See Figure 38)

1шт.

31

H379156

KEY

1шт.

32

H322818

PLATE

ADAPTER - Plate

1шт.

33

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Not shown) (Used under head of existing bolts) 3/8"

3шт.

34

113-310

BOLT,Hex, 7/16" - 14 x 1", Gr 5

2шт.

35

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

36

H632067

GEAR WHEEL

GEAR - Steering Pump

1шт.

37

131-1119

LOCK NUT,7/16"-24, GA

NUT NF HH T/L (7/16)

1шт.

38

D68851

CABLE

- Tachometer

1шт.

Note - A39936 Dipstick, Engine Oil for the Case 188 Engine 06/20/96

1шт.
