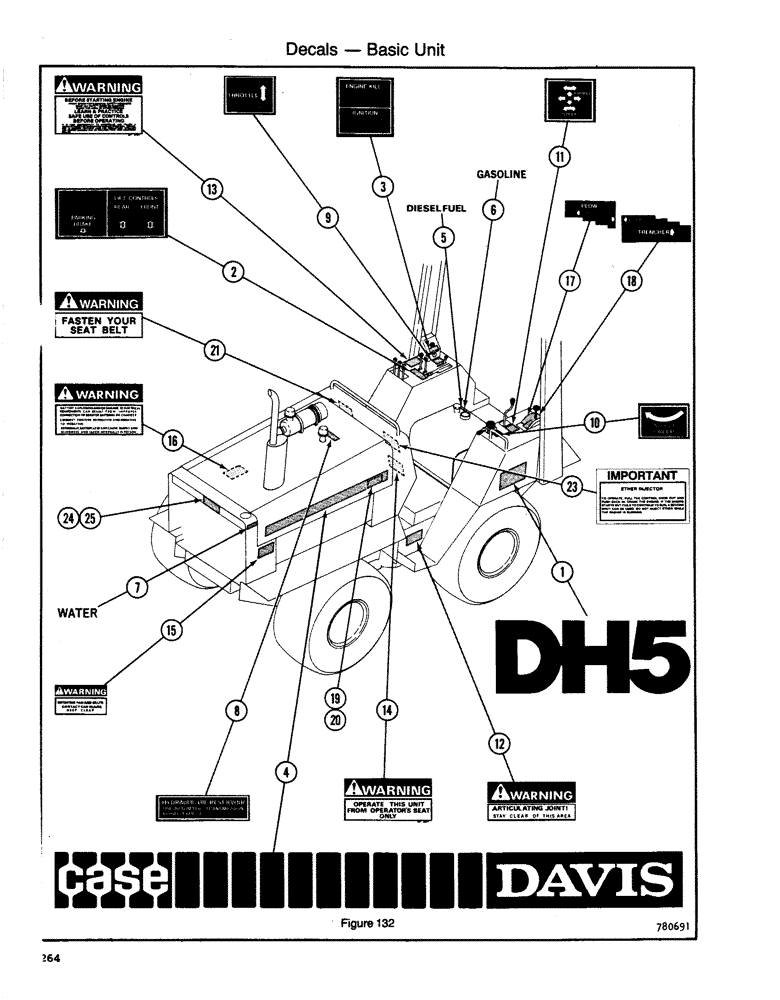

Запчасти Case DH5 (264) - DECALS - BASIC UNIT (90) - PLATFORM, CAB, BODYWORK AND DECALS

H631143

KIT

DECAL KIT - DH5

1шт.

1

321-4422

DECAL

- DH5

2шт.

2

321-4419

DECAL

- Parking & Lift Control

1шт.

3

321-4421

DECAL

- Engine Kill & Ignition

1шт.

4

321-3203

DECAL

- Case/Davis

2шт.

5

321-230

DECAL

- Diesel Fuel

1шт.

6

321-18

DECAL

- Gasoline

1шт.

7

321-719

DECAL

- Water

1шт.

8

H277723

DECAL

- Hydraulic Oil Type

1шт.

9

H286898

DECAL

- Throttle

1шт.

10

321-2989

DECAL

- Creep

1шт.

10a

H289694

DECAL

- mono stick units only

1шт.

11

H266627

DECAL

- Propulsion

1шт.

12

321-3218

DECAL

- Warning - Articulating Joint

2шт.

13

321-3705

DECAL

- Warning - Before Start Engine

1шт.

14

321-3905

DECAL

- Warning - Operate from Operator's Seat

1шт.

15

321-3596

DECAL

- Warning - Rotating Fan & Belts

1шт.

16

321-3707

DECAL

- Warning - Battery Explosion, Poison, etc.

1шт.

17

321-4740

DECAL

- Plow Control, Start Serial: 1120617

1шт.

18

321-4741

DECAL

- Trencher Control, Start Serial: 1120617

1шт.

19

NSS

NOT SOLD SEPARAT

PLATE - Serial

1шт.

20

168-59

SCREW,Type U, Rnd Hd, #2 x 1/4"

- Drive

2шт.

21

321-3217

DECAL

- Warning - Fasten Seat Belt

1шт.

22

H266577

DECAL

- Caution/Tool Control (not shown), Serial Range: 1120432-1120616

1шт.

23

321-5003

DECAL

- Important - Ether Injector

1шт.

24

321-4739

EMBLEM

MEDALLION - CASE

1шт.

Not available until after January 1, 1979.

1шт.

25

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - Palnut

2шт.

Not available until after January 1, 1979.

1шт.
