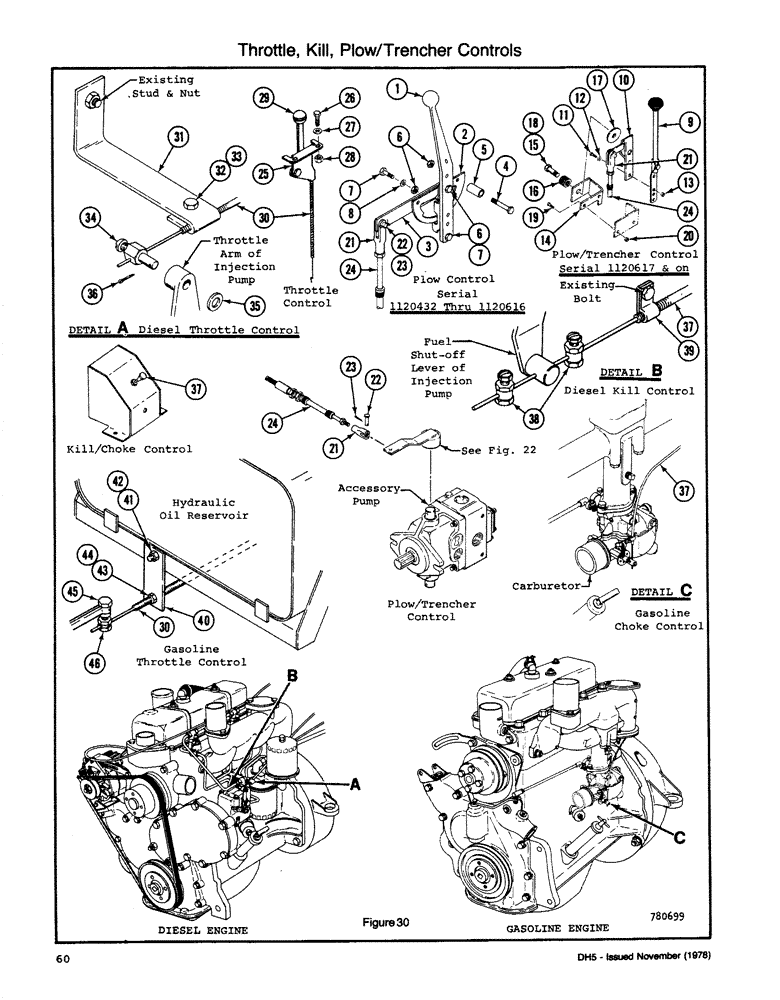

Запчасти Case DH5 (060) - THROTTLE, KILL, PLOW/TRENCHER CONTROLS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

H338111

HANDLE

1шт.

2

H629436

CONTROL

- Quadrestat

1шт.

3

H323683

LINK

1шт.

4

113-132

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

NC HH (1/4 x 1 3/4)

2шт.

5

H179259

SPACER

2шт.

6

113-1180

NUT NC HH C/L (1/4)

6шт.

7

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

8

195-518

WASHER,1/4", SAE

- Flat (1/4)

2шт.

9

H639955

HANDLE

ASSY - Plow/Trench

1шт.

10

H637454

PLATE ASSY - Friction

1шт.

11

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

12

195-518

WASHER,1/4", SAE

- Flat (1/4)

2шт.

13

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

14

H637462

BRACKET ASSY - Mounting

1шт.

15

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

16

H217430

SPRING

1шт.

17

H365403

DISC - Friction

1шт.

18

86632558

JAM NUT,Jam, 1/2"-13, G5

NUT NC HH C/L (1/2)

1шт.

19

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

20

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

21

H44198

YOKE

END - Clevis

2шт.

22

H44206

CLEVIS COUPLING,7.94mm OD x 27.78mm L

PIN - Clevis (5/16 x 1)

2шт.

23

132-334

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

24

H337659

CABLE PULLING GRIP

CABLE - Control

1шт.

25

H581736

CONTROL BLOCK

CONTROL ASSY - Throttle

1шт.

26

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

27

195-518

WASHER,1/4", SAE

- Flat (1/4)

2шт.

28

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

29

H244434

KNOB

1шт.

30

H337543

CABLE

- Throttle

1шт.

31

H329763

BRACKET

- Throttle Cable - Diesel

1шт.

32

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Diesel Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

33

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, , Diesel 1/4"-20, GA

1шт.

34

H564047

CONTROL

FITTING - Core - Diesel

1шт.

35

195-518

WASHER,1/4", SAE

- Flat (1/4) - Diesel

1шт.

36

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), , Diesel 3/32" x 3/4"

1шт.

37

H337535

CABLE

- Kill/Choke

1шт.

38

H42796

STOP

- Wire - Diesel

2шт.

39

H32698

CLIP

CLAMP - Wire - Diesel

1шт.

40

H218040

PLATE - Throttle Support - Gas

1шт.

41

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Gas Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

42

230-4216

LOCK NUT,3/8"-16, GA

NUT NC HH C/L (3/8) - Gas

1шт.

43

H99457

PIPE CLAMP

NUT - Conduit - Gas

1шт.

44

86585245

SPECIAL NUT,JAM, 5/8" - 18

- Jam NC HH (3/8) - Gas

1шт.

45

H372318

BOLT - Throttle - Gas

1шт.

46

425-145

JAM NUT,Jam, 5/16"-18, G5

Gas Jam, 5/16"-18, G5

3шт.
