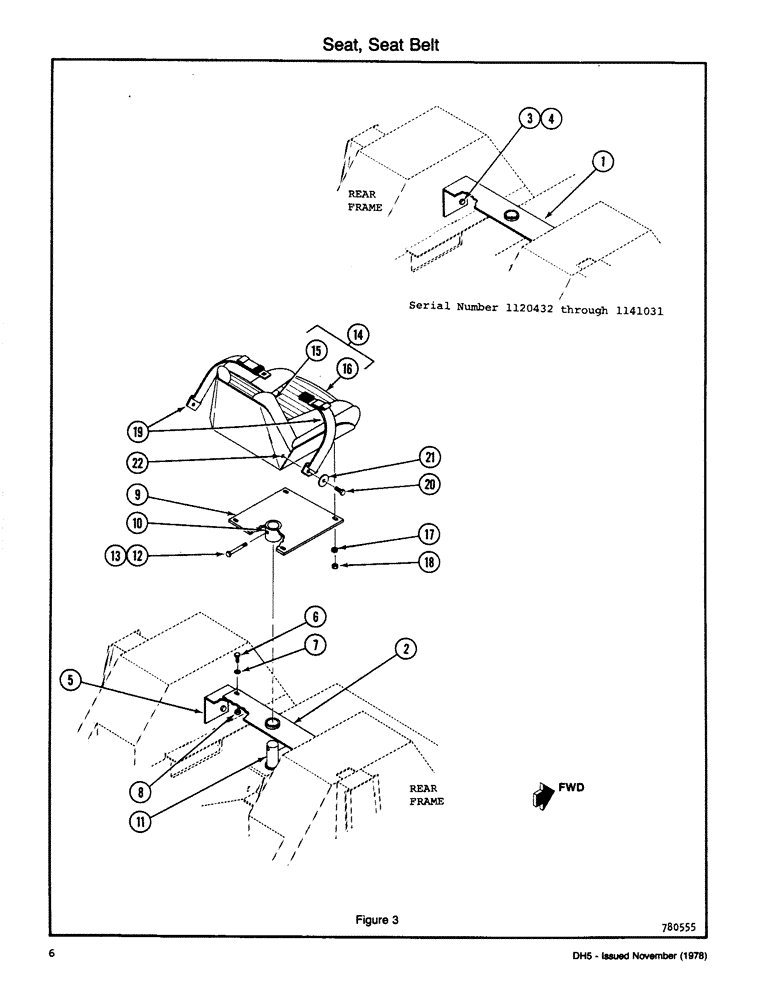

Запчасти Case DH5 (006) - SEAT, SEAT BELT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

H624965

MOUNT ASSY - Seat, DH5 serial 1120432 through 1141031

1шт.

Interchangeable as a set only.

1шт.

2

H635607

MOUNT ASSY - Seat, DH5 serial 1141032 and after

1шт.

Interchangeable as a set only.

1шт.

3

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

4

131-1182

LOCK NUT,1/2"-13, GA

NUT NC HH C/L (1/2)

4шт.

5

H360198

ANGLE - Seat Mount, DH5 serial 1141032 and after

1шт.

Interchangeable as a set only.

1шт.

6

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

DH5 serial 1141032 and after Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

Interchangeable as a set only.

1шт.

7

195-533

WASHER,1/2", SAE

- Flat (1/2) DH5 serial 1141032 and after

2шт.

Interchangeable as a set only.

1шт.

8

131-1182

LOCK NUT,1/2"-13, GA

NUT NC HH C/L (1/2) DH5 serial 1141032 and after

2шт.

Interchangeable as a set only.

1шт.

9

H623496

SEAT

PLATE ASSY - Seat Mount

1шт.

10

H315549

BUSHING

1шт.

11

H315531

AXLE PIN

PIN - Seat Mount

1шт.

12

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

1шт.

13

230-4216

LOCK NUT,3/8"-16, GA

NUT NC HH C/L (3/8)

1шт.

14

H594556

SEAT

ASSY

1шт.

15

H297515

CUSHION ASSY.

BACK ASSY - Seat

1шт.

16

H297507

SEAT

BOTTOM ASSY - Seat

1шт.

17

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

18

H736066

NUT

NC HH (5/16)(Grd 5)

4шт.

19

H594564

SAFETY BELT ,3.00" W

3.00" W

1шт.

20

114-302

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5, Full Thd

NC HH (7/16 x 1 1/4)(Grd 5)

2шт.

21

H277566

WASHER

- Special

2шт.

22

131-1170

LOCK NUT,7/16"-20, GA

NUT, LOCK, 7/16"-20, GA

2шт.
