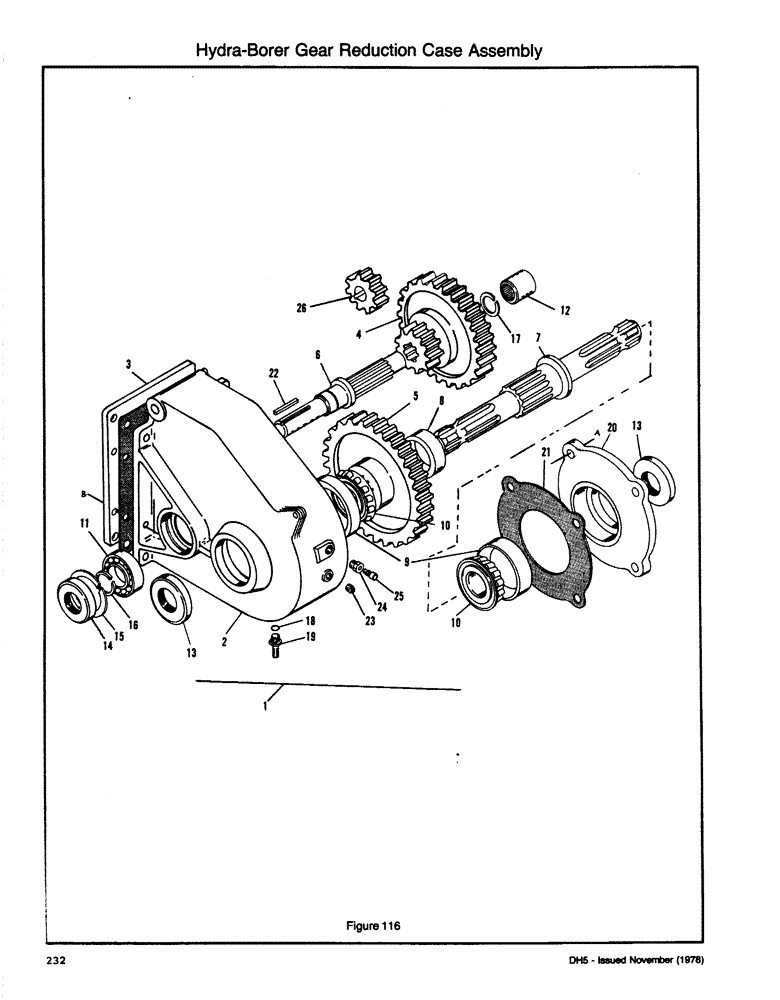

Запчасти Case DH5 (232) - HYDRA-BORER GEAR REDUCTION CASE ASSEMBLY (89) - TOOLS

1

H511105

GEARBOX ASSY

Gear Reduction Case Asm

1шт.

2

H69104

HOUSING

Gear Case

1шт.

3

H69146

COVER

Plate

1шт.

4

H69120

GEAR

Counter Gear

1шт.

5

H69138

GEAR

Output Gear

1шт.

6

H69153

SHAFT

Countershaft

1шт.

7

H69161

SHAFT

Output Shaft

1шт.

8

H69179

SPACER

Outer Gear Spacer

1шт.

9

A30580

BEARING CUP

2шт.

10

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

Bearing Cone

2шт.

11

40040

BALL BEARING,1.1811" ID x 2.4409" OD x 0.6299"

Ball Bearing - Countershaft

1шт.

12

A28210

BEARING, NEEDLE,1" ID x 1.25" OD x 1"

Needle Bearing - Countershaft

1шт.

13

VT2661

SEAL

Oil Seal - Output Shaft

2шт.

14

F9473

OIL SEAL

- Countershaft

1шт.

15

H752733

OIL SEAL

Snap Ring

1шт.

16

F62020

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

1шт.

17

B18208

SNAP RING,#100, Ext

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O Ring - Anchor Plug

1шт.

19

H69187

STUD

Anchor Plug

1шт.

20

H69195

GASKET

Cover

1шт.

21

H69203

GASKET

Shims

1шт.

22

T25070

KEY

(1/4" Sq. x 2")

1шт.

23

221-39

PLUG

(1/8" Pipe)

2шт.

24

221-85

REDUCER,Hex, 3/8" x 1/8" NPT

Bushing (3/8" To 1/8" Pipe)

1шт.

25

L33264

BREATHER

Air Breather

1шт.

26

H29223

SPUR

Motor Gear

1шт.
