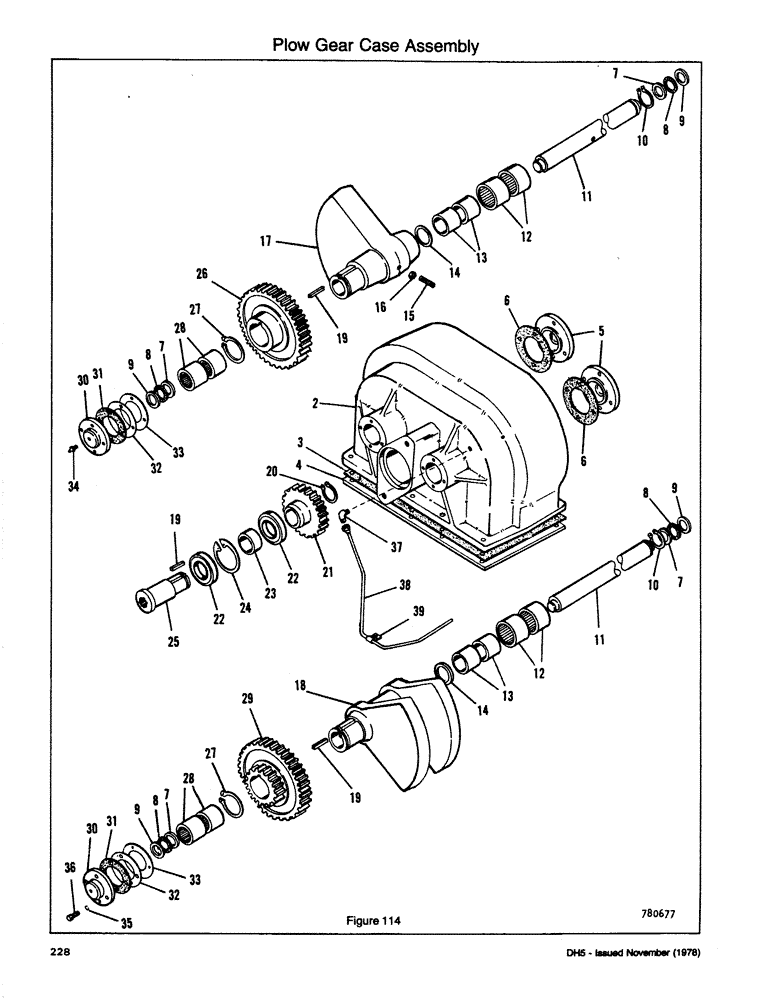

Запчасти Case DH5 (228) - PLOW GEAR CASE ASSEMBLY (89) - TOOLS

1

H601989

GEARBOX ASSY

Gear Case Assy (Spec. No P48SD01 & Up)

1шт.

2

H205559

CASE

Gear Case

1шт.

3

H189910

GASKET

1шт.

4

H202176

LARGE PLATE

Cover Plate

1шт.

5

H189811

BEARING CAP

2шт.

6

H189852

GASKET

2шт.

7

H189845

WASHER

Thrust Washer

8шт.

8

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST

4шт.

9

H189837

WASHER

Thrust Washer (.095)

1шт.

10

R13338

SNAP RING,#150, Ext

Ring, Snap, #150, Ext

2шт.

11

H189761

SHAFT

2шт.

12

H753152

NEEDLE BEARING

Bearing

4шт.

13

H753160

BEARING CUP

Bearing Race

4шт.

14

H189803

SPACER

2шт.

15

178-289

SET SCREW,Hex Soc, 1/2"-13 x 2"

(1/2" x 2" NC - Dog Point)

2шт.

16

129-145

JAM NUT,Jam, 1/2"-13, G5

2шт.

17

H189506

WEIGHT

Counterweight

1шт.

18

H189514

WEIGHT

Counterweight

1шт.

19

H36384

KEY

(1/4" Sq. x 1 3/8")

3шт.

20

R13338

SNAP RING,#150, Ext

Ring, Snap, #150, Ext

1шт.

21

H189787

GEAR

Drive Gear

1шт.

22

H753194

BEARING

2шт.

23

H189795

SPACER

1шт.

24

49477

RING, SNAP

3.156", Int, #315

1шт.

25

H284364

SHAFT

Drive Shaft

1шт.

26

H189746

GEAR WHEEL

Counterweight Gear

1шт.

27

F40807

SNAP RING,#225, Ext

Ring, Snap, #225, Ext

2шт.

28

H753145

NEEDLE BEARING

Bearing

4шт.

29

H189753

GEAR

Counterweight Gear

1шт.

30

H189829

CAP

Bearing Cap

2шт.

31

H189860

GASKET

2шт.

32

H189878

SHIM,.005" Thk

1шт.

33

H189886

SHIM,.015" Thk

1шт.

34

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

4шт.

35

92-5

LOCK WASHER,5/16"

16шт.

36

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

16шт.

37

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

1шт.

38

H546275

TUBE,0.25" OD x 18" L

Oil Relief Tube

1шт.

39

H151753

CLAMP

Tube Clamp

1шт.
