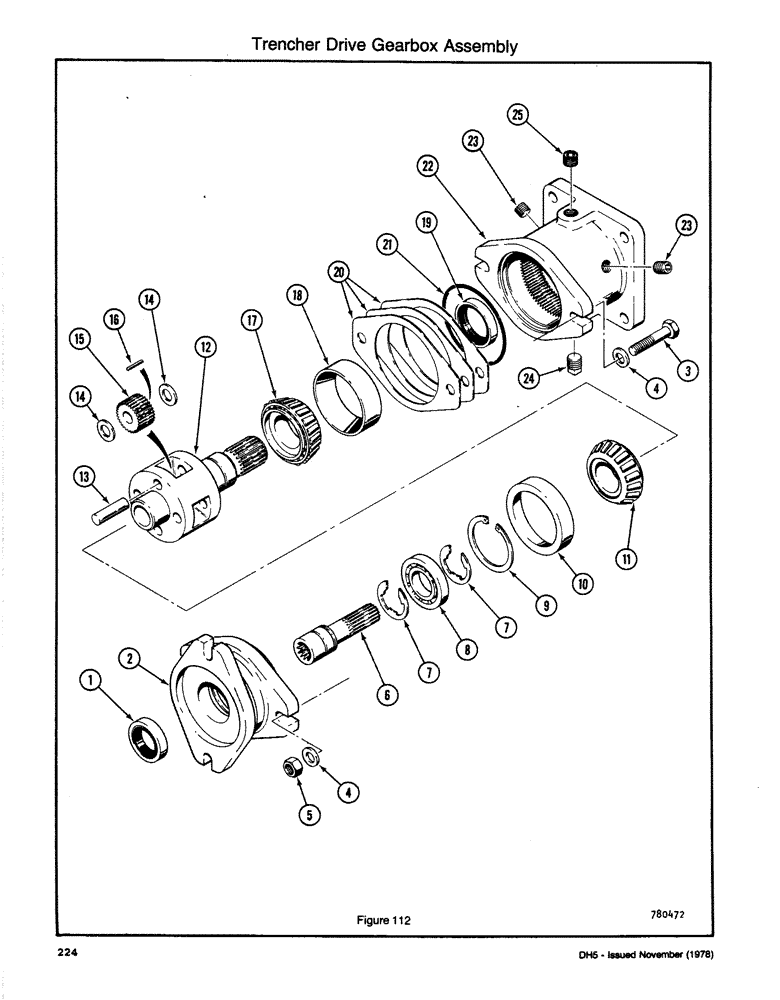

Запчасти Case DH5 (224) - TRENCHER DRIVE GEARBOX ASSEMBLY (89) - TOOLS

D78121

GEAR

HEAD ASSEMBLY

1шт.

1

D71214

SEAL

- Shaft

1шт.

2

D71213

ADAPTER

- Gear Head

1шт.

3

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- NC HH (1/2 x 2 1/4)

2шт.

4

195-533

WASHER,1/2", SAE

- Flat (1/2)

4шт.

5

25-108

NUT,1/2"-13, G5

- NC Hex (1/2)

2шт.

6

D71225

GEAR

SHAFT - Planetary

1шт.

7

D21856

SNAP RING,#X137, 1.268" Dia, E-Type

Ring, Retaining, #X137, 1.268" Dia, E-Type

2шт.

8

H753103

BALL BEARING

BEARING

1шт.

9

A10506

SNAP RING,2.44", Int, #244

Ring, Snap, 2.44", Int, #244

1шт.

10

A13161

BEARING CUP,88.5mm OD x 17.46mm W

CUP - Bearing

1шт.

11

D71216

ROLLER BEARING,1.5" ID x 0.933"

CONE - Bearing

1шт.

12

NSS

NOT SOLD SEPARAT

PLANETARY

1шт.

13

D71221

SHAFT

- Planetary

4шт.

14

D71488

WASHER

- Thrust

8шт.

15

D71223

GEAR WHEEL

GEAR - Planetary

4шт.

16

D71489

NEEDLE

Bearing, Roller, 22 per gear

88шт.

17

A30116

ROLLER BEARING,1.625" ID x 1.1875"

CONE - Bearing

1шт.

18

D44322

BEARING CUP,3.375" OD x 0.9375"

CUP - Bearing

1шт.

19

AN16796

SEAL - Shaft

1шт.

20

D71217

SHIM,.003" Thk

(0.0762 mm) .003" Thk

1шт.

20

D71218

SHIM,.007" Thk

- 0.012 thick (0.3048 mm)

1шт.

20

D71219

SHIM,.012" Thk

- 0.007 thick (0.1778 mm)

1шт.

20

D71220

SHIM,.016" Thk

(0.4064 mm) .016" Thk

1шт.

21

S76846

O-RING,4" ID x 4-3/16" OD x 3/32"

SEAL - O Ring

1шт.

22

D77614

HOUSING

- Gear Head

1шт.

23

221-841

PLUG

- hex Socket (1/4 NPT)

2шт.

24

221-672

DRAIN PLUG,Sq Hd, 3/8" NPT

PLUG - Sq Head Magnetic (3/8 NPT)

1шт.

25

221-843

PLUG,Hex Soc, 3/8"-18

- Hex Socket (3/8 NPT)

1шт.
