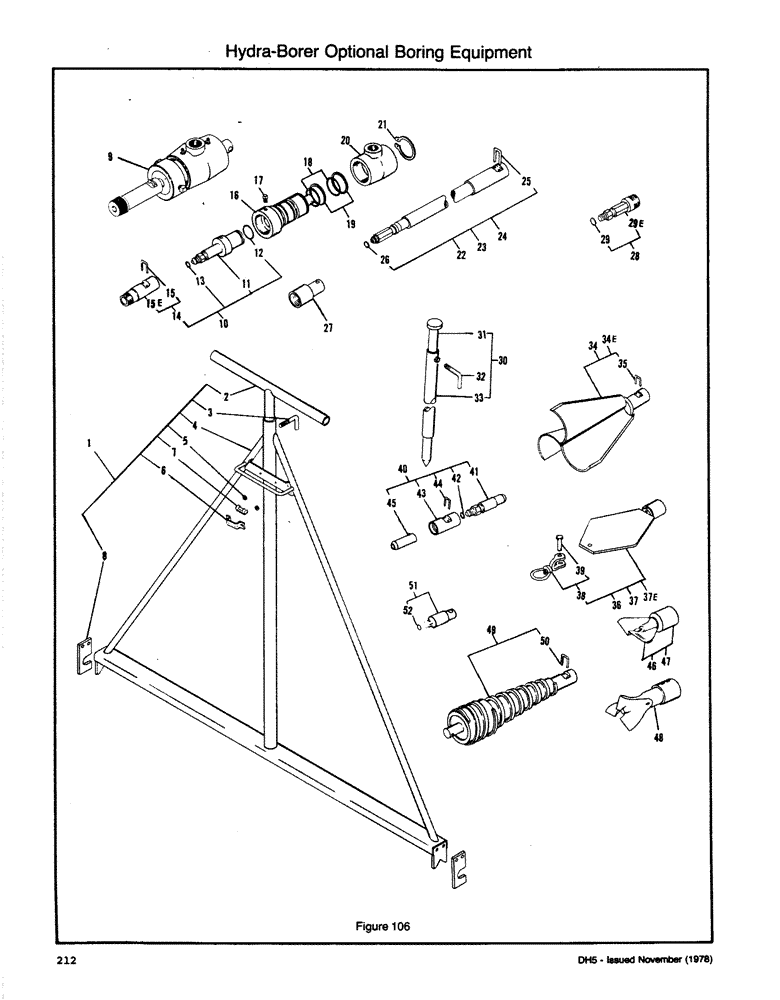

Запчасти Case DH5 (212) - HYDRA-BORER OPTIONAL BORING EQUIPMENT (89) - TOOLS

1

H601716

KIT

Drill Stem Level

1шт.

2

H521385

HANDLE

1шт.

3

H71472

TUBE,0.375" OD x 3.25, 2.25" L

Adjusting Handle

1шт.

4

H521377

STEM

Frame Asm

1шт.

5

H46383

Spacer

2шт.

6

H46375

Bracket - Level - Guide

1шт.

7

H346015

LEVEL

1шт.

8

H92544

GUIDE

Drill Stem Guide

2шт.

9

H522367

COUPLING

Water Coupler Asm

1шт.

10

H601765

Adapter Asm

1шт.

11

H522359

ADAPTER

- Water Coupler

1шт.

12

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

O Ring

1шт.

13

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

14

H601773

Drill Stem Coupler

1шт.

15

H94961

STAPLE

Retainer Clip

1шт.

15e

H522375

ADAPTER

1шт.

16

H84236

COUPLING

Coupler

1шт.

17

85-612

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

Screw (3/8" x 3/4" NC Sq Head Set)

3шт.

18

R20570

O-RING,0.103" Thk x 1.799" ID, -133, Cl 5, 75 Duro

O Ring

2шт.

19

H749317

OIL SEAL

Sirvon Ring

2шт.

20

H84228

RING

Water Ring

1шт.

21

F40807

SNAP RING,#225, Ext

Ring, Snap, #225, Ext

1шт.

22

H601732

STEM

Drill Stem - 5 Ft.

1шт.

23

H601740

STEM

Drill Stem - 10 Ft.

1шт.

24

H601757

Drill Stem - 20 Ft.

1шт.

25

H94961

STAPLE

Retainer Clip

1шт.

26

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

27

H83352

ADAPTER

- 1" Pipe To U-Joint

1шт.

28

H601781

TUBE NUT

Male Adapter

1шт.

29

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

29e

H522383

ADAPTER

1шт.

30

H511212

Guide Anchor Asm

1шт.

31

H511121

GUIDE

Anchor Shaft

1шт.

32

H71472

TUBE,0.375" OD x 3.25, 2.25" L

Adjusting Handle

1шт.

33

H511139

TUBE

Guide Anchor Tube

1шт.

34

H601815

REAMER

Backreamer - 8"

1шт.

34e

H601823

Backreamer - 12"

1шт.

35

H94961

STAPLE

Retainer Clip

1шт.

36

H601682

REAMER

Fish Plate Reamer - 4"

1шт.

37

H601690

REAMER

Fish Plate Reamer - 6"

1шт.

37e

H601708

REAMER

Fish Plate Reamer - 8"

1шт.

38

H88195

FASTENER

Swivel

1шт.

39

H32284

AXLE PIN

Clevis Pin

1шт.

40

H522300

Drill Stem Coupler

1шт.

41

H94938

COUPLING

Male Coupling

1шт.

42

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

43

H522318

COUPLING

Female Coupling

1шт.

44

H94961

STAPLE

Retainer Clip

1шт.

45

H94581

PLUG

Stub Shaft

1шт.

46

H518837

BIT

Drill Bit - 2" - 2 Blade

1шт.

47

H518910

BIT

Drill Bit - 2" - 3 Blade

1шт.

48

H519249

BIT

Drill Bit - 3" - 3 Blade

1шт.

49

H601807

Compaction Reamer - 3 3/4"

1шт.

per print order 1 - H6746888 & 1 - H94961

1шт.

50

H94961

STAPLE

Retainer Clip

1шт.

51

H601799

Dry Adapter - Drill Stem

1шт.

52

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

53

H522425

Compaction Bit Asm - 2"

1шт.

54

H94961

STAPLE

Retainer Clip

1шт.

55

61-628

HEX SOC SCREW,3/8"-16 x 1 3/4"

Set Screw (3/8" x 1 3/4" NC)

2шт.

56

H85233

COUPLING

Coupler

1шт.

57

H522433

BIT

Compaction Bit

1шт.

58

H84988

BIT

Compaction Bit End

1шт.
