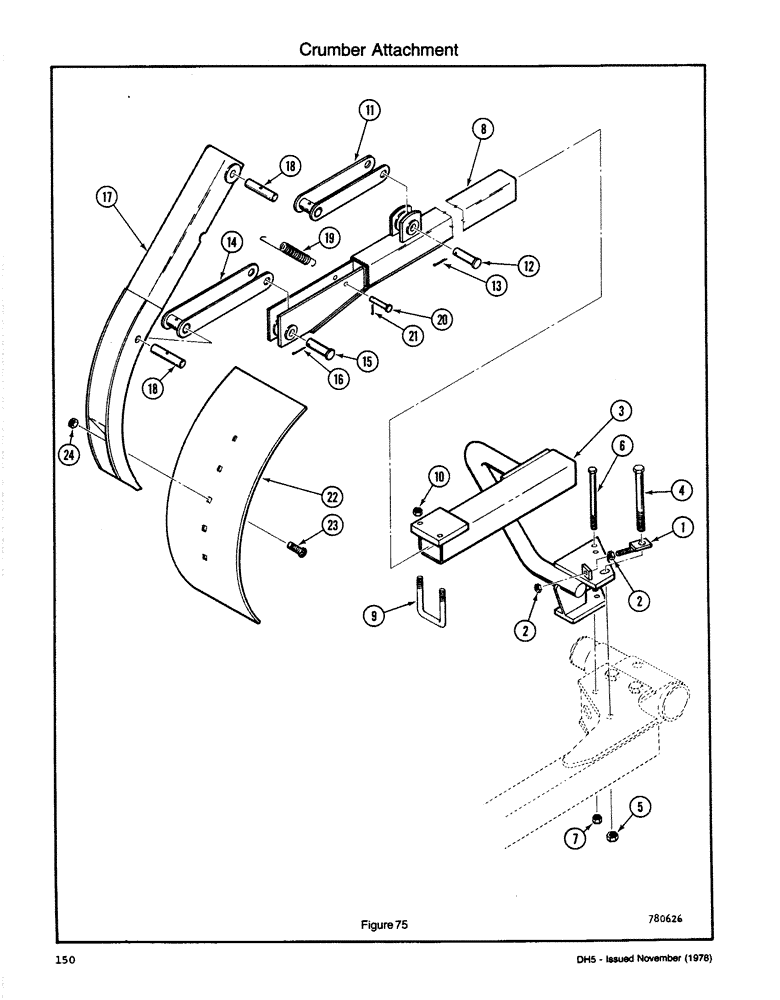

Запчасти Case DH5 (150) - CRUMBER ATTACHMENT (89) - TOOLS

1

H545608

BOLT

BOLT - Adjusting

1шт.

2

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT - NC Hex Jam (3/8)

2шт.

3

H618561

MOUNTING - Crumber Boom

1шт.

4

113-654

BOLT,Hex, 5/8" - 11 x 7", Gr 5

1шт.

5

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

1шт.

6

113-448

BOLT,Hex, 1/2" - 13 x 7", Gr 5

1шт.

7

131-1182

LOCK NUT,1/2"-13, GA

NUT - NC Hex C/L (1/2)

1шт.

8

H542902

BOOM

- Outer Crumber (45")

1шт.

8

H538553

BOOM

- Outer Crumber (54")

1шт.

8

H643569

BOOM

- Outer Crumber (72")

1шт.

9

H54312

BOLT

U-BOLT

2шт.

10

131-1182

LOCK NUT,1/2"-13, GA

NUT - NC Hex C/L (1/2)

4шт.

11

H536664

DRAG LINK

LINK - Short

1шт.

12

H54320

AXLE PIN,19.05mm OD x 79.38mm L

PIN - Clevis (3/4 x 2 7/8)

1шт.

13

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

1шт.

14

H532440

DRAG LINK

LINK - Long

1шт.

15

H54320

AXLE PIN,19.05mm OD x 79.38mm L

PIN - Clevis (3/4 x 2 7/8)

1шт.

16

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

1шт.

17

H536656

BRACKET

MOUNTING - Crumber Blade

1шт.

18

H118109

AXLE PIN,19.05mm OD x 92.08mm L

PIN - Clevis (3/4 x 3 5/8)

2шт.

132-345

COTTER PIN,3/16" x 1 1/2"

PIN, SPLIT (COTTER), 3/16" x 1 1/2"

2шт.

19

H128280

VALVE SPRING

SPRING

1шт.

20

H54395

AXLE PIN,9.47mm OD x 60.33mm L

PIN - Clevis (3/8 x 2 1/4)

1шт.

21

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

22

H127480

BLADE

- Crumber - 5"

1шт.

22

H60087

BLADE

- Crumber - 7"

1шт.

22

H60103

BLADE

- Crumber - 9"

1шт.

22

H60129

BLADE

- Crumber - 11"

1шт.

23

111-520

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G2

BOLT - NC Carriage (1/2 x 1 1/4)

2шт.

24

131-1182

LOCK NUT,1/2"-13, GA

NUT - NC Hex C/L (1/2)

2шт.
