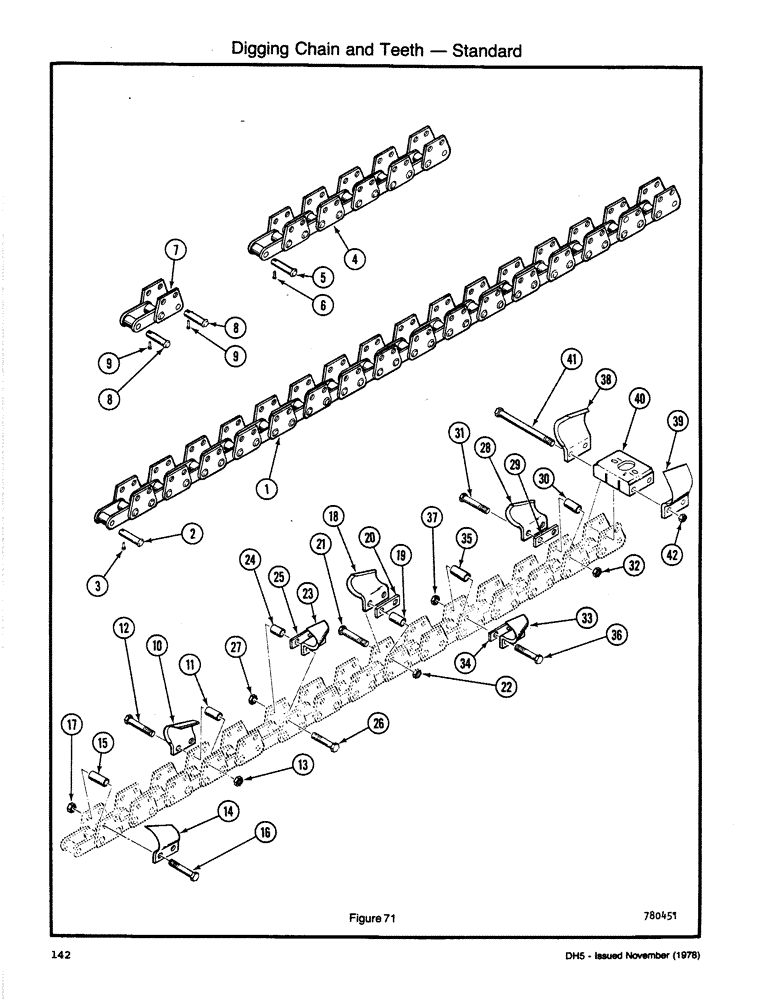

Запчасти Case DH5 (142) - DIGGING CHAIN AND TEETH - STANDARD (89) - TOOLS

1

H542068

CHAIN (CE)

CHAIN ASSEMBLY - 48 Pitches

1шт.

To order chain for 3 ft. boom, order one each Ref. 1 and 4. To order chain for 4 ft. boom, order one each Ref. 1 and 7 and two each Ref. 4. To order chain for 5 ft. boom, order one each Ref. 1 and three each Ref. 4.

1шт.

2

H145011

AXLE PIN

PIN - Connector

1шт.

3

H170399

LOCK PIN

PIN - Keeper

1шт.

4

H538512

CHAIN (CE)

CHAIN ASSEMBLY - 10 Pitches

1шт.

To order chain for 3 ft. boom, order one each Ref. 1 and 4. To order chain for 4 ft. boom, order one each Ref. 1 and 7 and two each Ref. 4. To order chain for 5 ft. boom, order one each Ref. 1 and three each Ref. 4.

1шт.

5

H145011

AXLE PIN

PIN - Connector

1шт.

6

H170399

LOCK PIN

PIN _ Keeper

1шт.

7

H543983

CHAIN (CE)

CHAIN ASSEMBLY - (Repair Section) - 2 Pitches

1шт.

To order chain for 3 ft. boom, order one each Ref. 1 and 4. To order chain for 4 ft. boom, order one each Ref. 1 and 7 and two each Ref. 4. To order chain for 5 ft. boom, order one each Ref. 1 and three each Ref. 4.

1шт.

8

H145011

AXLE PIN

PIN - Connector

2шт.

9

H170399

LOCK PIN

PIN - Keeper

1шт.

10

H151241

TOOTH

- Mud R/H

1шт.

11

H138008

SPACER

- Long

2шт.

12

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

2шт.

13

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

2шт.

14

H151258

TOOTH

- Mud L/H

1шт.

15

H138008

SPACER

- Long

2шт.

16

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

2шт.

17

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

2шт.

18

H131268

TOOTH

- Standard R/H

1шт.

19

H138016

SPACER

- Short

2шт.

20

H130815

SPACER

- Flat

1шт.

21

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

22

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

2шт.

23

H131276

TOOTH

- Standard L/H

1шт.

24

H138016

SPACER

- Short

2шт.

25

H130815

SPACER

- Flat

1шт.

26

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

27

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

2шт.

28

H131268

TOOTH

- Standard R/H

1шт.

29

H130815

SPACER

- Flat

1шт.

30

H138008

SPACER

- Long

2шт.

31

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

2шт.

32

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

2шт.

33

H131276

TOOTH

- Standard L/H

1шт.

34

H130815

SPACER

- Flat

1шт.

35

H138008

SPACER

- Long

2шт.

36

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

2шт.

37

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

2шт.

H544742

SPARE PART

DIGGING TOOTH ASSEMBLY - 10"

1шт.

38

H131268

TOOTH

- Standard R/H

1шт.

39

H131276

TOOTH

- Standard L/H

1шт.

40

H148031

SUPPORT

BRACKET - Tooth Mounting - 10"

1шт.

41

113-650

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

2шт.

42

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

2шт.
