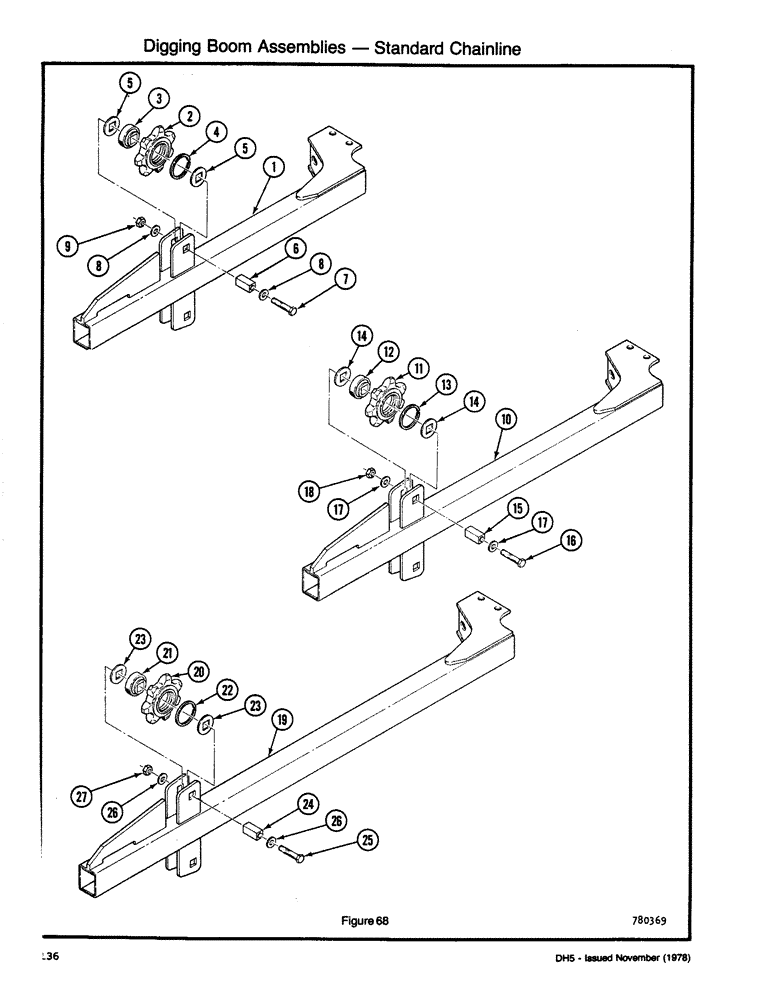

Запчасти Case DH5 (136) - DIGGING BOOM ASSEMBLIES - STANDARD CHAINLINE (89) - TOOLS

H552976

BOOM

ASSEMBLY - 3' Depth

1шт.

1

H552778

BOOM

WELDMENT - 3' Depth

1шт.

H531251

PINION

SPROCKET ASSEMBLY

2шт.

2

H115683

DRIVE SPROCKET

SPROCKET

1шт.

3

H747139

BALL BEARING

BEARING

1шт.

4

H33837

RING

- Retainer

1шт.

5

H117606

WASHER

- Boom Idler

2шт.

6

H251033

BOOM

SHAFT - Bearing

1шт.

7

113-627

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

1шт.

8

195-108

WASHER,5/8"

- Wrought (5/8)

2шт.

9

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

1шт.

H634519

BOOM

ASSEMBLY - 4' Depth

1шт.

10

H634329

BOOM

WELDMENT - 5' Depth

1шт.

H531251

PINION

SPROCKET ASSEMBLY

2шт.

11

H115683

DRIVE SPROCKET

SPROCKET

1шт.

12

H747139

BALL BEARING

BEARING

1шт.

13

H33837

RING

- Retainer

1шт.

14

H117606

WASHER

- Boom Idler

2шт.

15

H251033

BOOM

SHAFT - Bearing

1шт.

16

113-627

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

1шт.

17

195-108

WASHER,5/8"

- Wrought (5/8)

2шт.

18

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

1шт.

H634527

BOOM

ASSEMBLY - 5' Depth

1шт.

19

H634337

BOOM

WELDMENT - 5' Depth

1шт.

H531251

PINION

SPROCKET ASSEMBLY

2шт.

20

H115683

DRIVE SPROCKET

SPROCKET

1шт.

21

H747139

BALL BEARING

BEARING

1шт.

22

H33837

RING

- Retainer

1шт.

23

H117606

WASHER

- Boom Idler

2шт.

24

H251033

BOOM

SHAFT - Bearing

1шт.

25

113-627

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

1шт.

26

195-108

WASHER,5/8"

- Wrought (5/8)

2шт.

27

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

1шт.
