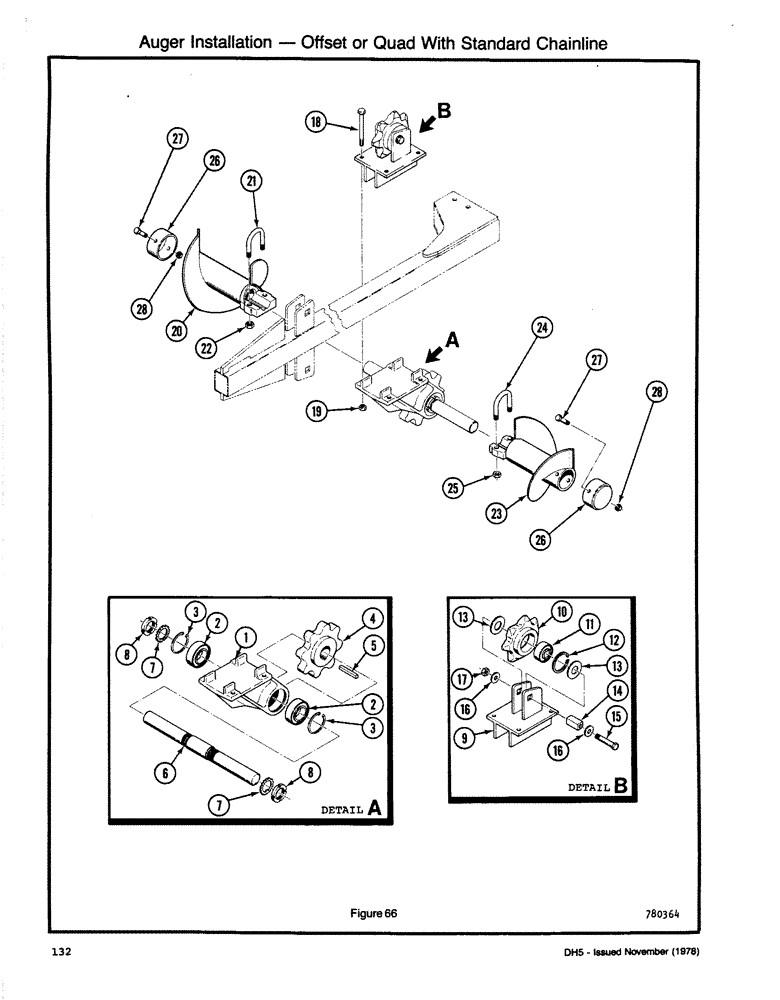

Запчасти Case DH5 (132) - AUGER INSTALLATION - OFFSET OR QUAD WITH STANDARD CHAINLINE (89) - TOOLS

H631887

SHAFT ASSEMBLY - Auger

1шт.

1

H219253

HOUSING

CASTING - Auger Shaft

1шт.

2

H747394

BEARING,55.6mm ID x 100mm OD x 33.4mm W

2шт.

3

A55435

SNAP RING,3.938", Int, #393

Ring, Snap, 3.938", Int, #393

2шт.

4

H99135

DRIVE SPROCKET

SPROCKET

1шт.

5

H99150

KEY

- Square (1/2 x 2 3/8)

1шт.

6

H219410

SHAFT

1шт.

7

192-311

BEARING WASHER,Bearing, W-11

WASHER - Retainer

2шт.

8

131-1037

BEARING LOCK NUT,Bearing, 2.1654" Bore

NUT - Bearing

2шт.

H531277

FRONT IDLER

IDLER ASSEMBLY

1шт.

9

H532366

AUGER

BRACKET - Mounting

1шт.

H531251

PINION

SPROCKET ASSEMBLY

1шт.

10

H115683

DRIVE SPROCKET

SPROCKET

1шт.

11

H747139

BALL BEARING

BEARING

1шт.

12

H33837

RING

- Retainer

1шт.

13

H117606

WASHER

- Boom Idler

2шт.

14

H251033

BOOM

SHAFT

1шт.

15

113-627

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

1шт.

16

195-108

WASHER,5/8"

- Wrought (5/8)

2шт.

17

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

1шт.

18

113-630

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- NC HH (5/8 x 6)

4шт.

19

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

4шт.

20

H634543

AUGER - R/H

1шт.

21

H226282

U-BOLT

1шт.

22

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L

2шт.

23

H634550

AUGER - L/H

1шт.

24

H226282

U-BOLT

1шт.

25

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L

2шт.

26

H570507

CYLINDER END CAP

CAP

2шт.

27

113-647

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- NC HH (5/8 x 5)

2шт.

28

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

2шт.
