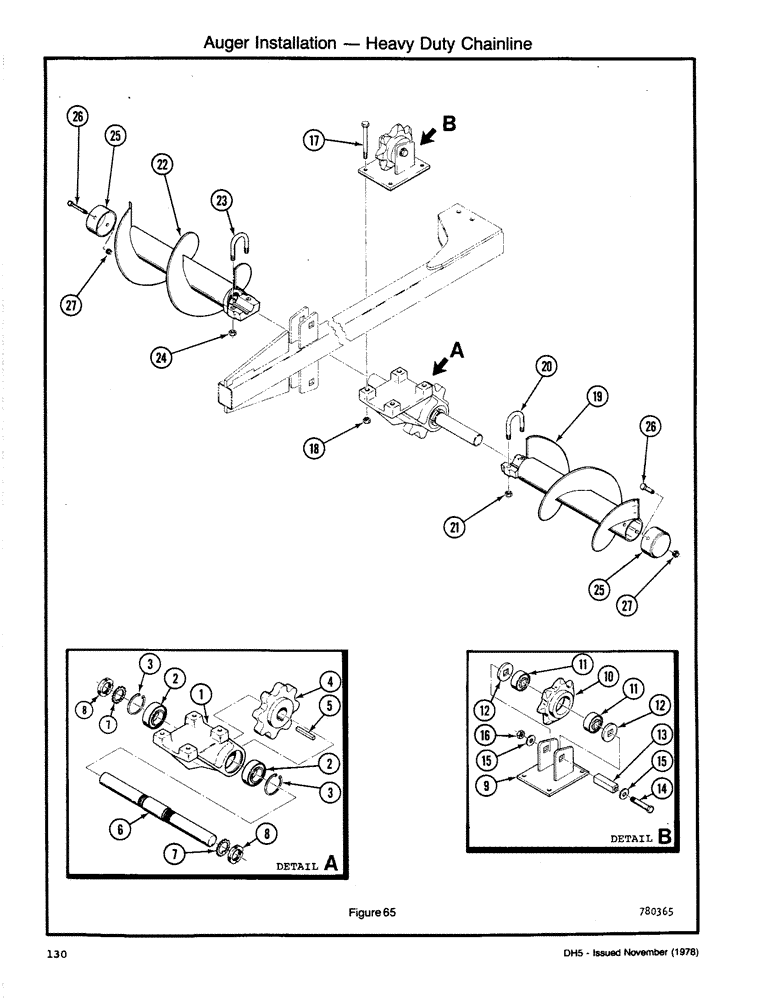

Запчасти Case DH5 (130) - AUGER INSTALLATION - HEAVY DUTY CHAINLINE (89) - TOOLS

H569327

AUGER

SHAFT ASSEMBLY - Auger

1шт.

1

H219253

HOUSING

1шт.

2

H747394

BEARING,55.6mm ID x 100mm OD x 33.4mm W

2шт.

3

A55435

SNAP RING,3.938", Int, #393

Ring, Snap, 3.938", Int, #393

2шт.

4

H99226

DRIVE SPROCKET

SPROCKET

1шт.

5

H99150

KEY

- Square (1/2 x 2 3/8)

1шт.

6

H219410

SHAFT

1шт.

7

192-311

BEARING WASHER,Bearing, W-11

WASHER - Retainer

2шт.

8

131-1037

BEARING LOCK NUT,Bearing, 2.1654" Bore

NUT - Bearing

2шт.

H569582

BRACKET

IDLER - Assembly

1шт.

9

H569574

BRACKET

- Mounting

1шт.

H544171

SPROCKET ASSY.

SPROCKET ASSEMBLY

1шт.

10

H132761

DRIVE SPROCKET

SPROCKET

1шт.

11

H747139

BALL BEARING

BEARING

2шт.

12

H136663

SPACER

2шт.

13

H251025

BOOM

SHAFT

1шт.

14

113-643

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

1шт.

15

195-108

WASHER,5/8"

- Wrought (5/8)

1шт.

16

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

1шт.

17

113-630

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- NC HH (5/8 x 6)

4шт.

18

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

4шт.

19

H567982

AUGER

- L/H

1шт.

20

H226282

U-BOLT

1шт.

21

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

2шт.

22

H567990

AUGER

- R/H

1шт.

23

H226282

U-BOLT

1шт.

24

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

2шт.

25

H570507

CYLINDER END CAP

CAP

2шт.

26

113-647

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- NC HH (5/8 x 5)

2шт.

27

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

2шт.
