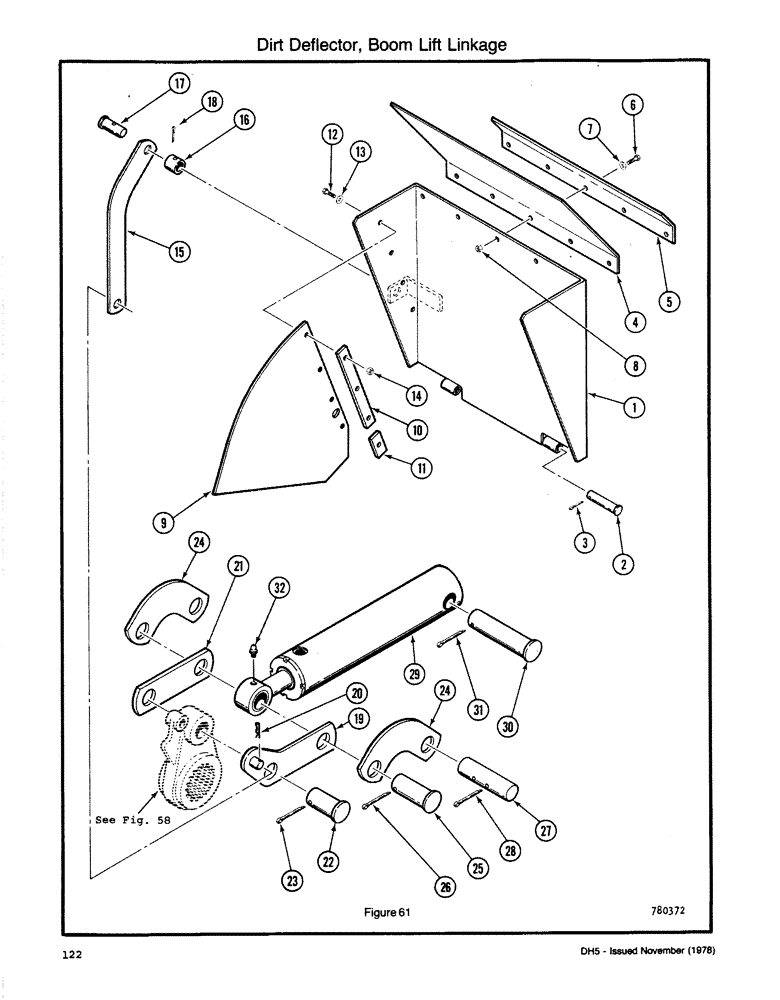

Запчасти Case DH5 (122) - DIRT DEFLECTOR, BOOM LIFT LINKAGE (89) - TOOLS

1

H621599

DEFLECTOR

- Dirt

1шт.

2

H126102

AXLE PIN

PIN - Clevis (3/8 x 2 7/8)

2шт.

3

132-340

COTTER PIN,5/32" x 3/4"

5/32" x 3/4"

2шт.

4

H328344

FLAP

- Dirt

1шт.

5

H328336

STRAP

PLATE - Dirt Flap

1шт.

6

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

5шт.

7

195-521

WASHER,5/16", SAE

- Flat (5/16)

5шт.

8

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC Hex C/L

5шт.

9

H356873

FLAP

- Deflector

1шт.

10

H356865

BAR

- Flap (Long)

1шт.

11

H356857

BAR

- Flap (Short)

1шт.

12

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

13

195-521

WASHER,5/16", SAE

- Flat (5/16)

4шт.

14

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC Hex C/L (5/16)

4шт.

15

H328245

LINK

1шт.

16

H333286

SPACER

1шт.

17

H333294

PIN

1шт.

18

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

19

H621615

LINK

1шт.

20

A70250

PIN

HAIRPIN

1шт.

21

H114116

DRAG LINK

LINK - Straight

1шт.

22

H114959

AXLE PIN

PIN - Clevis (1 1/4 x 3 1/16)

1шт.

23

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

1шт.

24

H114108

DRAG LINK

LINK - Curved

2шт.

25

H114975

AXLE PIN

PIN - Clevis (1 1/4 x 3 3/4)

1шт.

26

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

1шт.

27

H150144

AXLE PIN

PIN

1шт.

28

132-306

COTTER PIN,3/16" x 1 3/4"

PIN, SPLIT (COTTER), 3/16" x 1 3/4"

2шт.

29

CYLINDER ASSY - Boom Lift (See Figure 124)

1шт.

30

H114983

AXLE PIN,31.72mm OD x 163.51mm L

PIN - Clevis (1 1/4 x 6 1/4)

1шт.

31

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

1шт.

32

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - Grease

1шт.
