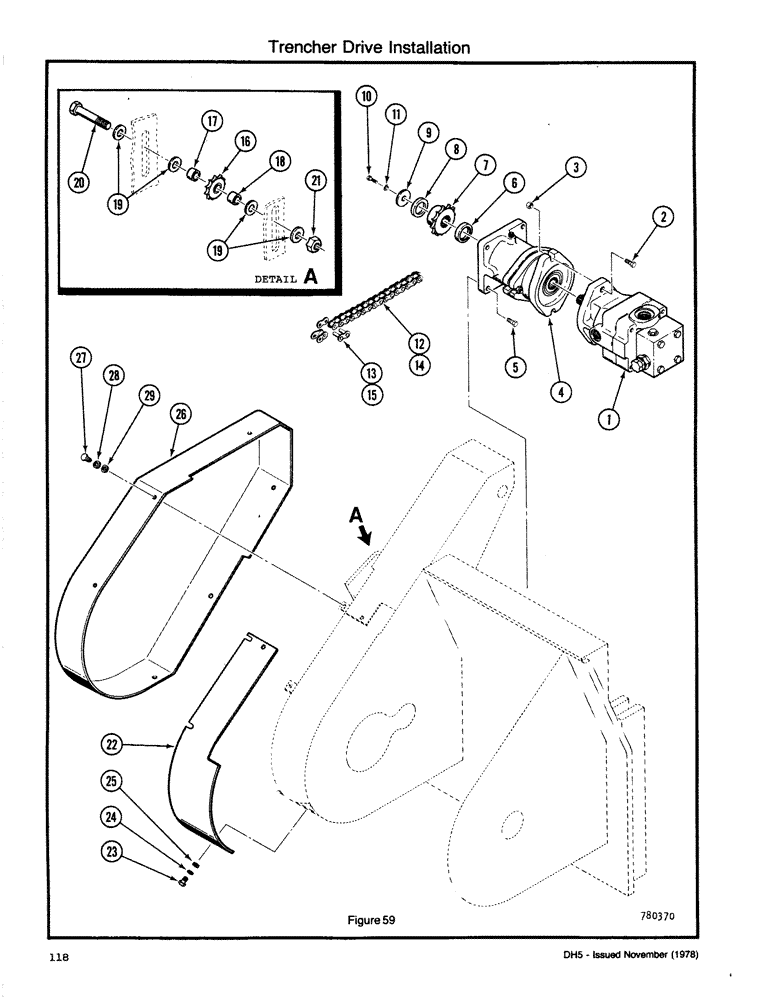

Запчасти Case DH5 (118) - TRENCHER DRIVE INSTALLATION (89) - TOOLS

1

HYDRAULIC MOTOR ASSEMBLY - Trencher (See Figure 112)

1шт.

2

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

3

131-1182

LOCK NUT,1/2"-13, GA

NUT - NC Hex C/L (1/2)

2шт.

4

GEAR HEAD ASSEMBLY (See Fig. 111)

1шт.

5

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

131-1182

LOCK NUT,1/2"-13, GA

NUT - NC Hex C/L (1/2)

4шт.

6

H348581

SPACER

- Inside

1шт.

7

H331272

DRIVE SPROCKET

SPROCKET

1шт.

8

H333260

SPACER

1шт.

9

H333278

WASHER

- Special

1шт.

10

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

12

H757963

CHAIN (CE)

CHAIN - Drive (ASA #80 - 62 Pitches)

1шт.

13

60961

DRAG LINK

LINK - Connector (ASA #80)

1шт.

14

B17138

CHAIN (AG)

CHAIN - Drive (ASA #80 - 6 Pitches)

1шт.

15

60961

DRAG LINK

LINK - Connector (ASA #80)

1шт.

16

H747436

DRIVE SPROCKET

SPROCKET - Idler

1шт.

17

H348599

SPACER

- Idler (0.62 long)

1шт.

18

H368274

SPACER

- Idler (0.77 long)

1шт.

19

195-545

WASHER,3/4", SAE

- Flat (3/4)

4шт.

20

113-710

BOLT,Hex, 3/4" - 10 x 4", Gr 5

1шт.

21

131-1131

LOCK NUT,3/4"-10, GA

NUT - NC Hex C/L (3/4)

1шт.

22

H621623

COVER

1шт.

23

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- NC HH (3/4 x 1)

3шт.

24

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.

25

195-521

WASHER,5/16", SAE

- Flat (3/4)

3шт.

26

H328187

COVER

- Chain

1шт.

27

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- NC HH (3/4 x 1)

7шт.

28

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

7шт.

29

195-521

WASHER,5/16", SAE

- Flat (3/4)

7шт.
