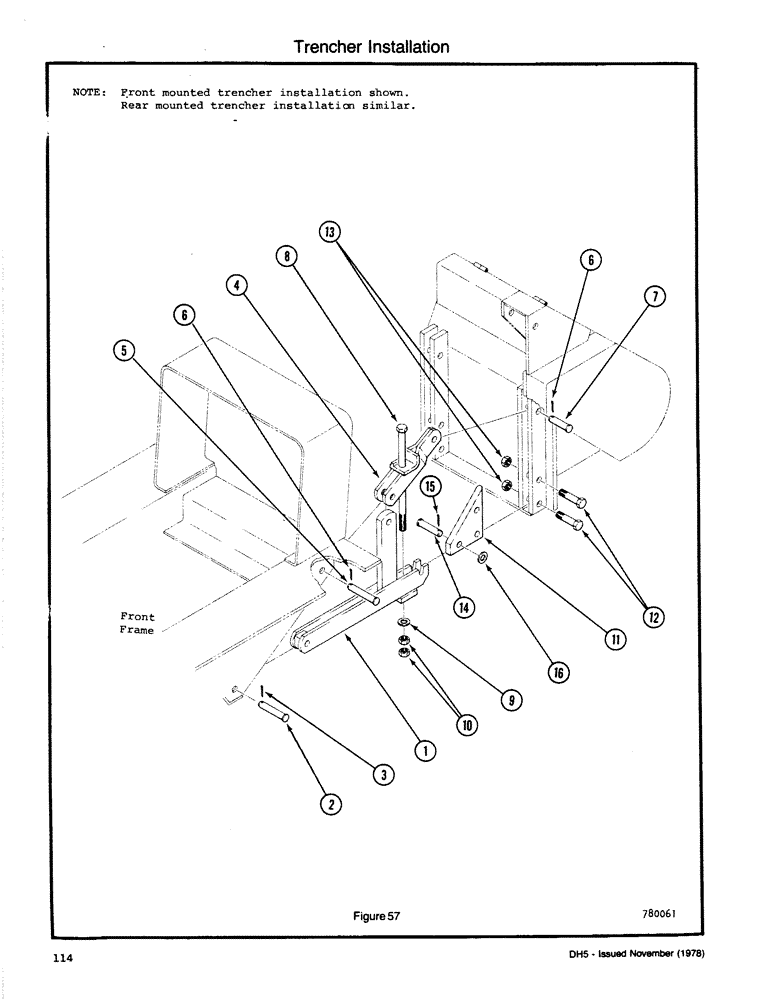

Запчасти Case DH5 (114) - TRENCHER INSTALLATION (89) - TOOLS

1

H629444

HITCH ASSY

BRACKET - Hitch

2шт.

2

H56606

AXLE PIN,30.16mm OD x 142.08mm L

PIN - Clevis (1 x 5 1/4)

2шт.

3

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

2шт.

4

H629642

DRAG LINK

LINK - Top

2шт.

5

H56606

AXLE PIN,30.16mm OD x 142.08mm L

PIN - Clevis (1 x 5 1/4)

2шт.

6

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

4шт.

7

H70623

AXLE PIN

PIN - Clevis (1 x 3 1/2)

2шт.

8

H351783

BOLT - Mounting (1 x 20)

2шт.

9

195-553

WASHER,1", SAE

- Flat (1)

2шт.

10

131-380

LOCK NUT,1"-8, GA

NUT - NC Hex C/L (1)

4шт.

11

H344267

LUG - Lower

2шт.

12

113-926

BOLT,Hex, 1" - 8 x 4", Gr 5

- NC HH (1 x 4)

4шт.

13

131-380

LOCK NUT,1"-8, GA

NUT - NC Hex C/L (1)

4шт.

14

H143974

CLEVIS COUPLING

PIN - Clevis (1 x 2 7/8)

2шт.

15

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

2шт.

16

195-553

WASHER,1", SAE

- Flat (1)

2шт.
