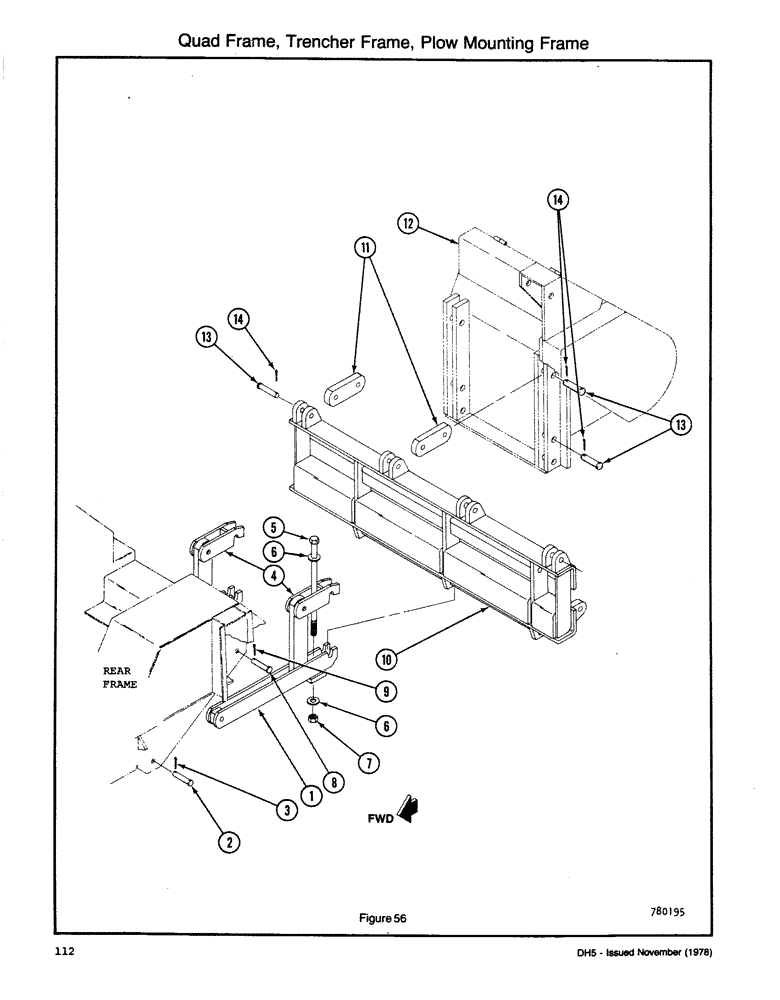

Запчасти Case DH5 (112) - QUAD FRAME, TRENCHER FRAME, PLOW MOUNTING FRAME (89) - TOOLS

1

H629444

HITCH ASSY

BRACKET ASSEMBLY - Hitch

2шт.

2

H56606

AXLE PIN,30.16mm OD x 142.08mm L

PIN - Clevis (1 x 5 1/4)

2шт.

3

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

2шт.

4

H629840

LINK

ASSEMBLY

2шт.

5

H346635

BOLT

NC HH (1 x 18) (Gr 5)

2шт.

6

195-553

WASHER,1", SAE

- Flat (1)

4шт.

7

131-380

LOCK NUT,1"-8, GA

NUT NC HH C/L (1)

2шт.

8

H56606

AXLE PIN,30.16mm OD x 142.08mm L

PIN - Clevis (1 x 5 1/4)

2шт.

9

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

2шт.

10

H623595

FRAME ASSEMBLY - Quad

1шт.

11

H346098

LINK

2шт.

12

H621631

FRAME ASSEMBLY - Trencher

1шт.

13

H70623

AXLE PIN

PIN - Clevis (1 x 3 1/2)

6шт.

14

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

6шт.
