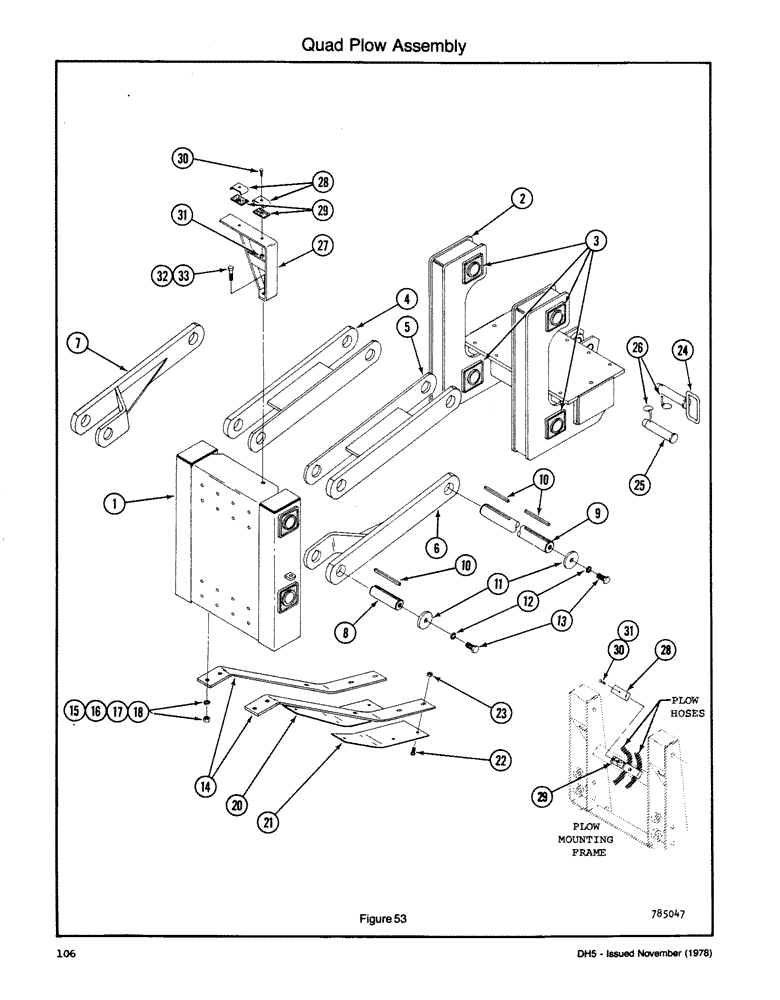

Запчасти Case DH5 (106) - QUAD PLOW ASSEMBLY (89) - TOOLS

1

H604348

FRAME ASSY - Trunnion (includes item 3)

1шт.

2

H637223

FRAME ASSY - Rear

1шт.

3

H235069

SEAL

BUSHING

4шт.

4

H578997

LINK ASSY.

LINK ASSY - Upper Left

1шт.

5

H579003

LINK ASSY.

LINK ASSY - Upper Right

1шт.

Ref #4 & #5 - Replaced by H664789. (An extra keyway was added so this could be used for either side) 06/21/96

1шт.

6

H635268

LINK ASSY - Lower Left

1шт.

7

H635276

LINK ASSY - Lower Right

1шт.

8

H195222

SHAFT

6шт.

9

H292573

SHAFT

1шт.

10

H237461

KEY

(1/4 sq x 4 11/16)

8шт.

11

H196626

WASHER

- Retainer

14шт.

12

195-25

WASHER,3/8"

- Lock (5/8)

14шт.

13

113-606

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

14шт.

14

H291146

SPRING

SHOE SPRING

2шт.

15

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

4шт.

16

195-541

WASHER,5/8", SAE

- Flat (5/8)

4шт.

17

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

18

131-1130

LOCK NUT,5/8"-11, GA

NUT NC Hex C/L (5/8)

4шт.

20

H149674

SHOE (ASSY)

SHOE - Left

1шт.

21

H149666

SHOE (ASSY)

SHOE - Right

1шт.

22

164-152

HEX SOC SCREW,Flat Hd, 3/8" - 24 x 1"

SCREW NF Csk Hd (3/8 x 1)

6шт.

23

131-1326

JAM NUT,Jam, 3/8"-24

NUT NF Hex C/L (3/8)

6шт.

24

H531830

AXLE PIN

PIN

1шт.

25

H79293

AXLE PIN,28.5mm OD x 128.59mm L

PIN

1шт.

26

A30338

PIN

- Klik

2шт.

27

H629295

BRACKET

ASSY - Plow Hose

1шт.

28

H231878

CLAMP

- Hose

4шт.

29

H231860

COVER

PAD - Clamp

4шт.

30

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

4шт.

31

131-1182

LOCK NUT,1/2"-13, GA

NUT NC Hex C/L (1/2)

4шт.

32

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

33

113-1182

NUT NC Hex C/L (1/2)

1шт.
