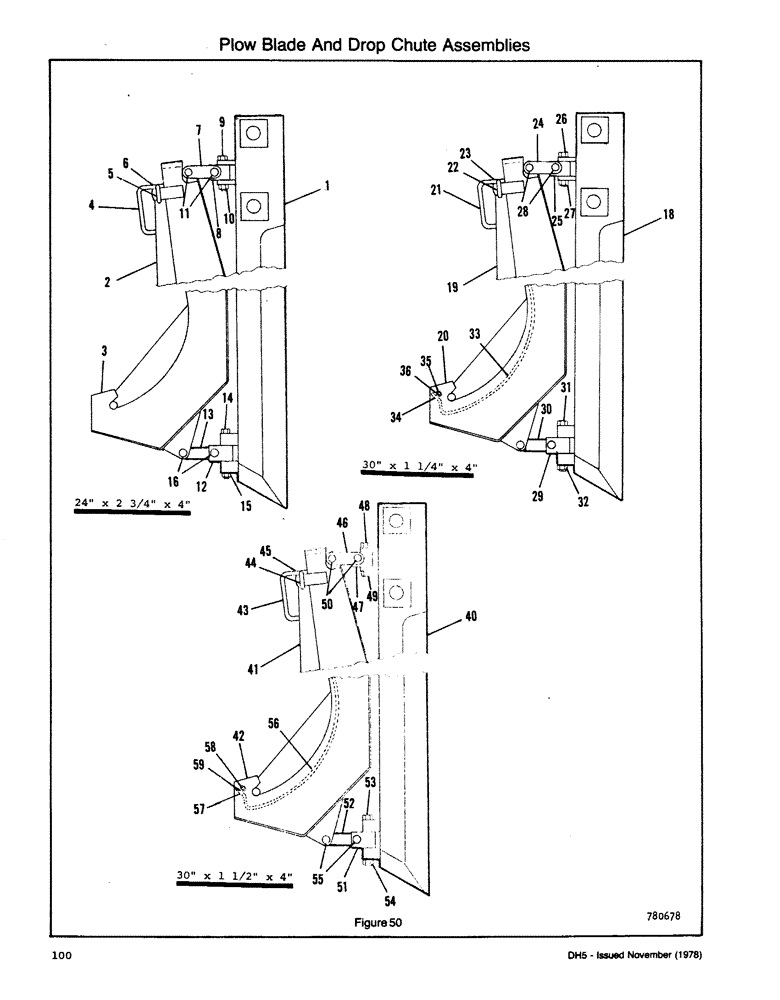

Запчасти Case DH5 (100) - PLOW BLADE AND DROP CHUTE ASSEMBLIES (89) - TOOLS

1

H552463

HALF BLADE

Blade Asm - 24" x 2 3/4" x 4"

1шт.

2

H576900

NO LONGER SERVICED

Drop Chute Asm - 24" x 2 3/4"

1шт.

3

H576884

CHUTE (DOWNWARD)

Drop Chute

1шт.

4

H552430

DOOR SEAL

Drop Chute Gate

1шт.

5

H552489

PIN

Gate Pin

1шт.

6

A70250

PIN

Hair Pin

1шт.

7

H171660

CONNECTOR, ELEC

Upper Link

2шт.

8

H172650

BLOCK ASSY.

Upper Link Block

1шт.

9

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

10

131-165

NUT,1/2"-13, GA

Nut (1/2" NC- Lock)

1шт.

11

H172668

RIVET

- Upper Link

2шт.

12

H171702

BLOCK

Lower Link Block

1шт.

13

H171694

CONNECTOR, ELEC

Lower Link

1шт.

14

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

HHCS (5/8" x 4" NC)

1шт.

15

230-41110

LOCK NUT,5/8"-11, GA

Nut (5/8" NC - Lock)

1шт.

16

H171710

RIVET

- Lower Link

2шт.

18

H545012

BLADE

Asm - 30" x 1 1/4" x 4"

1шт.

19

H575373

CHUTE ASSY.

Drop Chute Asm - 30" x 1 1/4"

1шт.

20

H546390

CHUTE ASSY.

Drop Chute

1шт.

21

H546382

GUIDE

Drop Chute Gate

1шт.

22

H537787

AXLE PIN

Gate Pin

1шт.

23

A70250

PIN

Hair Pin

1шт.

24

H133157

DRAG LINK

Upper Link

2шт.

25

H133744

BLOCK

Upper Link Block

1шт.

26

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

27

131-178

LOCK NUT,Prev Torque, Hex, 3/8" - 16, Gr A

Nut (3/8" NC - Lock)

1шт.

28

H133793

RIVET

- Upper Link

2шт.

29

H133736

JOINT TURNING

Lower Link Block

1шт.

30

H133165

DRAG LINK

Lower Link

1шт.

31

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1шт.

32

131-1308

JAM NUT,Jam, 1/2"-13

Nut (1/2" NC - Lock)j

1шт.

33

H133785

RIVET

Gate Extension

1шт.

34

164-152

HEX SOC SCREW,Flat Hd, 3/8" - 24 x 1"

FHCS (3/8 x 1" NF - Allen HD)

2шт.

35

129-123

NUT,3/8"-24, G5

2шт.

36

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

40

H545855

BLADE

Asm - 30" x 1 1/2" x 4"

1шт.

41

H575316

CHUTE ASSY.

Drop Chute Asm - 30" x 1 1/2"

1шт.

42

H546572

CHUTE ASSY.

Drop Chute

1шт.

43

H546564

GUIDE

Drop Chute Gate

1шт.

44

H537787

AXLE PIN

Gate Pin

1шт.

45

A70250

PIN

Hair Pin

1шт.

46

H133157

DRAG LINK

Upper Link

2шт.

47

H133751

BLOCK

Upper Link Block

1шт.

48

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

49

131-178

LOCK NUT,Prev Torque, Hex, 3/8" - 16, Gr A

Nut (3/8" NC - Lock)

1шт.

50

H133801

RIVET

- Upper Link

2шт.

51

H133736

JOINT TURNING

Lower Link Block

1шт.

52

H133165

DRAG LINK

Lower Link

1шт.

53

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1шт.

54

131-1308

JAM NUT,Jam, 1/2"-13

Nut (1/2" NC - Jam - Lock)

1шт.

55

H133785

RIVET

- Lower Link

2шт.

56

H152330

Gate Extension

1шт.

57

164-152

HEX SOC SCREW,Flat Hd, 3/8" - 24 x 1"

FHCS (3/8" x 1" NF - Allen HD)

2шт.

58

129-123

NUT,3/8"-24, G5

2шт.

59

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
