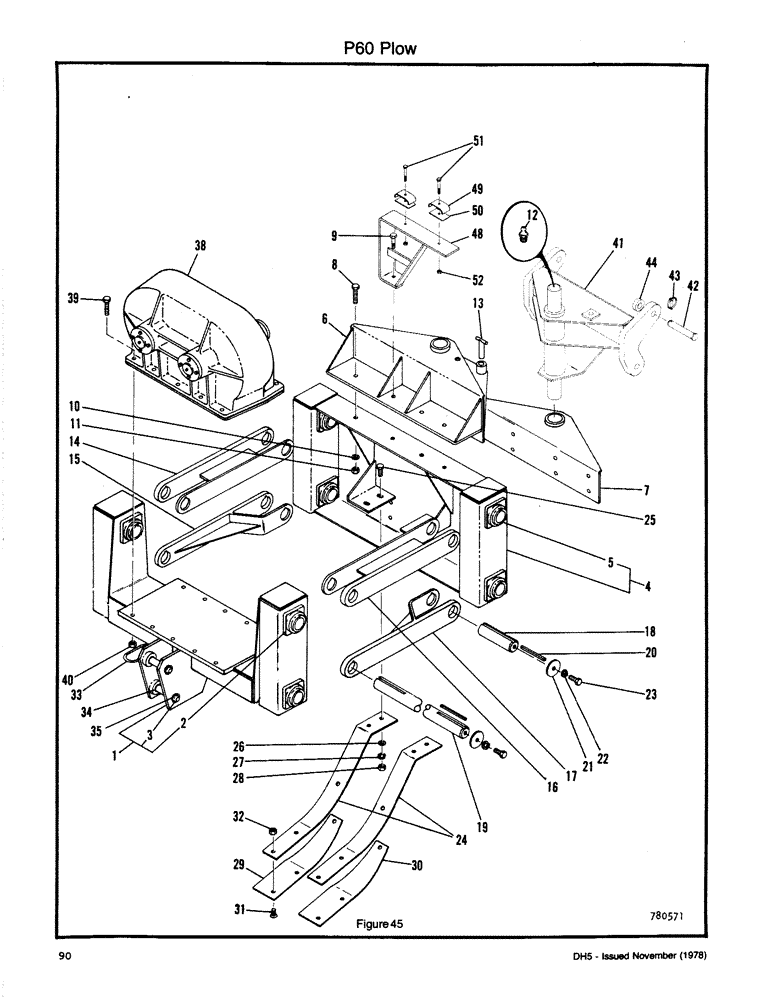

Запчасти Case DH5 (090) - P60 PLOW (89) - TOOLS

1

H562538

FRAME ASSY

Gear Case Mounting Assy

1шт.

2

H235069

SEAL

Rubber Joint

4шт.

Rubber joints should be ordered in complete sets. In the event this is not done, then they must be replaced in pairs. For example, if the rear upper left joint is replaced, then the rear upper right must be replaced.

1шт.

3

H131102

BUSHING

4шт.

4

H562520

Trunion Frame Assy

1шт.

5

H235069

SEAL

Rubber Joint

4шт.

Rubber joints should be ordered in complete sets. In the event this is not done, then they must be replaced in pairs. For example, if the rear upper left joint is replaced, then the rear upper right must be replaced.

1шт.

5

H560284

Upper Pivot Bracket

1шт.

7

H560276

PIVOT

Lower Pivot Bracket

1шт.

8

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

15шт.

9

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

10

195-533

WASHER,1/2", SAE

- Flat (1/2)

16шт.

11

131-1182

LOCK NUT,1/2"-13, GA

Nut - NC Hex C/L (1/2)

16шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - Grease

2шт.

13

H565259

PIN

Lock Pin

1шт.

14

H574236

LINK ASSY.

Upper Link - Left

1шт.

15

H574210

LINK ASSY.

Lower Link - Left

1шт.

16

H574244

LINK ASSY.

Upper Link - Right

1шт.

17

H574228

LINK ASSY.

Lower Link - Right

1шт.

18

H195222

SHAFT

6шт.

19

H195230

SHAFT

1шт.

20

H237461

KEY

(1/4" sq x 4 11/16")

8шт.

21

H196626

WASHER

Retainer Washer

14шт.

22

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

14шт.

23

113-606

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

14шт.

24

H142927

VALVE SPRING

Shoe Spring

2шт.

25

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

4шт.

26

195-541

WASHER,5/8", SAE

- Flat (5/8)

4шт.

27

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

28

280374

NUT,Hex, 5/8" - 11, Gr 5

C/L 5/8"-11, G5

4шт.

29

H149674

SHOE (ASSY)

Spring Shoe

1шт.

30

H149666

SHOE (ASSY)

Spring Shoe

1шт.

31

164-152

HEX SOC SCREW,Flat Hd, 3/8" - 24 x 1"

Screw - Cap NF C/Sink HD (3/8 x 1)

6шт.

32

131-1326

JAM NUT,Jam, 3/8"-24

Nut - NF Hex C/L (3/8)

6шт.

33

H531830

AXLE PIN

Loop Pin

1шт.

34

H79293

AXLE PIN,28.5mm OD x 128.59mm L

Pin (1 1/8" x 4 7/8")

1шт.

35

A30338

PIN

Klik Pin

2шт.

38

Gear Case Assy (See Figure 114)

1шт.

39

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

10шт.

40

131-1182

LOCK NUT,1/2"-13, GA

Nut - NC Hex C/L (1/2)

10шт.

41

H625384

Frame Assy - Trunion

1шт.

42

H56606

AXLE PIN,30.16mm OD x 142.08mm L

Pin - Clevis (1 x 5 1/4)

2шт.

43

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

2шт.

44

H35840

Doubler

2шт.

48

H629295

BRACKET

Assy - Plow Hose

1шт.

49

H231878

CLAMP

- Hose

2шт.

50

H231860

COVER

Pad - Clamp

2шт.

51

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

2шт.

52

131-1182

LOCK NUT,1/2"-13, GA

Nut - NC Hex C/L (1/2)

2шт.

53

H173161

Plate - Serial

1шт.

54

168-59

SCREW,Type U, Rnd Hd, #2 x 1/4"

- Drive

2шт.
