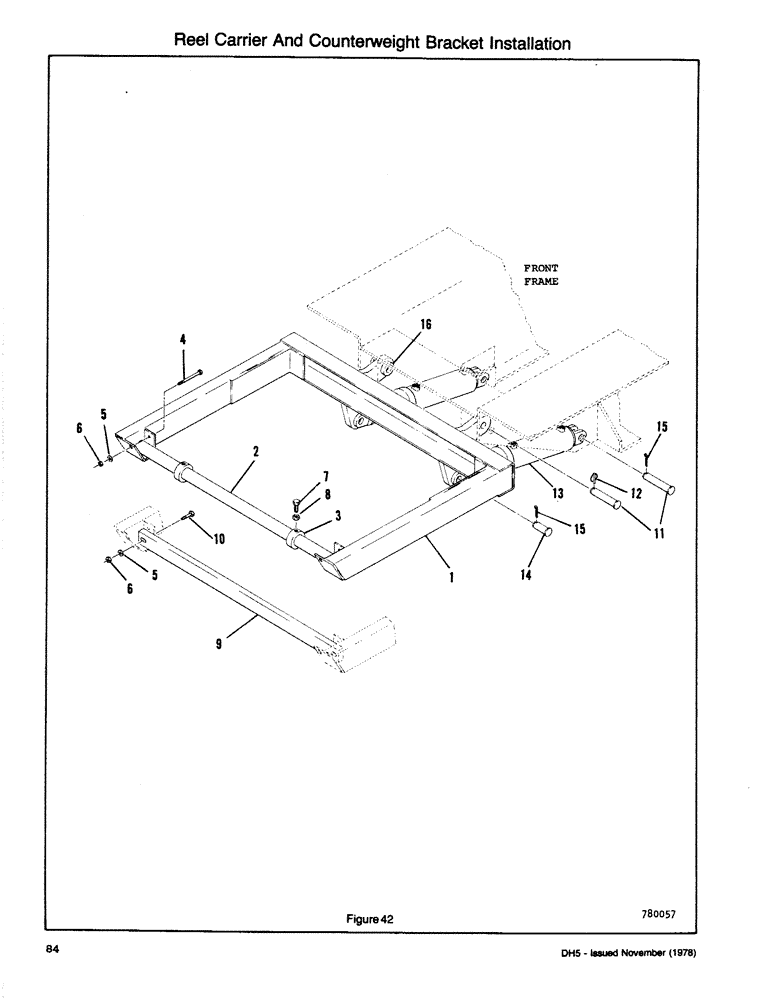

Запчасти Case DH5 (084) - REEL CARRIER AND COUNTERWEIGHT BRACKET INSTALLATION (89) - TOOLS

1

H625566

Carrier W/A - Reel

1шт.

2

H342501

SPINDLE

- Reel Carrier

1шт.

3

H342519

COLLAR

- Reel Carrier

2шт.

4

113-259

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

2шт.

5

195-525

WASHER,3/8", SAE

4шт.

6

230-4216

LOCK NUT,3/8"-16, GA

Nut - NC Hex C/L (3/8")

4шт.

7

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

8

425-1410

JAM NUT,Jam, 5/8"-11, G5

- NC Hex Jam (5/8")

2шт.

9

H346981

BAR

- Weight Kit (Used when weight is wanted w/out reel)

1шт.

10

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

11

H56606

AXLE PIN,30.16mm OD x 142.08mm L

Pin - Clevis (1" x 5 1/4")

4шт.

12

A30338

PIN

- Klik

2шт.

13

SEEFIG.126

Cyl - Lift (Lantex #934-01) See figure 26 for parts list

2шт.

14

H65011

AXLE PIN,25.3mm OD x 75.41mm L

Pin - Clevis (1" x 2 5/8")

2шт.

15

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

4шт.

16

H35840

Doubler

2шт.
